Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the PARTS LIST and/or HARDWARE LIST shown below.
Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person; this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not tighten screws or bolts until the assembly is completed.
3. To level the chairs or table, before tightening all the screws, the chairs or table must be place on a flat
surface and then tighten the screws.
4. Please put all parts on a non-abrasive floor before assembly and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
PARTS LIST
NO.
COMPONENT
A
CHAIR BACK
B
SEAT FRAME
C
FRONT LEG
CUSHION
D
SEAT
All manuals and user guides at all-guides.com
Assembly Instructions
SKETCH
QTY.
4 PCS
4 PCS
8 PCS
4 PCS
MADE IN VIETNAM
ITEM NO. D1701-548

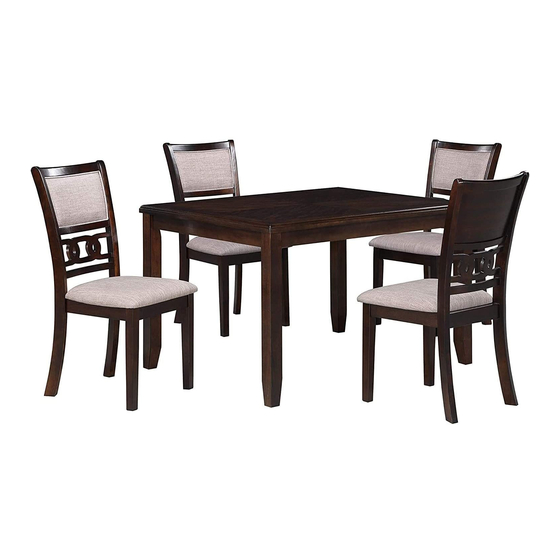

GIA 5PC 48" DINING TABLE & 4 CHAIRS
HARDWARE LIST
NO.
COMPONENT
FLAT WASHER
1
5/16" DIA.
SPRING
2
WASHER
5/16" DIA.
NUT
3
5/16" DIA.
ALLEN
WRENCH
4
5/16" DIA.
SHORT BOLT
5
1/4" x 1 3/4"
LONG BOLT
6
1/4" x 3"
WOOD SCREW
7
#8 x 1 1/2"
SKETCH
QTY.
44 PCS
44 PCS
16 PCS
1 PC
12 PCS
16 PCS
24 PCS
PAGE: 1 OF 3
