New Classic Furniture BRECKENRIDGE L3183-25 Assembly Instruction

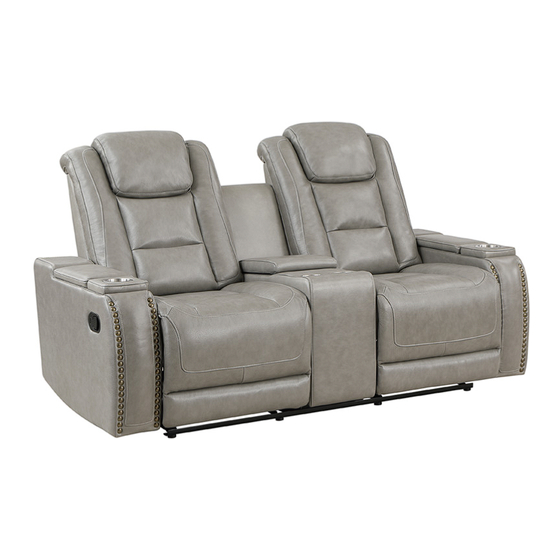

Console loveseat w/ dual recliners

Download this manual

Thank you for purchasing this quality product. Be sure to check all packing materials

count all items and compare with the parts list and/or hardware list shown below. It

is recommended to have two people during assembling and to remove the backs and base

of the furniture out from the box.

Please follow the drawings below to assemble the item

NO.

STEP 1

Open the zipper at the bottom of the seat (D) to find the console backrest (B).

Assembly Instruction

Item No.:L3183-25

DESCRIPTION:BRECKENRIDGE CONSOLE LOVESEAT W/

DUAL RECLINERS

PARTS LIST

SKETCH

All images shown are for illustration purpose only.

Actual product may vary due to product enhancement.

Created date:7/17/2023

QTY

DESCRIPTION

Need help?

Do you have a question about the BRECKENRIDGE L3183-25 and is the answer not in the manual?

Page 1 Assembly Instruction Item No.:L3183-25 DESCRIPTION:BRECKENRIDGE CONSOLE LOVESEAT W/ DUAL RECLINERS Thank you for purchasing this quality product. Be sure to check all packing materials count all items and compare with the parts list and/or hardware list shown below. It is recommended to have two people during assembling and to remove the backs and base of the furniture out from the box.
Page 2 Step 2 Open the console storage to find the bolt (E) to assemble the console backrest (B). Step 3 Unzip the back of the console base and insert the bolts (E) upward through the pre-drilled holes and align with the holes on the bottom of the console back (B). Tighten each bolt (E) by turning it counter-clock wise until the the console back (B) is secured in place.
