Z:\BADRUL\NEW CLASSIC\GUIDELINES\NCF Logo.jpg
Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose inside the carton during shipment. Identify and count all items and compare with
the parts list and/or hardware list shown below.
Cautions :
(1) Do not fully-tighten the nut or nut bolts initially until all nuts or bolt is ready assembled.
(To avoid causing damages to the thread, do not over-tighten the nuts or bolts.)
(2) Keep all hardware part out of reach of children.
PARTS LIST
NO
DESCRIPTION
A
CHAIR BACK
SEAT FRAME
B
WITH CUSHION
FRONT LEFT
SIDE FACING
C
(LSF) LEG
FRONT RIGHT
SIDE FACING
D
(RSF) LEG
LSF Leg (C) has a
L
sticker
for identification.
ASSEMBLY INSTRUCTIONS
Item No :

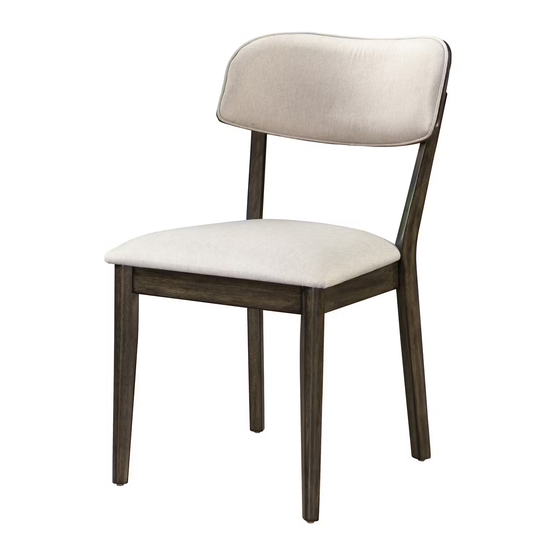

REX OPEN BACK DINING CHAIR
(2PCS PER CARTON)
SKETCH
2 PCS
2 PCS
2 PCS
2 PCS
WEIGHT CAPACITY
0
1
2
3
0
1
A
D1078-20
QTY
NO
DESCRIPTION
SHORT BOLT
1/4'' X 1 3/8''
1
WITH LOCK WASHER
& WASHER
MEDIUM BOLT
1/4'' X 2 3/8''
2
WITH LOCK WASHER
& WASHER
LONG BOLT
1/4'' X 3 3/16''
3
WITH LOCK WASHER
& WASHER
4
ALLEN KEY
250 pounds (per seat)
4
5
6
7
2
3
B
D
C
R
L
HARDWARE LIST
SKETCH
8
9
10
4
RSF Leg (D) has a
sticker
for identification.
R
Created Date : 09/09/2024
QTY
4 PCS
8 PCS
8 PCS
1 PC
Page 1 of 3
Advertisement
Related Manuals for New Classic Furniture REX D1078-20
Summary of Contents for New Classic Furniture REX D1078-20
- Page 1 ASSEMBLY INSTRUCTIONS Item No : D1078-20 Z:\BADRUL\NEW CLASSIC\GUIDELINES\NCF Logo.jpg REX OPEN BACK DINING CHAIR (2PCS PER CARTON) Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose inside the carton during shipment. Identify and count all items and compare with the parts list and/or hardware list shown below.
- Page 2 STEP 1 : Assemble the seat frame with cushion (B) with the chair back (A) using the Allen Key (4) with hardware (1). STEP 2 : Attach the seat frame with cushion (B) with the back legs of the chair back (A) by using the Allen Key (4) with hardware (3).
- Page 3 STEP 3 : Assemble the legs (C & D) with the seat frame with cushion (B) by using Allen key (4) with hardware (2). **Attention: DO NOT TIGHTEN THE BOLTS. STEP 3 : To level the chair, stand the chair up on a flat surface and tighten all the bolts by using Allen Key (4).
