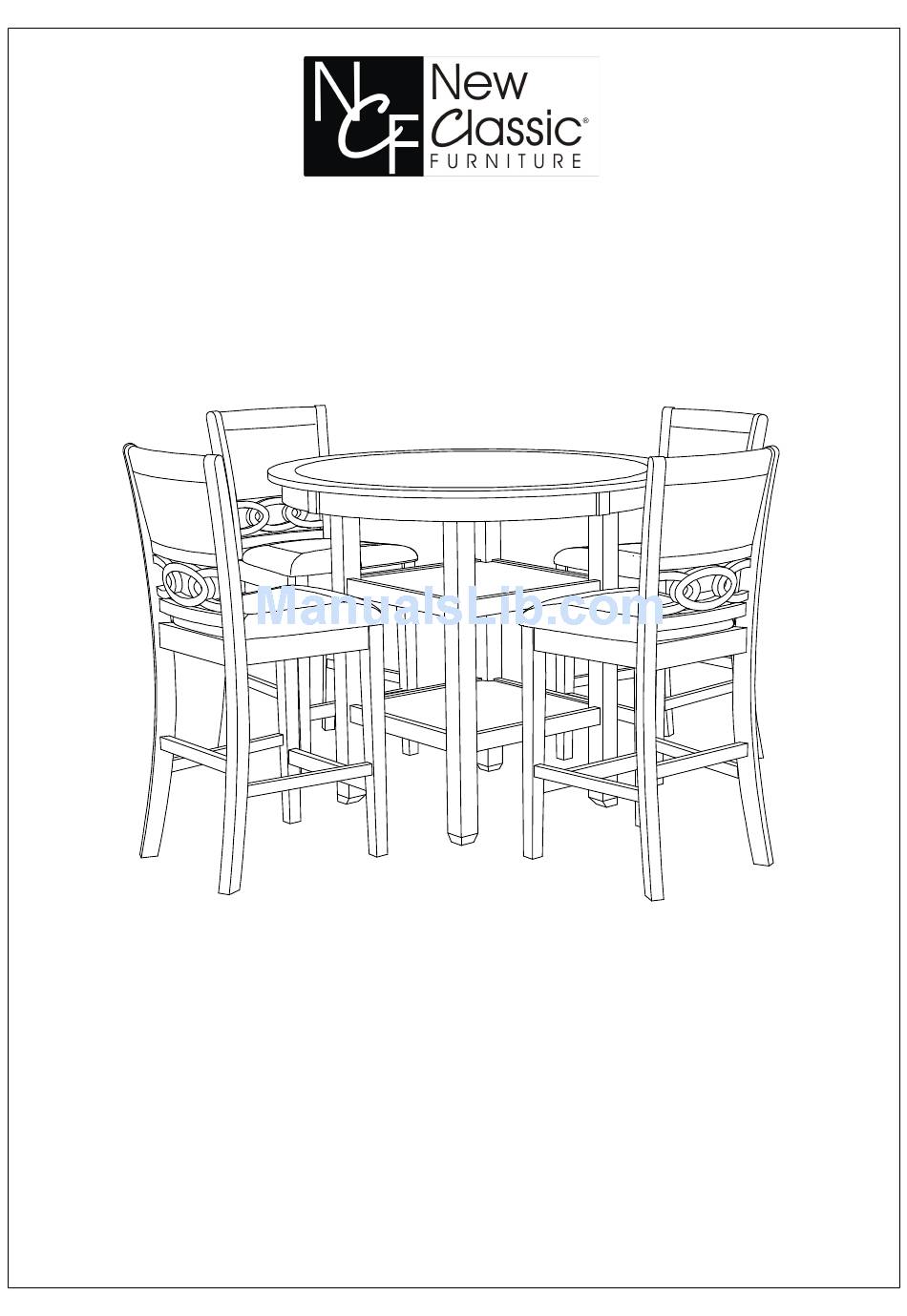

ASSEMBLY INSTRUCTIONS
ITEM NO. D1701-52S

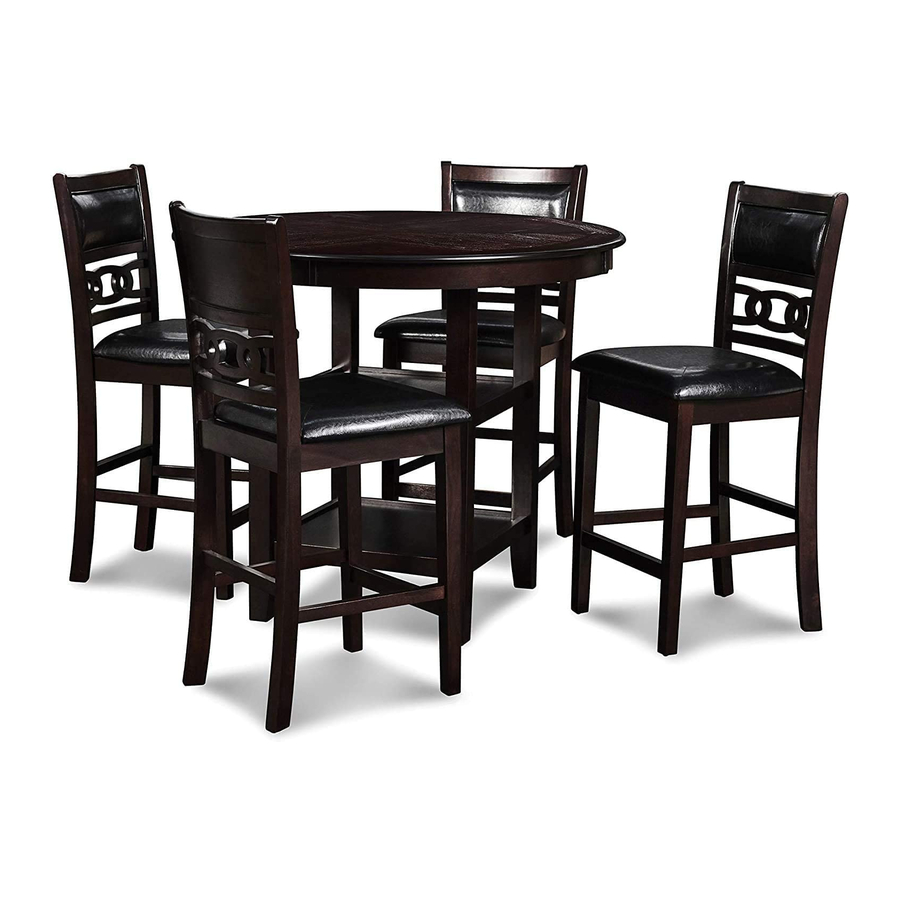

GIA COUNTER TABLE
DIA COUNTER CHAIR (SET INCLUDES 4 CHAIRS)
This page lists all the contents included in the Box. Please take time to identify the
hardware as well as the individual components to this product. As you unpack and
prepare for assembly, place the contents on a carpeted or padded area to protect
them from damage.
C l e a n i n g & C a r e
Treat the surface with care, clean it with a dry or damp soft cloth.
Do not use abrasive cleaners. Hardware may be loosen over time.
Periodically check that all connections are tight.
A Phillips screwdriver is necessary for assembly.
1
Advertisement
Table of Contents
Related Manuals for New Classic Furniture D1701-52S
Summary of Contents for New Classic Furniture D1701-52S
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO. D1701-52S GIA COUNTER TABLE DIA COUNTER CHAIR (SET INCLUDES 4 CHAIRS) This page lists all the contents included in the Box. Please take time to identify the hardware as well as the individual components to this product. As you unpack and prepare for assembly, place the contents on a carpeted or padded area to protect them from damage.
- Page 2 GENERAL INFORMATION, TIPS & TRICKS 1. Please read the assembly instructions prior to assembling this product. 2. To avoid damages, assemble this product on a non-abrasive surface such as a carpet. 3. Make sure all bolts and nuts are tightly fastened before the product is used. 4.
- Page 3 TABLE PART LIST A. Table Top B. Table Legs C. Table Shelves QTY: 1 PC QTY: 4 PCS QTY: 2 PCS TABLE HARDWARE LIST 1. ALLEN BOLTS 2. SPRING WASHERS 3. FLAT WASHERS 4. ALLEN WRENCH SIZE: 5/16" x 2 1/2" SIZE: 5/16"...
- Page 4 TABLE ASSEMBLY INSTRUCTIONS STEP 1 Attach the Table Shelves (C) to the Table Legs (B) by using Allen Bolts (1), Spring Washers (2) and Flat Washers (3). Do not tighten all bolts at this step. STEP 2 Attach the Table Legs (B) to the Table Shelves (C) by using Allen Bolts (1), Spring Washers (2) and Flat Washers (3).
- Page 5 TABLE ASSEMBLY INSTRUCTIONS STEP 3 Turn the assembly upright. Place the Table Top (A) down to the assembly unit as shown. Ensure the Table Legs ( B) are secured to the Table Top (A) STEP 4 Attach the Table Legs (B) to the Table Top (A) using Allen Bolts (1), Spring Washers (2) and Flat Washers (3). Make sure the table is level, and tighten all bolts by using Allen Wrench (4).
- Page 6 CHAIR PART LIST A. Back Legs B. Seat Frames C. Cushion Seats QTY: 4 PCS QTY: 4 PCS QTY: 4 PCS D. Front Legs (Left - Right) E. Side Stretchers (Left - Right) F. Front Stretchers QTY: 8 PCS QTY: 8 PCS QTY: 4 PCS CHAIR HARDWARE LIST 1.
- Page 7 CHAIR ASSEMBLY INSTRUCTIONS STEP 1 Put the Back Leg (A) and the Seat Frame (B) upside down on the soft and smooth surface. Then insert Long Bolts (6), Short Bolts (5), Spring Washers (2), and Flat Washers (1) into the predrilled holes of each corner, by using Allen Wrench (4).
- Page 8 CHAIR ASSEMBLY INSTRUCTIONS STEP 3 First, insert the Front Stretcher (F) into the holes of the Front Legs (D) by using Wood Screws (7). Attach the Front Legs (D) to the Side Stretchers (E) and the corner of Seat Frame (B). Insert Flat Washers (1), Spring Washers (2), and Nuts (3), by using Allen Wrench (4).
- Page 9 CHAIR ASSEMBLY INSTRUCTIONS STEP 5 Turn the assembled chair to the upright position carefully. Make sure the chair is level, and then securely tighten all bolts at this stage. Assembly is now completed. Printed in Vietnam...
