Thank you for purchasing this quality product. Be sure to check all packing materials
carefully for small parts, which may have come loose during shipment. Identify and count
all items and compare with the parts list shown below. It is recommended to have two
people during assembling and to remove the back and base of the furniture out from the box.
Please follow the drawings below to assemble the item
NO.
A
Seat
B
Backrest
C
Left Wing
D
Right Wing
ASSEMBLY INSTRUCTIONS
HARLEY COLLECTION
ITEM : U4220
DESCRIPTION :
Parts List
DESCRIPTION
C
All images shown are for illustration purpose only.
Actual product may vary due to product enhancement.

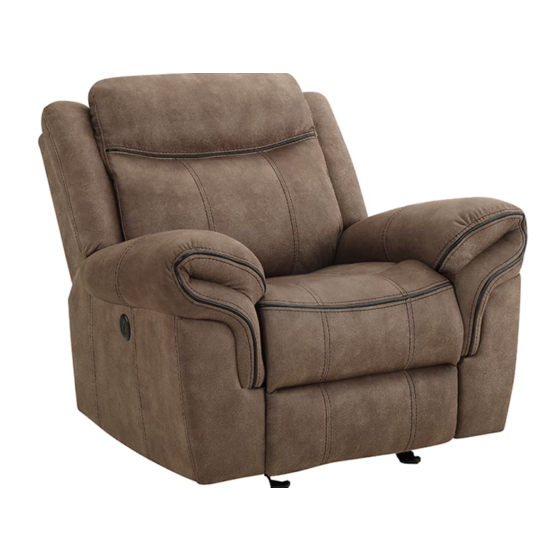

HARLEY GLIDER RECLINER-LT BWN
B
Page 1 of 2
SKETCH
Q'TY
1 PC
1 PC
1 PC
1 PC
D
A
Advertisement
Table of Contents
Related Manuals for New Classic Furniture HARLEY Series
Summary of Contents for New Classic Furniture HARLEY Series
- Page 1 ASSEMBLY INSTRUCTIONS HARLEY COLLECTION ITEM : U4220 DESCRIPTION : HARLEY GLIDER RECLINER-LT BWN Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 ASSEMBLY INSTRUCTIONS HARLEY COLLECTION ITEM : U4220 DESCRIPTION : HARLEY GLIDER RECLINER-LT BWN Step 2: Step 1: Attach the Left Wing (C) and Right Wing Attach Backrest (B) to the Seat (A) (D) to Backrest (B) Step 3: Open the footrest by pulling the handle ON-PULL All images shown are for illustration purpose only.
