Vitality® Benches and Racks
VBR6802 Smith Machine | Assembly and Use Guide
Assembly Requirements
Precor recommends at least three (3) people for this installation. DO NOT
attempt assembly by yourself.
When assembling the equipment, we recommend you:
• Follow the assembly instructions in order.
• Unpack the box and assemble the equipment close to where you plan to use it.
• Locate the equipment at least 40 inches (1 meter) away from walls or furniture on
either side of the equipment, and 40 inches (1 meter) away from objects behind or
in front of the equipment.
• Assemble the equipment on a solid, flat surface so it remains level and stable.
• DO NOT move equipment without assistance.
Required Tools
• Philips screwdriver
• Metric hex wrench set
• Metric hex bit set
• Torque wrench 75 ft-lb (100 N-m)
• 6 ft (2 m) step ladder rated Type I
• Open-end wrench set (metric)
Required to remove foot caps:
5 mm hex key (or long 5 mm hex bit), 13 mm open-end wrench
Hardware Kit
Name
1 1
Right side frame
2 2
Left side frame
3 3
Top cross frame
4 4
Rear cross frame
5 5
Cable assembly
6 6
Counterweight assembly
7 7
Pulley
Frame Assembly
1. Have your assistants stand up the
rear cross frame to each side with 4
washers (Figure 2). Partially tighten.
2. While your assistants support the frames, use a ladder to place the
frame into position. Secure with 4
(Figure 2). Square the frame and hand-tighten. Do not fully tighten until instructed
to do so.
20 20
16 16
2 2
Figure 2. Frame assembly
©2024 Precor Incorporated | Vitality Benches and Racks
Qty Name
8 8
1 Pulley stop plate
9 9
1 Lower left hook assembly
10 10
1 Lower right hook assembly
11 11
1 Shock pad
12 12
2 Weight bar
13 13
2 Spring clamp
14 14
2 Bumper
1 1 right and left side frames. Connect the
2 2
16 16 M12 x 25 mm SHCS and 4 20 20
3 3
16 16 M12 x 25 mm SHCS and 4 20 20 13 mm washers
3 3
4 4
16 16 20 20
Left side frame
Qty
2
2
1
2
1
2
6
Attach Weight Bar and Lower Handles
4 4
1. Using your ladder, remove the 2 M6 x 16 mm socket head cap screws, washers,
13 mm
and plate from the top front of each side frame (Figure 3) to expose sliding bar.
2. Lift up each sliding bar high enough for your assistants to slide the sleeves of
top cross
the 12 12 weight bar from the bottom upwards onto the sliding bars (ensure that the
J-hooks face downward) (Figure 4). Have an assistant hold the weight bar during
steps 3 and 4.
3. Have your other assistant slide a
by the 9 9 lower left and
hooks facing down) (Figure 4). The shock pad will rest on top of each lower hook
assembly.
4. Lower the sliding bars back into the foot frames. Set the lower hook assemblies
into the lowest opening. Have the assistant supporting the weight bar set the bar's
hooks into an upper opening to hold it in place.
5. Replace the plates and fasteners removed in step 1. Fully tighten the M6
fasteners to 7.7 ft-lb (10.5 N-m) of torque.
6. Attach a spring clamp
1 1
7. Adjust the frame pieces and then tighten all M12 fasteners to 65 ft-lb (88 N-m)
of torque.
Figure 3.
VBR6802 Smith Machine | Assembly Guide | P/N 306955-101| 13 Sept 2024 | Page 1 of 2
Top cross frame
Weight bar
Shock pads
Lower hook assemblies

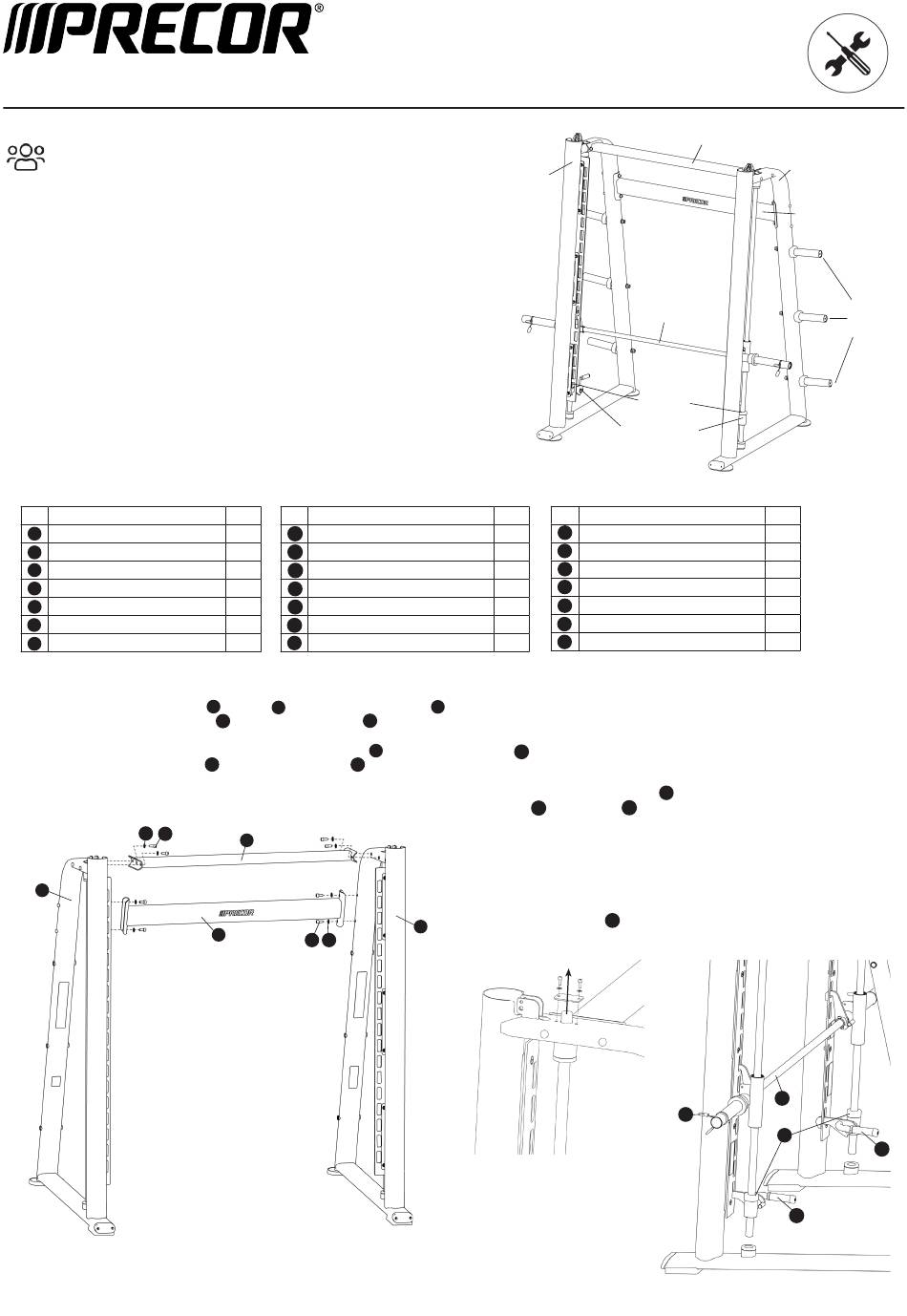

Figure 1. VBR6802 Smith Machine
Name
15 15
Weight storage horn
16 16
M12 x 25 mm socket head cap screw (SHCS)
17 17
M12 x 20 mm socket head cap screw (SHCS)
18 18
M10 x 55 mm socket head cap screw (SHCS)
19 19
Flat washer, 13 mm
20 20
Flat washer, 11 mm
21 21
M10 lock nut
11 11
shock pad up each sliding bar followed
10 10 right hook assemblies (handles on inside and
13 13 to each end of the weight bar (Figure 4).
13 13
Right side frame
Rear cross frame
Weight
storage
horns
Qty
6
8
6
2
14
4
2
12 12
11 11
9 9
10 10
Figure 4.
