Precor Vitality Series Assembly Manual

Vitality™ Series Selectorized Biceps Curl/Triceps
Extension Assembly Guide
Assembly requirements
Precor recommends at least two people for this installation. DO NOT attempt
assembly by yourself.
When assembling the equipment, we recommend you:
Follow the steps in the order listed in this assembly guide.
l
Unpack the box and assemble the equipment close to where you plan to use it.
l
Locate the equipment at least 40 inches (1 meter) away from walls or furniture on either side
l
of the equipment, and 40 inches (1 meter) away from objects behind or in front of the
equipment.
Assemble the equipment on a solid, flat surface, so that it remains level and stable.
l
Required tools
Adjustable wrench
l l
Torque wrench
l l
Rubber mallet
l
Equipment dimensions: W42.5 x D52 x H60 inches/W107.9 x D132 x H152.4 cm (in-use) - W42.5 x
D60.1 x H60 inches/W107.9 x D152.6 x H152.4 cm (idle)
Hex wrench sets, metric and standard, with extensions
Socket wrench set, metric and standard, with extensions

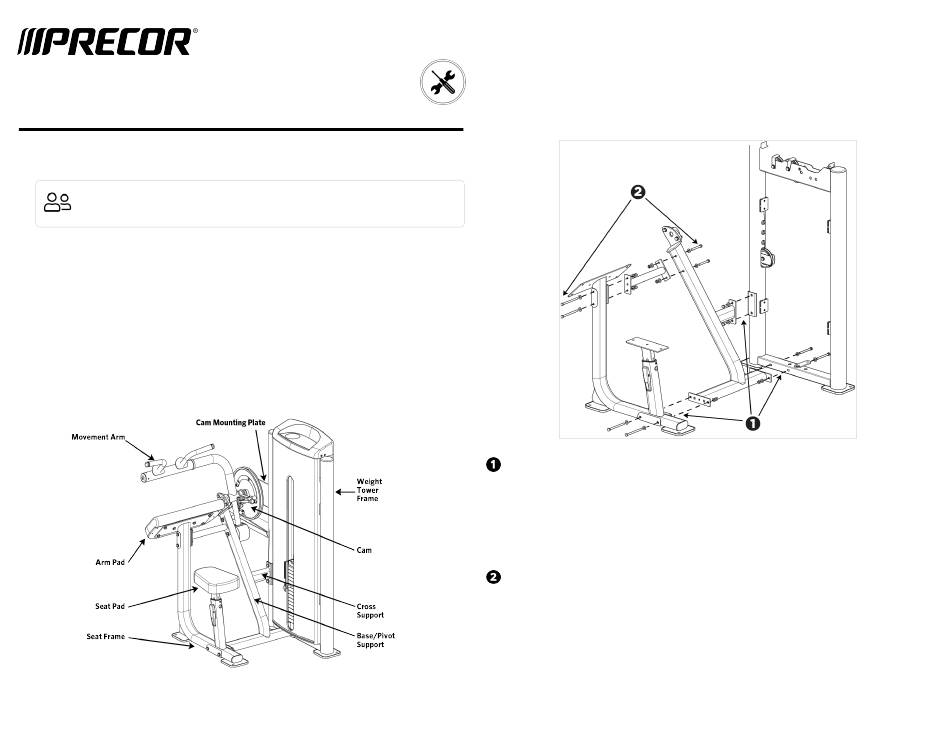

Fig. 1
Begin Assembly
CAUTION: Do not fully tighten fasteners until instructed to do so.
The equipment is designed to be freestanding; however, it can be bolted to the floor for extra
stability. Precor highly recommends that the equipment be bolted to the floor to reduce the risk of
toppling the equipment due to improper use. Since floor construction varies, please consult a
professional building engineer for proper fastening.
Assemble frame
1. Attach the base/pivot support to the weight tower frame and seat frame using:
2 – M10 x 100 mm hex head bolts (lower pivot support to weight tower frame)
2 – M10 x 25 mm hex head bolts (upper pivot support to weight tower frame)
2 – M10 x 135 mm hex head bolts (base/pivot support to seat frame)
10 – 11 mm flat washers
4 – M10 nylon lock nuts
Fully tighten the two fasteners securing the upper pivot support to the weight tower frame.
Partially tighten all other fasteners.
2. Attach the cross support to the weight tower and base/pivot support using:
2 – M10 x 80 mm hex head bolts (cross support to base/pivot support)
2 – M10 x 135 mm hex head bolts (cross support to seat frame)
8 – 11 mm flat washers
4 – M10 nylon lock nuts
Note: Partially tighten the fasteners so that the weight tower frame and seat frame are
stable.
|
©2021 Precor Incorporated VSL Biceps Curl/Triceps Extension
Fig. 2
| | P/N CWR257777-102B ENU | 18 October 2021
Assembly Guide
|
1
