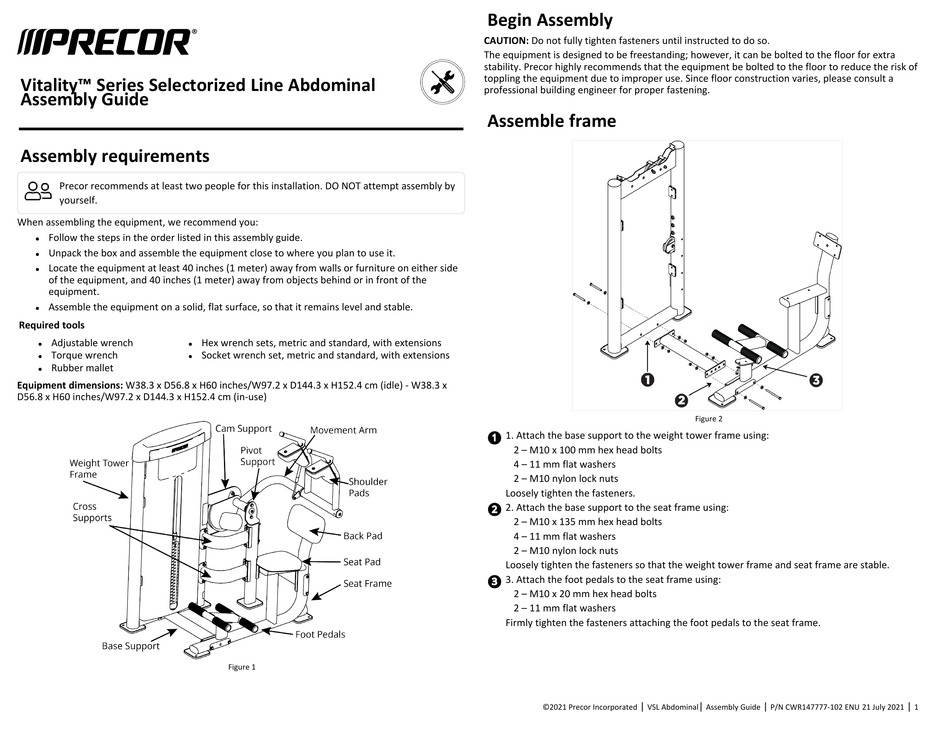

Precor Vitality Series Assembly Manual

Vitality™ Series Selectorized Line Abdominal
Assembly Guide
Assembly requirements
Precor recommends at least two people for this installation. DO NOT attempt assembly by
yourself.
When assembling the equipment, we recommend you:
Follow the steps in the order listed in this assembly guide.
l
Unpack the box and assemble the equipment close to where you plan to use it.
l
Locate the equipment at least 40 inches (1 meter) away from walls or furniture on either side
l
of the equipment, and 40 inches (1 meter) away from objects behind or in front of the
equipment.
Assemble the equipment on a solid, flat surface, so that it remains level and stable.
l
Required tools
Adjustable wrench
l l
Torque wrench
l l
Rubber mallet
l
Equipment dimensions: W38.3 x D56.8 x H60 inches/W97.2 x D144.3 x H152.4 cm (idle) - W38.3 x
D56.8 x H60 inches/W97.2 x D144.3 x H152.4 cm (in-use)
Hex wrench sets, metric and standard, with extensions
Socket wrench set, metric and standard, with extensions
Figure 1
Begin Assembly
CAUTION: Do not fully tighten fasteners until instructed to do so.
The equipment is designed to be freestanding; however, it can be bolted to the floor for extra
stability. Precor highly recommends that the equipment be bolted to the floor to reduce the risk of
toppling the equipment due to improper use. Since floor construction varies, please consult a
professional building engineer for proper fastening.
Assemble frame
1. Attach the base support to the weight tower frame using:
2 – M10 x 100 mm hex head bolts
4 – 11 mm flat washers
2 – M10 nylon lock nuts
Loosely tighten the fasteners.
2. Attach the base support to the seat frame using:
2 – M10 x 135 mm hex head bolts
4 – 11 mm flat washers
2 – M10 nylon lock nuts
Loosely tighten the fasteners so that the weight tower frame and seat frame are stable.
3. Attach the foot pedals to the seat frame using:
2 – M10 x 20 mm hex head bolts
2 – 11 mm flat washers
Firmly tighten the fasteners attaching the foot pedals to the seat frame.
|
©2021 Precor Incorporated VSL Abdominal
Figure 2
| |
Assembly Guide P/N CWR147777-102 ENU 21 July 2021
|
1
