Measuretek WH-B User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
WH-B
User Manual
Contents subject to change without notice
Version 1.0
07/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WH-B and is the answer not in the manual?

Questions and answers

Related Manuals for Measuretek WH-B

Summary of Contents for Measuretek WH-B

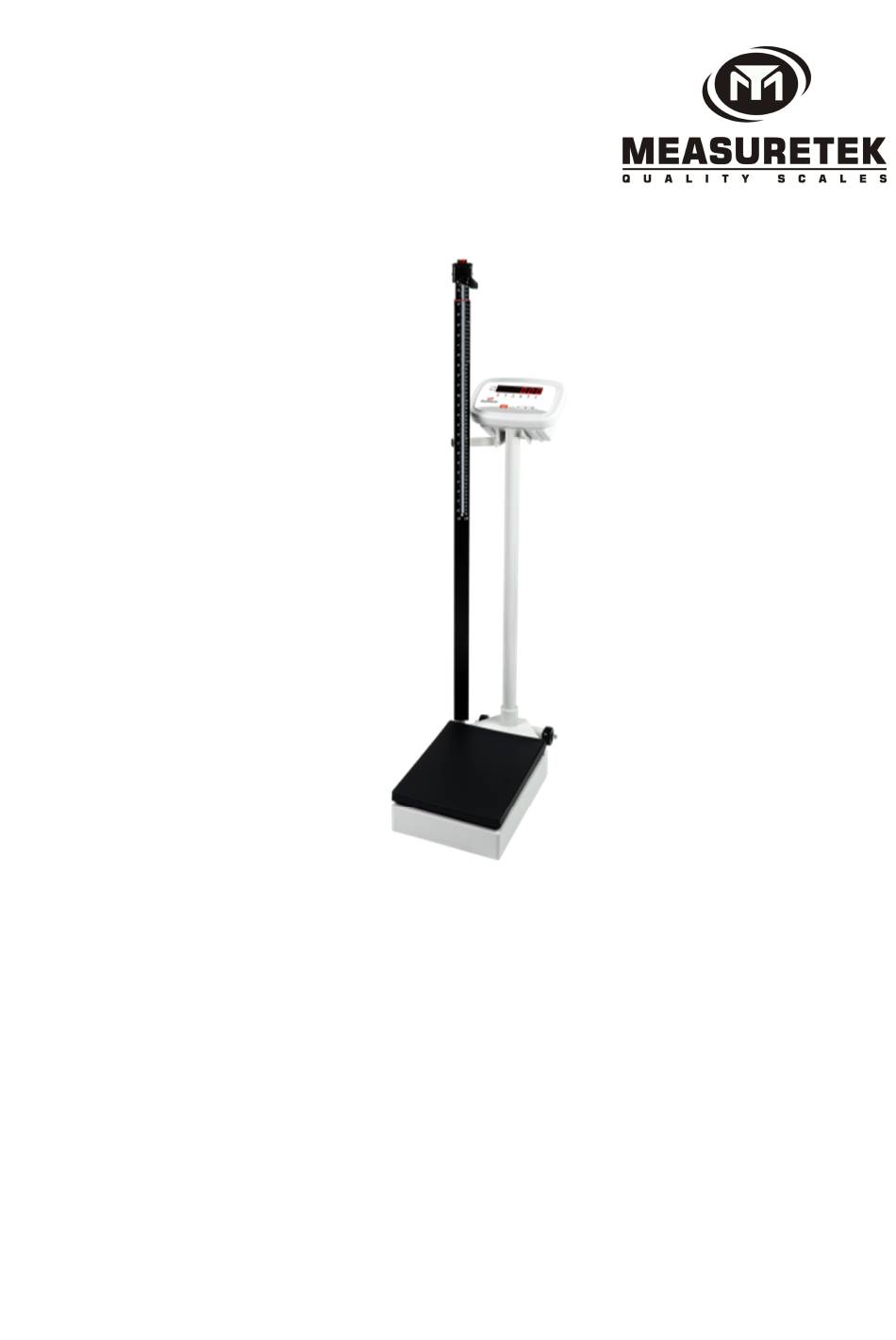

  • Page 1 WH-B User Manual Contents subject to change without notice Version 1.0 07/2017...

  • Page 2: Table Of Contents

    CONTENTS 1. INTRODUCTION ......................1 General Information ..........................1 Specifications ............................1 2. Unpacking and Setup ....................1 Contents ............................... 1 Tools Required ............................ 1 Installation Procedures ........................3 3. OVERVIEW OF CONTROLS AND FUNCTIONS ............7 3.1 Front Display and Key Descriptions ................... 7 3.2 Indicator Display Character Definitions ..................

  • Page 3: Introduction

    1. INTRODUCTION General Information • The WH-B scale is a Digital Physician Weighing Scale with Body Mass Index (BMI) readout. • It is an accurate electronic device with advanced design and stable performance. • It is designed to measure the weight of a person and compute the BMI index once the...

  • Page 4: Installation Procedures

    2. Place the cable (4) through the pillar (3). 3. Insert the 4 screws (2) through the holes on the pillar bracket and secure the bracket to the indicator (1) 4. Make sure the screws are securely tightened. WH-B www.easthigh.com.cn...
  • Page 5 5. Place the cable (4) into the tube support (6) on the scale base. 6. Insert the pillar (3) into the tube support (6). 7. Rotate the pillar to position the indicator (1) in the direction desired, and then secure using the 2 screws (5) into the fixing tube (6). WH-B www.easthigh.com.cn...
  • Page 6 9. Place the indicator cable (4) and the load cell cable (13) together near the hole on the base (16). 10. Plug the two connectors (15) together. 11. Position the connector inside the base (16). 12. The cables should be fixed to the base using the clip provided (14). WH-B www.easthigh.com.cn...
  • Page 7 14. Locate the height rod (7) onto the fixing points (9) of the upper and lower brackets (8) & (12). 15. Secure the bolt and washer to the bracket on the base (10). 16. Tighten the bolt on the upper bracket (9). WH-B www.easthigh.com.cn...

  • Page 8: Overview Of Controls And Functions

    The charge light will be on when the battery is recharging. This indicates when the scale is being used with the AC adapter. ZERO This indicator will be displayed in the left corner when the scale reaches zero. The Net weight is displayed, Tare weight is at zero. WH-B www.easthigh.com.cn...

  • Page 9: Indicator Display Character Definitions

    3.2 Indicator Display Character Definitions WH-B www.easthigh.com.cn...

  • Page 10: Operations

    4.3 MEASURING BODY MASS INDEX (BMI) • Once the height has been determined it is possible to enter the height reading into the display ready for the scale to compute the BMI. WH-B www.easthigh.com.cn...

  • Page 11: Calibration

    Press the [ON/OFF] key to exit the calibration mode at this point or press the [Print/Hold] key to choose a different calibration weight value (50kg, 100kg, 150kg, 200kg, 250kg, 300kg or 100lb, 200lb, WH-B www.easthigh.com.cn...

  • Page 12: User Parameters

    3 = 60 seconds 4 = 120 seconds 0 = No RS232 Function. 1 = Continuously outputs display data. 2 = Output display data when PRINT pressed 3 = Bi-directional communication (the scale receives and executes commands from the HOST device) WH-B www.easthigh.com.cn...

  • Page 13: Rs232 Communications

    (controlling) device. 5.1 The length of the weight field will be 7 digit weight data, one for minus sign, one for decimal point, two for measure unit (e.g. “lb”, “kg”). Units of measure abbreviations are always lower case. WH-B www.easthigh.com.cn...
  • Page 14 Response: <LF> H1H2H3<CR><ETX> (3) Command: Z<CR> (5ah 0dh) Response: Zero function is activated and it returns to current scale status. just like pressing ZERO/ON/OFF button: <LF> H1H2H3<CR><ETX> If ZERO function cannot be activated, it will return to current scale status. WH-B www.easthigh.com.cn...

  • Page 15: Error Message

    There is an error in EEPROM [AL.Er There is an error in calibration [AP.-- The capacity will be displayed Lo.bAt The voltage of batteries or input power is below 5.6V. FULL The capacity has been exceeded by the person standing on the scale. WH-B www.easthigh.com.cn...

  • Page 16: Warning

    • Keep the weighing machine in a dry and clean environment. Do not expose it outdoor or use it in locations near fire, under direct sunshine or with high temperature. • When lifting the height meter, it is suggested to pull it straight along the pipe without using excessive force. WH-B www.easthigh.com.cn...

This manual is also suitable for:

Wh-b-300
