Summary of Contents for Measuretek ACS-SU

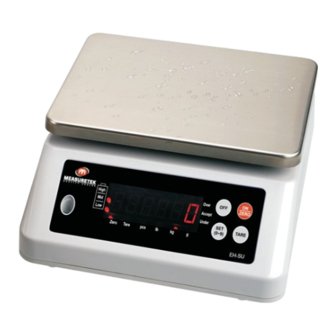

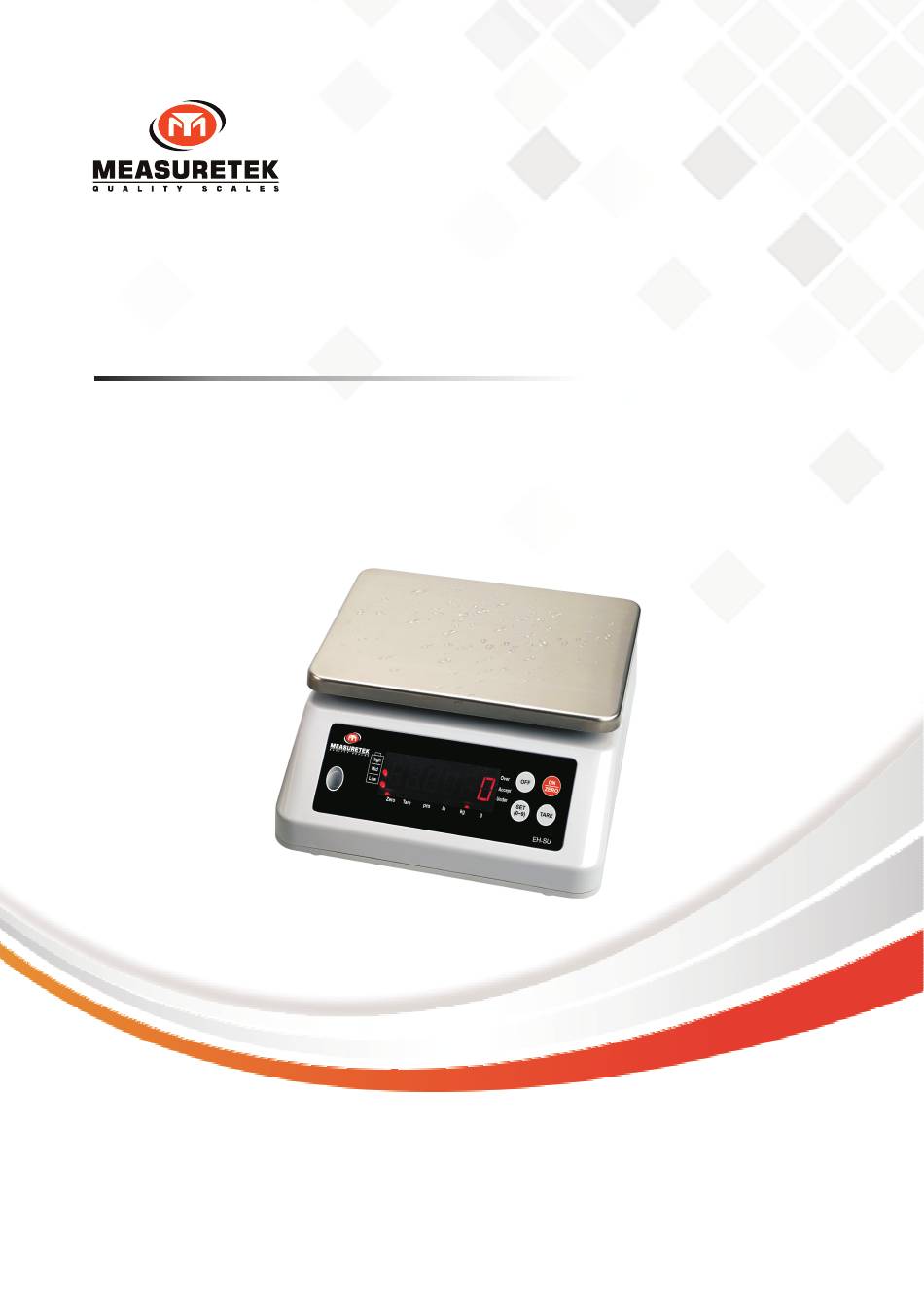

- Page 1 ACS-SU (12R990B - 12R992B) USER MANUAL Contents subject to change without notice Version 1.0 01/2023...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION ........................1 1.1 G ........................... 1 ENERAL NFORMATION 1.2 S ............................1 PECIFICATIONS 1.3 C ..........................2 ONTROL UNCTIONS 2. OPERATIONS ........................... 2 2.1 T ..................... 2 URNING SCALE FF AND EIGHING 2.2 T ..............................2 2.3 C ....................... -
Page 3: Introduction
Over time, the operating time per charge will degrade. If the operating time is no longer acceptable, the battery must be replaced. Avoid using in heavy vibration or heavy airflow conditions. 1.2 Specifications Model ACS-SU-3 ACS-SU-6 ACS-SU-15 Max Capacity 6.6 lb (3 kg) 13.2 lb (6 kg) -
Page 4: Control Functions
Press the TARE key to return the display to zero, eliminating the weight of the container. The TARE light will go off and the ZERO light will be lit. If the ZERO light is not lit, press the ON/ZERO key to zero the scale. ACS-SU www.easthigh.com.cn... -
Page 5: Change Unit Of Measurement
2) The audible tone parameter can be changed from its default within User Setup mode. 2.5 Counting Mode Use this mode to count parts of uniform weight. The indicator determines the quantity based on the average weight of a single part. All parts must be uniform in weight for accurate ACS-SU www.easthigh.com.cn... -
Page 6: Adjust Led Brightness
2) Press the SET/0~9 key till the scale displays "A-oFF", press the TARE key to confirm. 3) Press the SET/0~9 key to change the setting between "y" and "n", press the TARE key to confirm and return to normal weighing mode. Note: n = Disable the auto off function. ACS-SU www.easthigh.com.cn... -
Page 7: Calibration
10) 1/3 full capacity weight will be displayed and followed with an inner code. Put the corresponding weight on the scale, press the TARE key to confirm. 11) 2/3 full capacity weight will be displayed and followed with an inner code. Put the ACS-SU www.easthigh.com.cn... - Page 8 The calibration is finished, and the scale will return to normal weighing mode. Note: If the scale displays "Err-03" during the calibration process, a wrong CAL weight is used. Put the correct weight on the scale for calibration. ACS-SU www.easthigh.com.cn...
-
Page 9: Parameter Setting
Press the SET/0~9 key to See specifications choose the default division setting and press the TARE key to confirm and exit. Dual display mode: d-dP n = Front display only y = Front and rear display ACS-SU www.easthigh.com.cn... -
Page 10: Symbol Definitions
MeasureTek distributor or service center, freight prepaid with prior return authorization, to be repaired or replaced at the manufacturer’s option. MeasureTek’s liability under this warranty is limited to the repair or replacement of the defective product and in no event shall MeasureTek be liable for consequential or indirect damages. - Page 11 MEASURETEK ENTERPRISE LTD. 245 West Beaver Creek Rd.,Unit 6,Richmondhill, On L4B 1L1, Canada Hot Line: 1-844-747-2253 (after-sale service) E-mail: info@easthigh.com.cn www.easthigh.com.cn...
