Summary of Contents for Measuretek PS-101

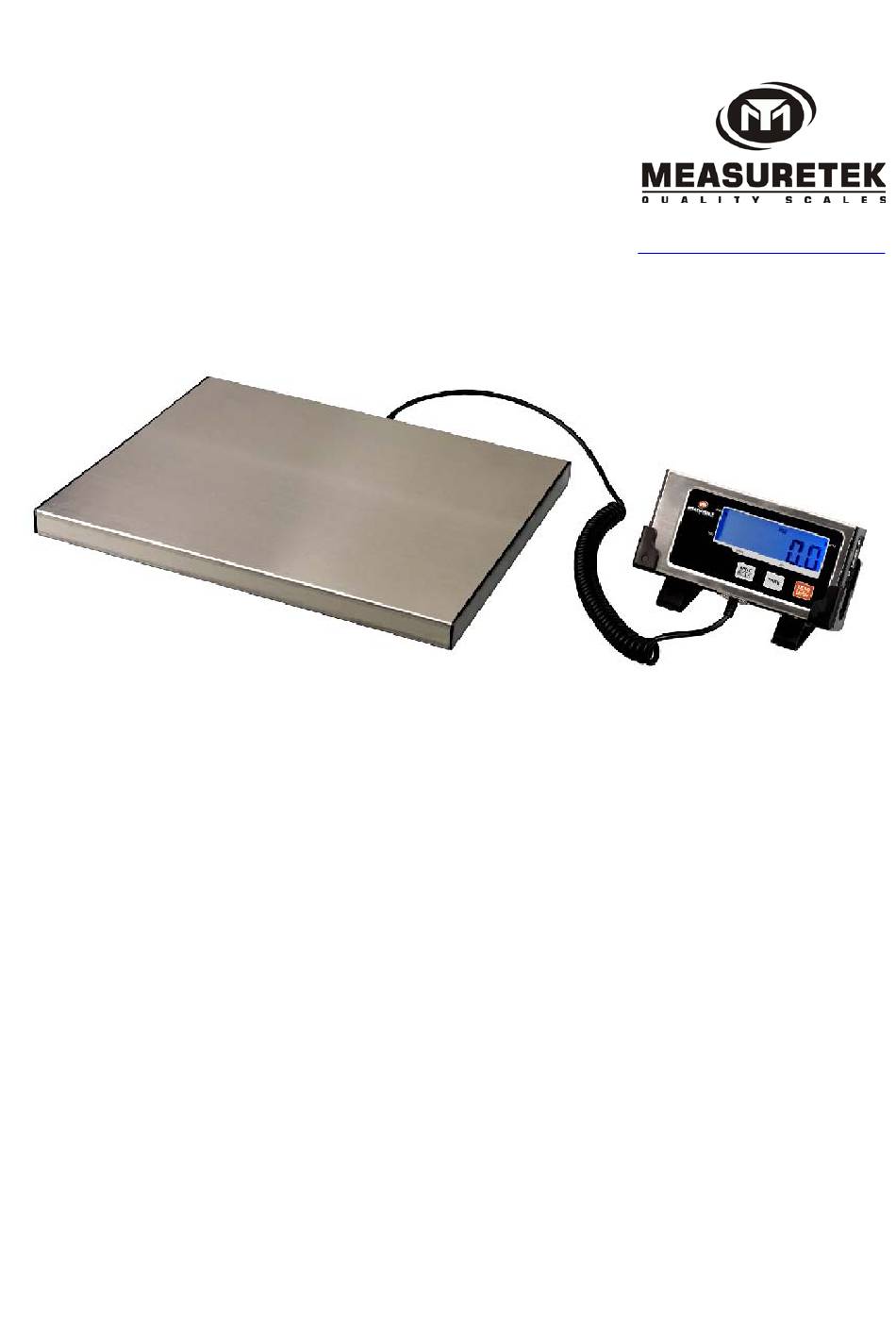

- Page 1 W W W . M E A S U R E T E K . N E T PS-101 User/Technical Manual Contents subject to change without notice Version 1.0 11/2016...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION and INSTALLATION .................... 1 General and Safety Information ..........................1 Specifications ................................. 1 Contents ................................1 Load Cell Wiring ..............................2 Unpacking and Setup ............................... 2 OVERVIEW OF CONTROLS AND FUNCTIONS .................. 2 Indicator Display Character Definitions ........................2 Indicator Display .............................. -
Page 3: Introduction And Installation
Electronic scales are precision instruments. Do not operate near cell phones, radios, computers or other electronic devices that emit radio frequencies that may cause unstable readings. Avoid using in heavy vibration or heavy airflow conditions. Specifications Model PS-101-60 PS-101-120 PS-101-200 Max Capacity 60 kg / 130 lb... -
Page 4: Load Cell Wiring
Plug the AC adapter into a properly grounded power outlet. 3. If the scale will be stored or transported in the future, save the packaging material to ensure the best possible protection for the scale. 2. OVERVIEW OF CONTROLS AND FUNCTIONS Indicator Display Character Definitions PS-101 www.measuretek.net... -
Page 5: Indicator Display
Enter user parameter setup mode +UNIT/HOLD (more than 3 seconds) Weighing mode ON/OFF/ZERO Enter calibration mode +TARE (more than 3 seconds) ON/OFF/ZERO Weighing mode Go to Show A/D code or input working voltage of indicator +TARE (more than 3 seconds) mode +UNIT/HOLD PS-101 www.measuretek.net... -
Page 6: Operations
1. Press HOLD key while scale is under load. 2. “HOLD” announciator is being displayed at the screen. 3. The weight remains saved in the display after unloading the scale. 4. For deactivation of the Hold function, press again the UNIT/HOLD key. PS-101 www.measuretek.net... -
Page 7: Calibration
EEPROM. Then it will auto-reset, and be directed to weighing mode. If an CAL. E r error occurred in calibration, the scale will display “ ” and then it necessary to repeat the procedure from step3. PS-101 www.measuretek.net... -
Page 8: View Adc Code Or Power Voltage
V. The proper working power voltage is between 5V to 8V. 5. Press the TARE key to display filtered or un-filtered weight A/D data; when is on, the data is filtered. PS-101 www.measuretek.net... -
Page 9: Configuration Parameters Setup
4=19200bps P5.x RS232 format: 0=8N1, 1=7O1, 2=7E1 Resolution select: 00=500, 08=2400, 16=7500, 24=35000, 01=600, 09=2500, 17=8000, 25=40000, 02=750, 10=3000, 18=10000, 26=50000, PS-101-60: 05 P6.xy 03=800, 11=3500, 19=12000, 27=60000, PS-101-120: 08 04=1000, 12=4000, 20=15000, 28=70000, PS-101-200: 12 05=1200, 13=5000, 21=20000, 29=75000,... - Page 10 Para- Factory Default Setting meter setting PS-101-60: 2 Decimal point in calibration: 0= x1, 1= x0.1, 2= x0.01; 3= x0.001; 4= P8.x PS-101-120: 2 x0.0001; 5= x10 PS-101-200: 1 P9.x Calibration unit: 0=kg, 1=lb Weighing units enable: 0=only kg; 4=kg or lb:oz;...
- Page 11 P3.7: When the scale is stable, it will output the current net weight in gram with five numbers. The output format is same as P3.6. P9.x: Calibration unit As per the setting of P7, P8 and P9, following table is listed, PS-101 www.measuretek.net...
- Page 12 0.002 kg 0.005 lb 0.1 oz 0.05 lb 0.02 kg 0.05 lb 1 oz 0.5 lb 0.2 kg 0.5 lb Not available 5 lb 2 kg 5 lb Not available 50 lb 20 kg 50 lb Not available PS-101 www.measuretek.net...
-
Page 13: Details About Rs232
7.2.3) If the weight is overcapacity, the scale will return nine ‘^’ characters (the field of minus sign, decimal point, weight data is filled by ‘^’). If the weight is under capacity, it will return nine ‘_’ characters (the field of minus sign, decimal point, and weight data is filled by ‘_’). PS-101 www.measuretek.net... - Page 14 Changes units of measure and return scale status with new units, just like pressing UNIT/HOLD button. The new measure unit should be allowed to use as per P10 setting. If the weight unit is lb:oz, u1u2= “lb oz” PS-101 www.measuretek.net...
-
Page 15: Symbol Definitions
CAL.Er There is an error in calibration Hold(H) Hold function is active. Net ◄ The display reading is net weight Zero ◄ The scale is at zero point CAP.-- The the setting full capacity will be displayed PS-101 www.measuretek.net... -
Page 16: Trouble Shooting
Weighing is not accurate 3. Loose the shipping protection screws. 2. Load cell received a heavy impact 4. Place the load on the center of the weighing 3. The scale is at a location far from Chicago platform PS-101 www.measuretek.net...
