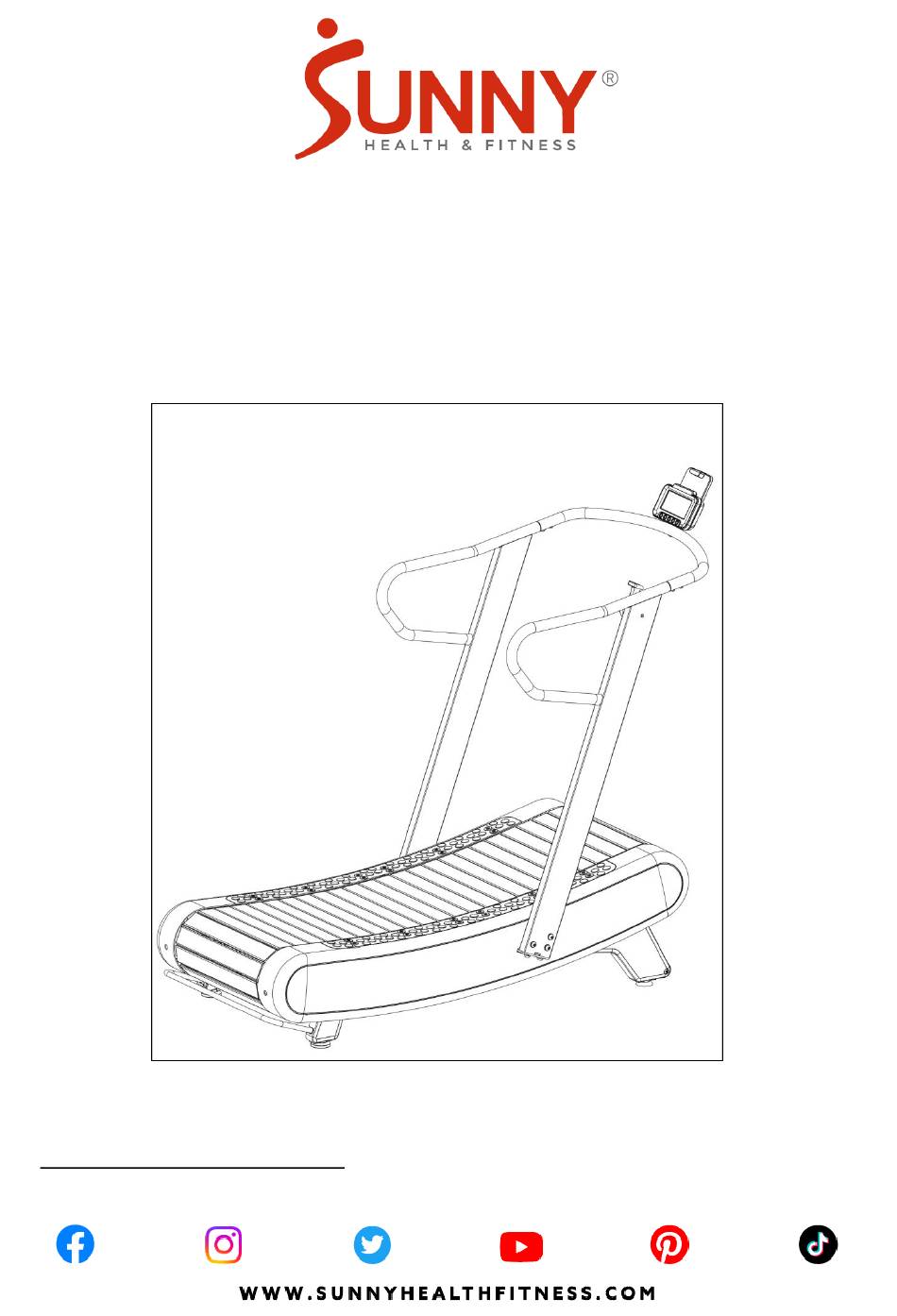

SMART ULTRA MANUAL
TREADMILL WITH 8 LEVELS
MAGNETIC RESISTANCE
SF-X7110
USER MANUAL
IMPORTANT! Please retain owner's manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
Advertisement
Table of Contents
Related Manuals for Sunny Health & Fitness SF-X7110
Summary of Contents for Sunny Health & Fitness SF-X7110
- Page 1 SMART ULTRA MANUAL TREADMILL WITH 8 LEVELS MAGNETIC RESISTANCE SF-X7110 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. -
Page 3: Pre-Assembly Check List
PRE-ASSEMBLY CHECKLIST Before you start to assemble, please make sure all parts are included. Description Spec. Description Spec. Main Frame Manual Left Upright Tube Thank You Card Right Upright Tube Hardware Package Computer Holder Battery Frame Computer SF-L2402M... -
Page 4: Hardware Package
HARDWARE PACKAGE SF-X7110 HARDWARE PACKAGE STEP 3 STEP 4 STEP 2 #40 M10x25(2pcs) #39 M10x50(3pcs) #39 M10x50(3pcs) #40 M10x25(2pcs) #44 M8x16(4pcs) #51 ¢10(5pcs) #51 ¢10(5pcs) #55 ¢10(5pcs) #55 ¢10(5pcs) #66 S5 (1pcs) #67 S6 (1pcs) Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓... - Page 5 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 1: We recommend having two people to do the assembly. Remove the Main Frame (No. 1) from the carton on level ground and ensure a clean and adequate space.
- Page 6 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 3: CAUTION: Please make sure the Tension Control Knob (No. 15) is at the highest resistance level (level 8) before you connect any wires together.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877- 907-8669). STEP 5: Remove the preinstalled 4 Bolts (No. 62) from the black of computer with Allen Wrench (No.
-
Page 8: Adjusting The Running Belt
ADJUSTMENTS GUIDE ADJUSTING THE RUNNING BELT When you use a treadmill, the pressure on the running belt is not balanced due to the different forces used by the two feet during running, which causes the running belt to deviate from the center. This deviation is normal, and you need to bring the running belt back to the center. -
Page 9: Battery Installation And Replacement
BATTERY INSTALLATION & REPLACEMENT BATTERY INSTALLATION 1. Take out 2 AA batteries from the computer box. 2. Press the buckle of battery cover on the Computer (No. 17), then remove battery cover. 3. Install 2 AA batteries into the battery case on the back of the Computer (No. 17). Pay attention to the battery + and –... -
Page 10: Exercise Computer
EXERCISE COMPUTER BLUETOOTH 1. The Bluetooth icon will flash when the computer is on or wakes from sleep mode. If no Bluetooth connection is established within 3 minutes, the Bluetooth icon will turn off. 2. The Bluetooth icon will stay on when it is connected. WIRELESS HEART RATE 1. - Page 11 2. FUNCTION 2.1 TIME：Displays the time of the exercise. 2.2 SPEED：Displays the speed at which you are moving. 2.3 CALORIES：Shows how many calories the user burned during exercise. 2.4 DISTANCE：Displays the distance of the exercise. 2.5 PACE：Pace (The time it takes to move one mile). 2.6 PULSE: Displays the user heart rate.
-
Page 12: Target Mode
over, the end screen will be entered (Figure 12). At this time, press "START/STOP" key to restart the movement in the current mode. 3.2.3 INTERVAL CUSTOM MODE In INTERVALmode, select "CUSTOM" mode and press "START/STOP" key to set the number of intermittent alternation (Figure 13). After setting, press "MODE" key to set "WORK TIME"... -
Page 13: App Connection
APP CONNECTION: Connect Smart Equipment to SunnyFit App: 1. Scan to download SunnyFit from the app store: 2. Ensure that the Bluetooth function is turned on from your mobile device. 3. If this is your first time using the SunnyFit app, follow the in-app instructions to register for your free SunnyFit account and log in. -
Page 14: Maintenance Instructions
MAINTENANCE INSTRUCTIONS This is general information for daily, monthly maintenance to be performed on your treadmill. DAILY MAINTENANCE After each workout, wipe all areas: running platform, handrails, console. Pay special attention to running with protection. Sweat is highly corrosive and may cause problems that need to be replaced later. -
Page 15: Exploded Diagram
EXPLODED DIAGRAM... -
Page 16: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Protective Coil Left Upright Tube Gummed Bearing Right Upright Tube Deep Groove Ball Bearing Computer Holder Frame Deep Groove Ball Bearing 6000 Rear Handle Guide Wheel Washer Magnetic Frame Bolt M10x50 Flywheel Bolt...
