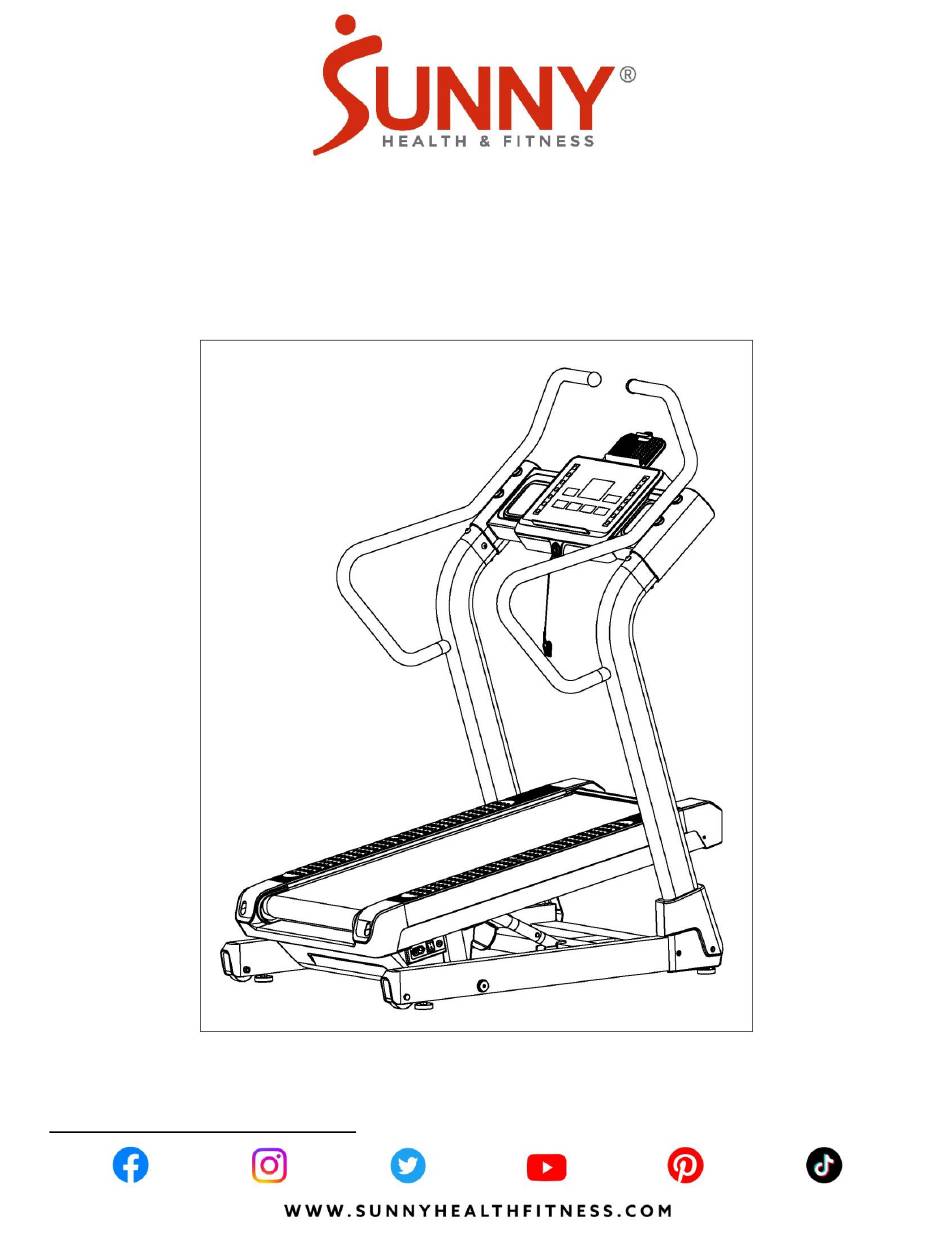

- Page 1 PREMIUM INCLINE TREADMILL SF-X7200 USER MANUAL IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED US: support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907-8669).
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be achieved if the equipment is assembled, maintained, and used properly. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. - Page 3 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using (this appliance). DANGER – To reduce the risk of electric shock and the injury from moving parts: Always unplug this appliance from the electrical outlet immediately after using and before cleaning or servicing.
-
Page 4: Pre-Assembly Check List
PRE-ASSEMBLY CHECK LIST Before you start to assemble, please make sure all parts are included. Description Spec. Qty. Description Spec. Qty. Right Upright Tube Main Frame 203.5X64.7X254 Cover Tablet Holder Upper Left Upright Tube 220X170X8.6 Cover Right Upright Tube Safety Key Console Support Power Cord 2000MM... -
Page 5: Hardware Package
HARDWARE PACKAGE Ordering Replacement Parts (U.S. and Canadian Customers only) Please provide the following information in order for us to accurately identify the part(s) needed: ✓ The model number (found on cover of manual) ✓ The product name (found on cover of manual) ✓... - Page 6 ASSEMBLY INSTRUCTIONS We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 1: We recommend having two people to do the assembly. Open the carton and remove contents. Place the Main Frame (No.
- Page 7 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 3: Connect the Console Upper Cable (No. 83) to the Console Middle Cable (No. 84).
- Page 8 We value your experience using Sunny Health and Fitness products. For assistance with parts or troubleshooting, please contact us at support@sunnyhealthfitness.com or 1-877-90SUNNY (877-907- 8669). STEP 5: First, fasten the 10 Inner Hex Bolts (No. 40) from STEP 2 tightly using Allen Wrench (No.
-
Page 9: Lubricating The Treadmill
LUBRICATING THE TREADMILL *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. Lubricating the Running Board (No. 27) and Running Belt (No. 28) is essential as the friction between the two affects the life span and function of the treadmill. Inspect the Running Board (No. 27) and Running Belt (No. -
Page 10: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No. 28) to prevent dust from accumulating underneath the Running Belt (No. 28). Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No. -
Page 11: How To Move The Treadmill
HOW TO MOVE THE TREADMILL NOTE: It is suggested to have two people to help move the treadmill to avoid injury. Hold the Front Protective Cover (No. 19) and tilt the treadmill until the Transportation Wheels (No. 38) touch the ground. With the Transportation Wheels (No. 38) on the ground, you can transport the treadmill with ease. -
Page 12: Grounding Instructions
GROUNDING INSTRUCTIONS WARNING: This treadmill requires a power source of 20 amps (120V) to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user. -
Page 13: The Display Console
THE DISPLAY CONSOLE WINDOW AND KEY DESCRIPTION 1. LED WINDOW FUNCTION 1) MAIN WINDOW: Standby or select the three countdown modes of TIME, DISTANCE and CALORIES; displays the speed dot matrix diagram when selecting the program; displays error; displays the runway and the number of laps, or the speed lift dot pattern. 2) SPEED WINDOW: Displays the current running speed. - Page 14 9) In the standby state, press and hold the “SPEED ” keys for 3 seconds to view the total distance. Press the "PAUSE/STOP" key for 3 seconds to clear the total distance. Then remove the Safety Key (No. 76) and reinsert back into the safety key seat to return the treadmill back to standby state.
- Page 15 4. FIXED PROGRAM 1) In the standby state, press “PROGRAM” key and the program window will show “P01, P02, -…P12”. After choosing the program, the time window will show the initial time: 30 minutes. Pressing the “SPEED ” keys, or “INCLINE ”...
-
Page 16: User Program
5. USER PROGRAM The treadmill has three user programs that allow users to set up according to their personal preferences: U01, U02, U03. 1) User program settings: In standby state, continuously press the “PROGRAM” key until the user program (U01-U03) is selected. -
Page 17: Troubleshooting
3. If there is any problem with this machine, please contact us (support@sunnyhealthfitness.com). Non-professional personnel should not try to remove or repair the machine, to avoid damage to the equipment. TROUBLESHOOTING Error Possible reasons Solutions 1.Check the cable between the controller and inverter. Controller can not receive signal 2.Replace the cable between the controller and inverter. -
Page 18: Exploded Diagram
EXPLODED DIAGRAM... -
Page 19: Parts List
PARTS LIST Description Spec. Qty. Description Spec. Qty. Main Frame Belt 250J Bottom Support Spacer Φ32XΦ25X14 70.6X37.4X26. Left Upright Tube Tablet Holder Clip Right Upright Tube Adjustable Pad Φ53XM10X13 Console Support Grommet Φ12XΦ24X9 Left Handrail Cushion Φ30X32 Right Handrail Lubricant Plug 34.5X20X8 Strengthen Tube Transportation Wheel... - Page 20 Description Spec. Qty. Description Spec. Qty. Nylon Nut Inverter Hex Thin Nut Power Cord 2000MM Hex Nut Console Upper Cable 950MM Hex Nut Console Middle Cable 1450MM Serrated Lock Φ10X1.2 Console Lower Cable 1700MM Washer Serrated Lock Φ8X1.2 Controller Cable 550MM Washer Flat Washer...
