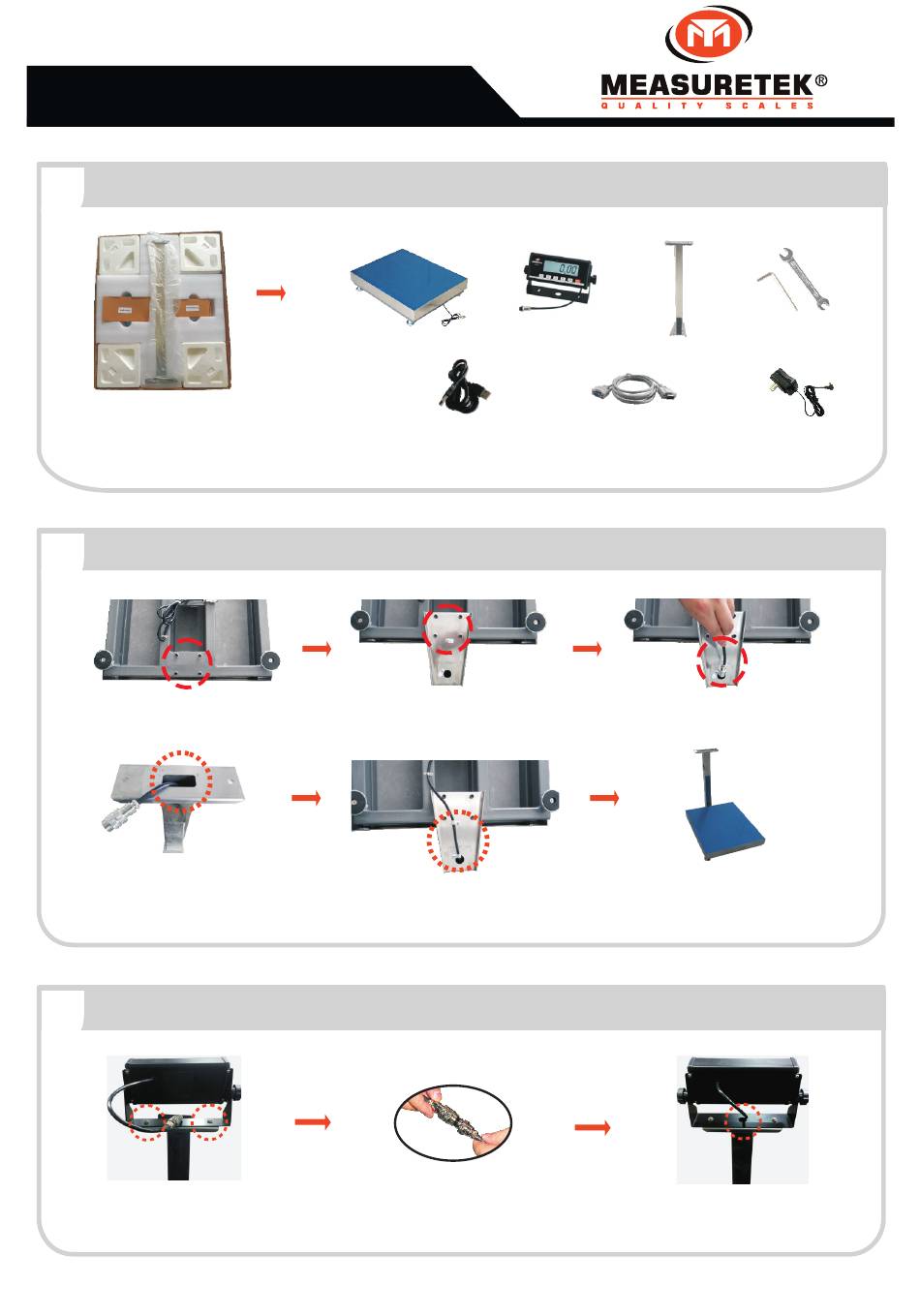

EHP (12R963D-12R968D) Quick Guide
1
1. Open the package.
2. Take out the two cardboard boxes to get the indicator, AC adapter, USB cable, Rs232 cable and tools.
3. Take out the scale base and the pole.
2
1. Remove the four cap screws
and washers from the base
4. Run the load cell cable through
the hole at the top of the pole.
3
1. Attach the indicator bracket
to the pole using the screws.

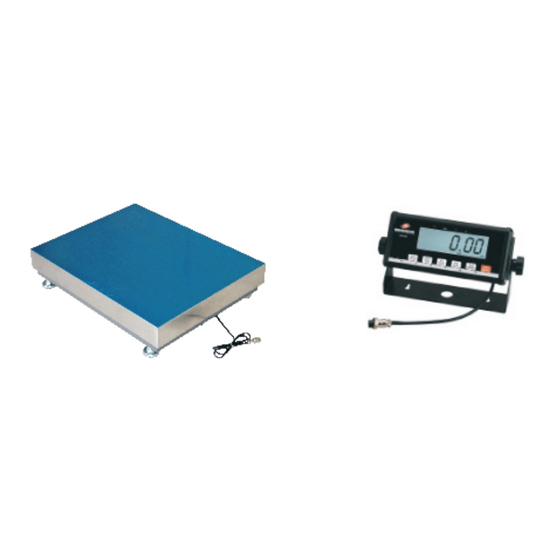

Unpack and Verify Contents
Base
Scale
USB
Cable
Assemble Pole to Scale Base
2. Take the pole out and assemble
it to the base by fixing 4 screws
5. Secure the load cell
cable with the cable clips.

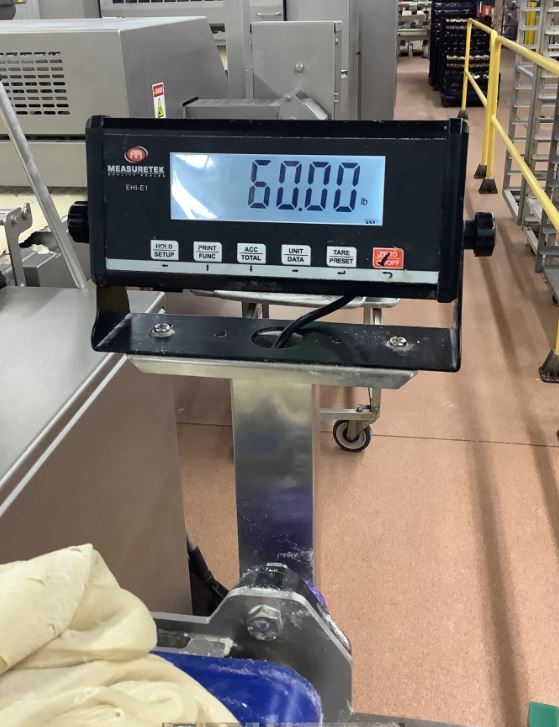

Assemble the Indicator
2. Connect the indicator cable
plug to the load cell cable plug.
Pole
Indicator
RS232
Cable
3. Run the load cell cable through
the hole at the bottom of the pole.
6. Turn the scale right side up.
3. Feed the plug and excess cable
into the hole at the top of the pole.
Tools
AC
Adapter
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Measuretek EHP
Summary of Contents for Measuretek EHP
- Page 1 EHP (12R963D-12R968D) Quick Guide Unpack and Verify Contents Pole Base Scale Indicator Tools RS232 Adapter Cable Cable 1. Open the package. 2. Take out the two cardboard boxes to get the indicator, AC adapter, USB cable, Rs232 cable and tools.
- Page 2 EHP (12R963D-12R968D) Quick Guide Remove Protection Foams Adjust Feet to Level Scale Balanced Unbalanced Remove the stainless steel platter, and remove the protection foam pads at the four corners. Adjust the four feet until the scale is level and stable.
- Page 3 EHP (12R963D-12R968D) Quick Guide Control Functions Button Primary Function Secondary Function (Short Press) (Long Press) Turns the scale on Turns the scale off If scale is On, sets zero Performs a tare operation Enters pre-tare input mode Changes unit of measure In weighing &...
