Summary of Contents for Genexis FiberTwist

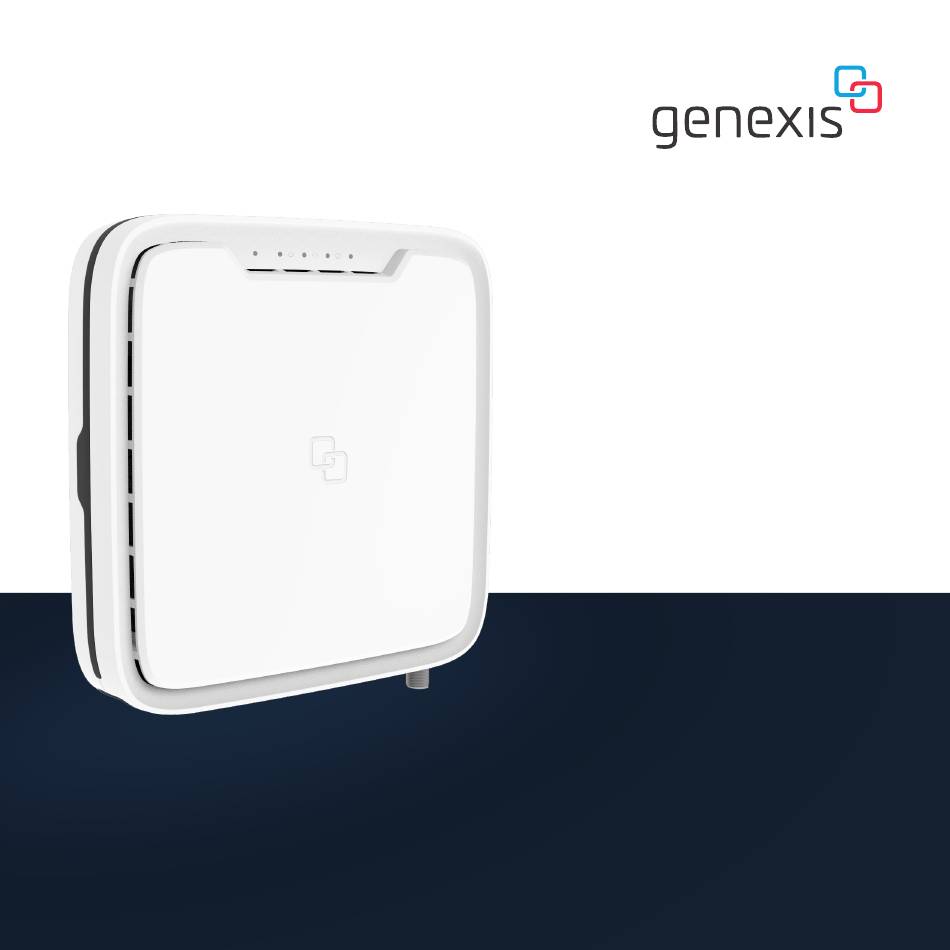

- Page 1 FiberTwist XGS2472 Installation Guide...
- Page 2 Remove Blind Cover or active device Box contents Preparation (if present) • Genexis FiberTwist (active device) Ensure there is a power socket 1. Press and hold the unlock button (on the right • Power adapter within reach of where the device side of the Blind Cover or active device).
- Page 3 Remove dust cap Twist! Connecting the FiberTwist 1. Take the FiberTwist out of the box. 1. Place the FiberTwist on the FTU/Bracket as 1. If required, connect your television / set-top 2. The dust cap is connected to the red string shown in the picture below.
-
Page 4: Led Overview
LED overview Power Green – system ok Green (blinking) – booting Red – system or booting failure Red (blinking) – insufficient PON signal Off – power off Uplink Green – link ok Green (blinking) – link establishing Off – no link Power + Uplink Green (blinking) –... -
Page 5: Port Overview
Reset Power port LAN ports TV port button Unlock button Remove FiberTwist XGS2472 – press and hold while twisting counterclockwise LED dim button Dim LEDs – press and release repeatedly USB 2.0 to dim LEDs port Reset button (recessed) -
Page 6: Eu Declaration Of Conformity
EU Declaration of Conformity Hereby, Genexis Netherlands B.V. declares that the radio equipment type FiberTwist XGS2472 is in compliance with Directive 2014/53/EU, Directive 2009/125/EC, Directive 2011/65/EU and Delegated Directive 2015/863. The full text of the EU declaration of conformity is available at the following internet addresses: https://genexis.eu/product/fibertwist/red/fibertwist-xgs2472... - Page 7 Revision 2.0 - November 2023 - Copyright © 2023 Genexis Netherlands B.V. All rights reserved. Multiple languages of this document and additional product information are available on https://genexis.eu/product/fibertwist/downloads Genexis assumes no responsibility for any inaccuracies in this document. Genexis reserves the right to change, modify, transfer, or otherwise revise this publication without notice.
