Genexis FiberTwist Installation Manual

Network termination + wifi repeater/extender

Hide thumbs Also See for FiberTwist:

Download this manual

FiberTwist + Pulse

Network Termination +

WiFi Repeater/Extender

Quick Installation Guide

Need help?

Do you have a question about the FiberTwist and is the answer not in the manual?

Page 1 FiberTwist + Pulse Network Termination + WiFi Repeater/Extender Quick Installation Guide...
Page 2 Unlock button 1. Preparation 2. Remove the FTU blind cover The installation of your FiberTwist and Pulse • Press and hold the unlock button (on the combination starts with the FiberTwist. right side at the top of the blind cover).

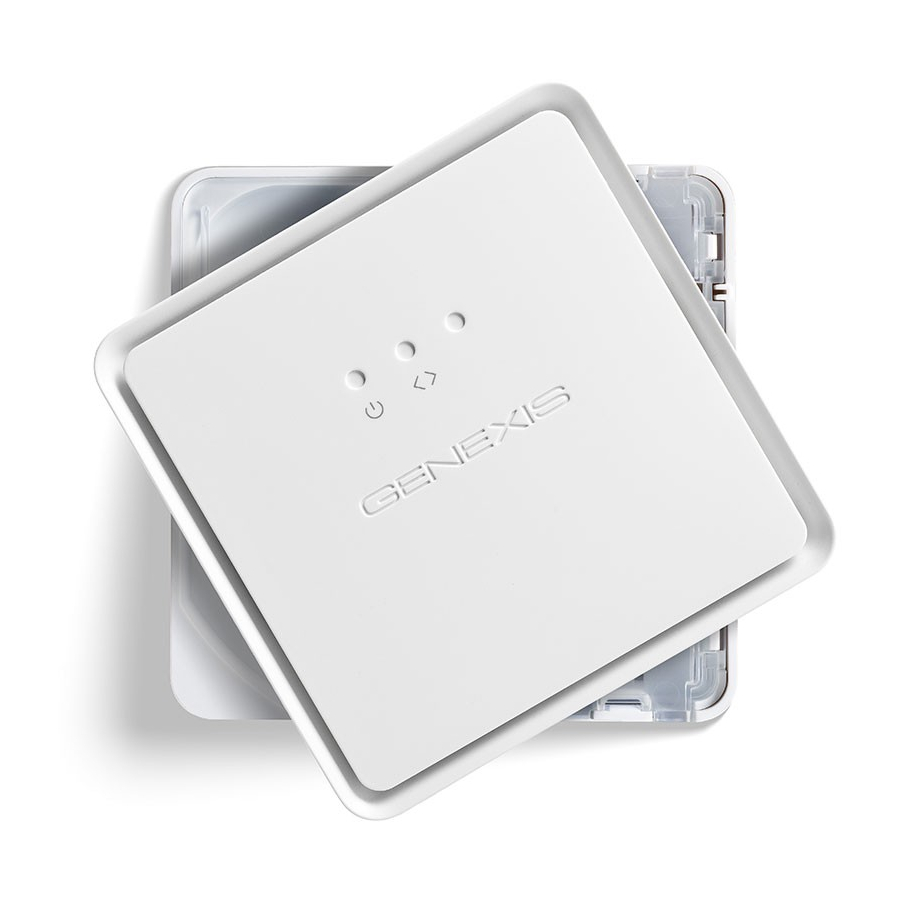

Page 3 Dust cap 3. Remove dust cap of FiberTwist 4. Twist! Take your FiberTwist out of its box. The dust Place your FiberTwist on the FTU as shown cap is the bright red tab located on the rear above and rotate clockwise until it clicks of your FiberTwist.
Page 4: Connect To The Power
6. Placement of Pulse Connect the supplied power adaptor to your Place your Pulse within 2m* from your FiberTwist and then plug the adaptor into a FiberTwist, preferably not in the meter cabinet. power socket. Ensure there is a power socket within 1m of where your Pulse is being installed.
Page 5 8. Connect to the power Connect the provided Ethernet cable to a Connect the supplied power adapter to your LAN port of your FiberTwist and to the WAN Pulse and plug the adapter into an (red) port of your Pulse.
Page 6 You are now connected to the internet. For more information about your Pulse Hereby, Genexis declares that the radio or your FiberTwist, have a look at the Full equipment type Pulse is in compliance with Installation Guides (https://genexis.eu/ Directive 2014/53/EU. The full text of the EU download-portal/#ﬁ...

Pulse
