FUHR multitronic 881 Manual

multitronic
881/881GL/ServoAccess
Manual multi-functional control
Besides many further connection possibilities the multi-functional control also provides the use of a day-
latch function and a permanent-open function.
With the day-latch function, during the day the door is secured only by the latch. Ideal for heavily frequented
doors where controlled access is required. With the permanently-open function, the latch and all bolts are
permanently retracted. This allows unhindered opening of the door from both sides – without access control.
This two functions can be realised in two different ways:
• Cable connected – via an external or optional available switch
• Wireless via radio signal – via a radio key or with another FUHR access control system (from SW 4.51)
A combined application of both variants is not recommended, or should only be carried out by quali-
fied personnel and checked beforehand on the basis of individual customer requirements.
The LEDs on the controller indicate which function has been set:
Day-latch function:
Permanently-open function:
Cable connected permanent unlocking
Enables manual activation of the permanently-
open function (terminals 9 + 10) or the day-latch
function (terminals 11 + 12).
Control switch for activating
special functions
Stainless steel cover plate with slide
switch and connecting cable, for
retrofitting the mounting control.
Art. no. VNZSTZ0459
Wireless permanent unlocking via radio signal
Enables activation of the permanently-open func-
tion or the day-latch function via radio key or via
other FUHR access control systems, available from
software version SW 4.51:
4-channel radio key with
wall bracket
Easy mounting at a suitable
location inside the building, high
transmission range, including
battery with long life.
Art. no. VNZ80293
green + red LED flash slowly
green LED flashes slowly

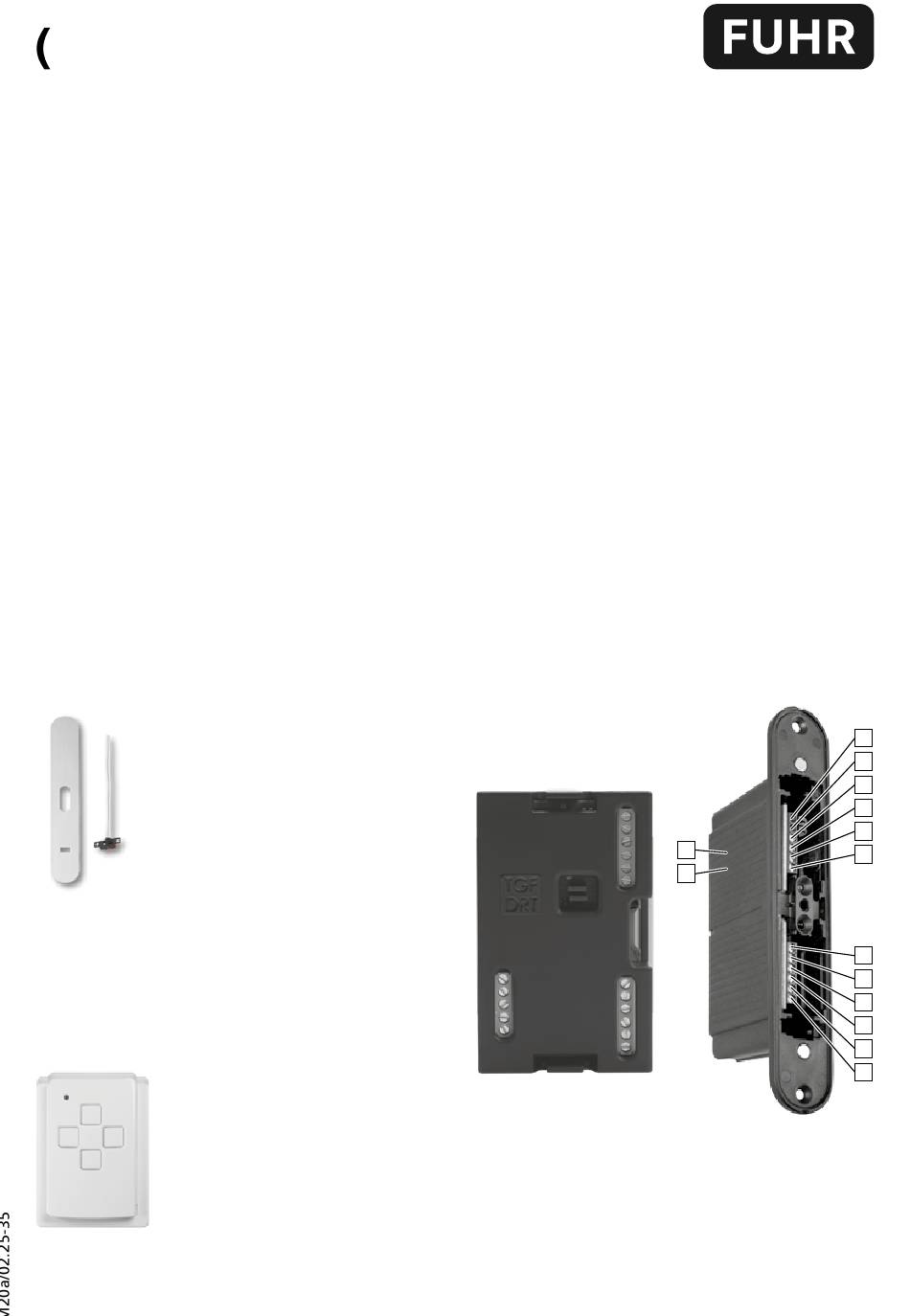

Connecting possibilities of the control
The following is an example of how the connection
terminals of the control unit can be assigned:
Rail mounted control
16
17
Frame-side control
1
2
3
4
5
6
7
8
9
10
11
12
