Device Installation

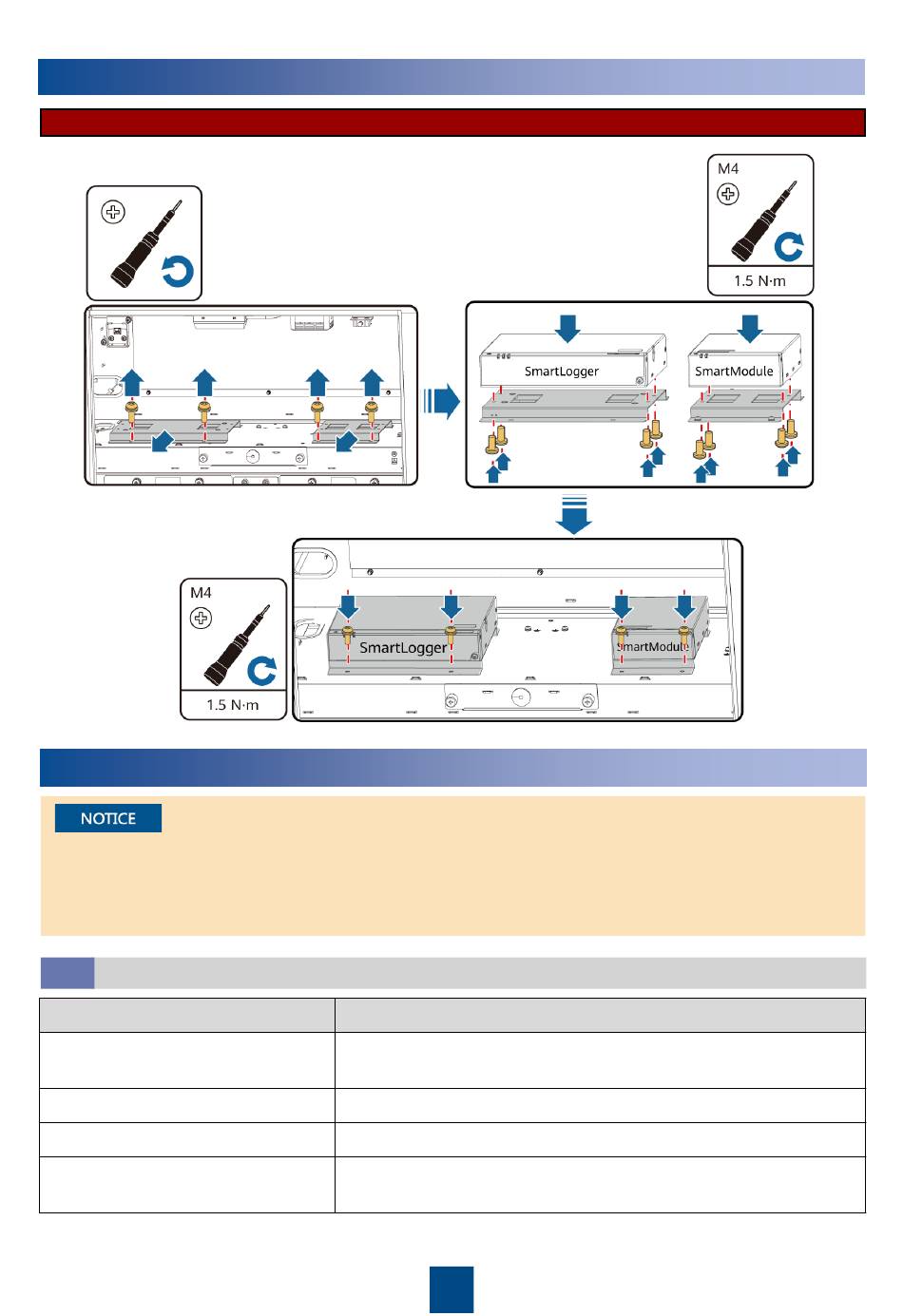

Installing the SmartModule Behind the Main Control Front Door of the Power Unit
3

Electrical Connections

• Connect cables in accordance with the installation laws and regulations of the country or
region where the project is located.
•
Before connecting cables to ports, leave enough slack to reduce the tension on the cables and
prevent poor cable connections.
3.1

Preparing Cables

Type
Protective earthing (PE) cable
Ethernet cable
12 V input power cable
RS485 communications cable
Recommended Specifications
Outdoor copper cable with a cross-sectional area of 4–6 mm
or 12–10 AWG
Delivered with the SmartModule
Delivered with the solution package
Two-core or multi-core cable with a cross-sectional area of
2
0.2–2.5 mm or 24–14 AWG
2
2
