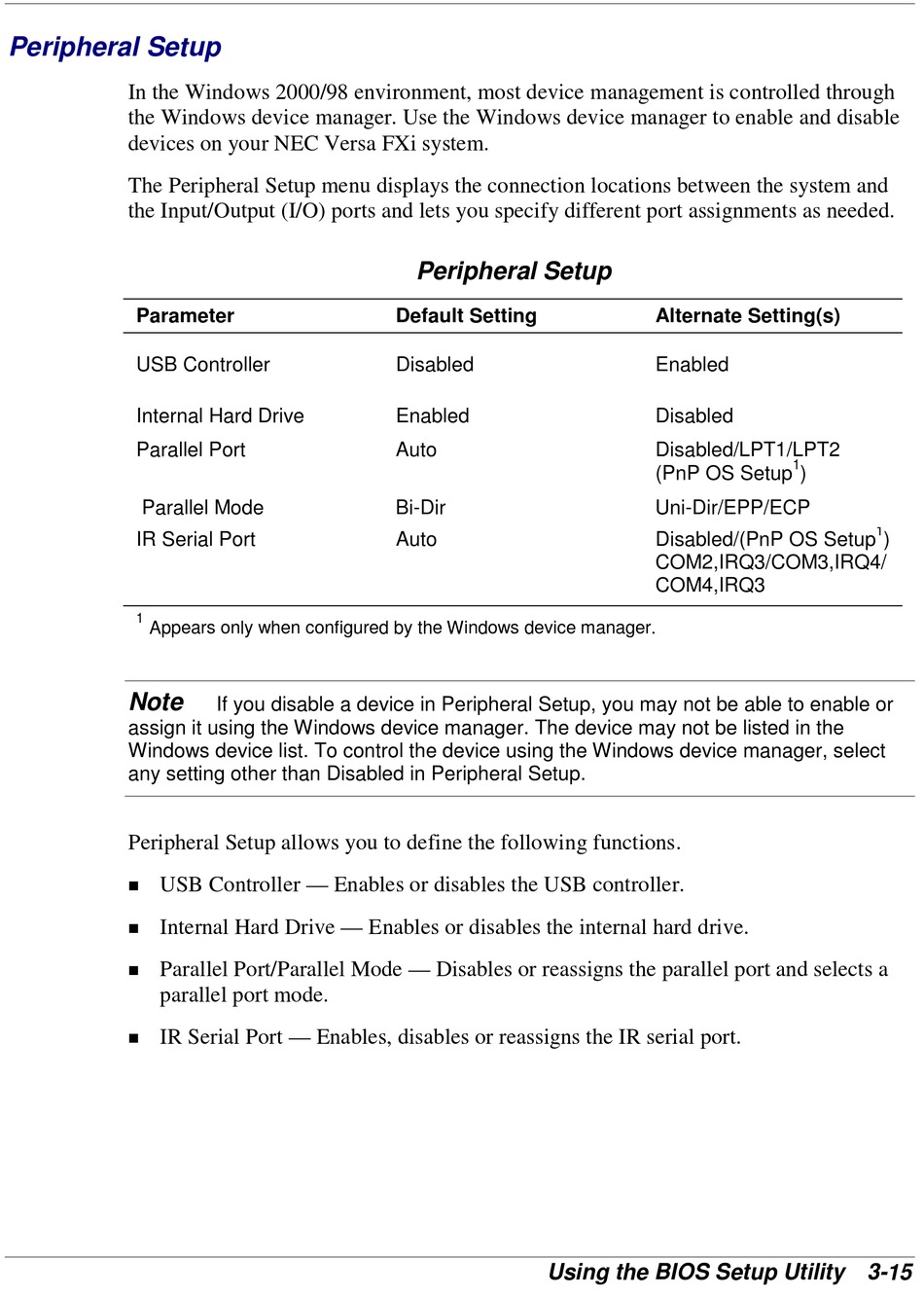

Peripheral Setup

In the Windows 2000/98 environment, most device management is controlled through
the Windows device manager. Use the Windows device manager to enable and disable
devices on your NEC Versa FXi system.
The Peripheral Setup menu displays the connection locations between the system and
the Input/Output (I/O) ports and lets you specify different port assignments as needed.
Parameter
USB Controller
Internal Hard Drive
Parallel Port
Parallel Mode
IR Serial Port
1
Appears only when configured by the Windows device manager.
Note
assign it using the Windows device manager. The device may not be listed in the
Windows device list. To control the device using the Windows device manager, select
any setting other than Disabled in Peripheral Setup.
Peripheral Setup allows you to define the following functions.
USB Controller — Enables or disables the USB controller.
!
Internal Hard Drive — Enables or disables the internal hard drive.
!
Parallel Port/Parallel Mode — Disables or reassigns the parallel port and selects a
!
parallel port mode.
IR Serial Port — Enables, disables or reassigns the IR serial port.
!
If you disable a device in Peripheral Setup, you may not be able to enable or
Peripheral Setup
Default Setting
Disabled
Enabled
Auto
Bi-Dir
Auto
Using the BIOS Setup Utility 3-15
Alternate Setting(s)
Enabled
Disabled
Disabled/LPT1/LPT2
1
(PnP OS Setup )
Uni-Dir/EPP/ECP
Disabled/(PnP OS Setup
COM2,IRQ3/COM3,IRQ4/
COM4,IRQ3
1
)
