MD500-EN1 EtherNET/IP Card
StartUp Procedure
(MD500-PLUS & MD520)
INOVANCE TECHNOLOGY EUROPE
V1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MD500-EN1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Inovance MD500-EN1

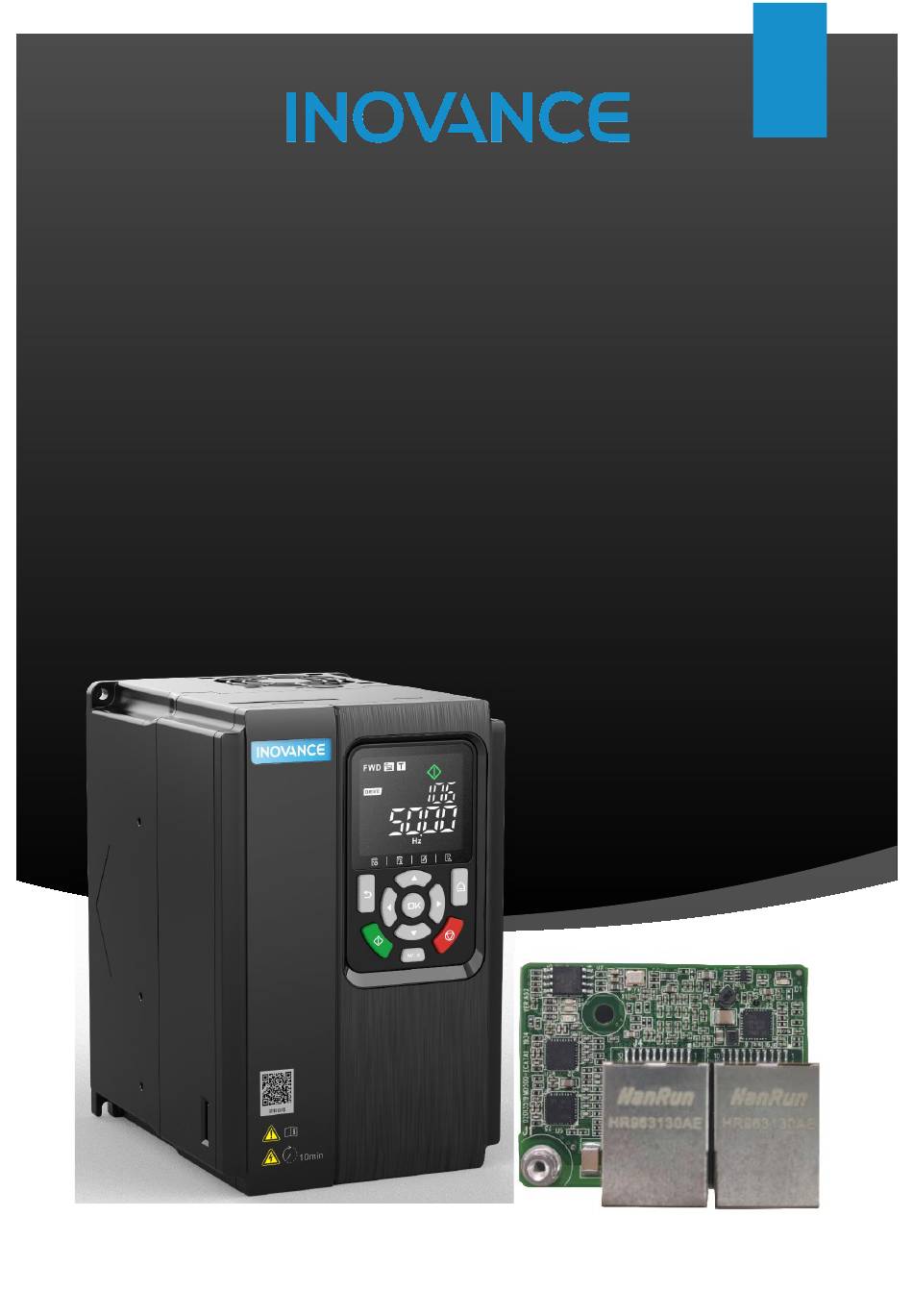

  • Page 1 2024 MD500-EN1 EtherNET/IP Card StartUp Procedure (MD500-PLUS & MD520) INOVANCE TECHNOLOGY EUROPE V1.0...
  • Page 2: Table Of Contents

    Installing the MD500-EN1 card ......................... 4 Hardware Layout ............................5 Communication Configuration ........................6 Communication Setup for MD500-EN1 Card and MD500-PLUS/MD520 AC Drive ........6 Drive parameters mapping ........................8 AC Drive Fault Information ........................11 Project Examples ............................12 InoProShop project (Inovance’s AM/AC series controllers) ..............
  • Page 3: General Data

    PURPOSE OF THIS DOCUMENT The purpose of this document is to facilitate the commissioning of EtherNET/IP communications on the MD500- PLUS/MD520 drives. To perform this procedure, an MD500-PLUS/MD520 and an optional MD500-EN1 communications card are required. INOVANCE TECHNOLOGY EUROPE GmbH...
  • Page 4: Overview

    OVERVIEW The MD500-EN1 card is an EtherNET/IP fieldbus adapter card. It is installed in the MD series AC drive to increase the communication efficiency and implement the AC drive networking function, which enables the AC drive to be a slave controlled by the fieldbus master station.
  • Page 5: Installation And Settings

    The MD500-EN1 card is installed inside the MD500 series AC drive. Before installation, deenergize the AC drive and wait about 10 minutes until the charging indicator on the AC drive becomes off. Then, insert the MD500-EN1 card into the AC drive and fasten the screws to avoid damage caused by external signal cable tension on the signal socket between boards.
  • Page 6: Hardware Layout

    The pin header J7 on the back of the MD500-EN1 card is used to connect the AC drive. The MD500-EN1 card provides two network ports J4 and J6 for communication with EtherNET/IP master (or other slaves). For details about the hardware, see Table Table 1.
  • Page 7: Communication Configuration

    COMMUNICATION CONFIGURATION COMMUNICATION SETUP FOR MD500-EN1 CARD AND MD500-PLUS/MD520 AC DRIVE The following parameters must be set to enable normal communication between the MD500-EN1 card and MD500-PLUS/MD520 series AC drive and to connect the MD500-EN1 card to the EtherNET/IP fieldbus network.
  • Page 8 1: Even Parity Check Modbus data (8-E-1) format between 2: Odd Parity Check (8-O-1) communication 3: No Check (8-N-1) expansion card and the AC drive IP Address Setting of MD500-EN1 Card Parameter Parameter Setting Range Value Description Name F0-37 DHCP 0: Disabled...
  • Page 9: Drive Parameters Mapping

    100%. U3-22 Reserved Reserved U3-23 Speed control -15000 rpm to +15000 29463 rpm (The setting range is determined by the number of motor pole pairs and frequency setting range.) INOVANCE TECHNOLOGY EUROPE GmbH MD500-EN1 EtherNetIP Card - StartUp Procedure_EN_v1.0_20240330.docx...
  • Page 10 DO state display 28714 U0-43 DI state display 1 28715 U0-44 DI state display 2 28716 U0-45 Fault information 28717 U0-58 Z signal counting 28718 U0-59 Rated frequency (%) 0.01% 28719 INOVANCE TECHNOLOGY EUROPE GmbH MD500-EN1 EtherNetIP Card - StartUp Procedure_EN_v1.0_20240330.docx...
  • Page 11 U0-67 Expansion card version 0.01 28727 U0-68 AC drive state 28728 U0-69 Running frequency (Hz) 0.01 Hz 28729 U0-70 Motor speed 1 rpm 28730 U0-71 Output current 0.1 A 28731 INOVANCE TECHNOLOGY EUROPE GmbH MD500-EN1 EtherNetIP Card - StartUp Procedure_EN_v1.0_20240330.docx...
  • Page 12: Ac Drive Fault Information

    Speed error Motor overspeed Motor overtemperature Braking unit overload Short-circuit of braking circuit Incorrect setting of PPR of the encoder Not connecting the encoder Initial position error Speed feedback error INOVANCE TECHNOLOGY EUROPE GmbH MD500-EN1 EtherNetIP Card - StartUp Procedure_EN_v1.0_20240330.docx...
  • Page 13: Project Examples

    PROJECT EXAMPLES INOPROSHOP PROJECT (INOVANCE’S AM/AC SERIES CONTROLLERS) The AM600 master station is used as an example to describe how to use the MD500-EN1 card with the master station. This example uses InoProShop version 1.8.0. Configure the MD500-EN1 card according section 5 of this guide. Connect either network port on the left or right of the expansion card.
  • Page 14 3) Configure slave parameters. 1. Set IP address of the salve station. INOVANCE TECHNOLOGY EUROPE GmbH MD500-EN1 EtherNetIP Card - StartUp Procedure_EN_v1.0_20240330.docx...
  • Page 15 For the mappings required to be modified, convert the parameter address into decimal format. For example, type in 61452 for F0-12. Keep the default value for the mappings not needed. INOVANCE TECHNOLOGY EUROPE GmbH MD500-EN1 EtherNetIP Card - StartUp Procedure_EN_v1.0_20240330.docx...
  • Page 16 4) Configure IP address of the master station 5) Download the project to the PLC INOVANCE TECHNOLOGY EUROPE GmbH MD500-EN1 EtherNetIP Card - StartUp Procedure_EN_v1.0_20240330.docx...
