Summary of Contents for Bartscher 18340M

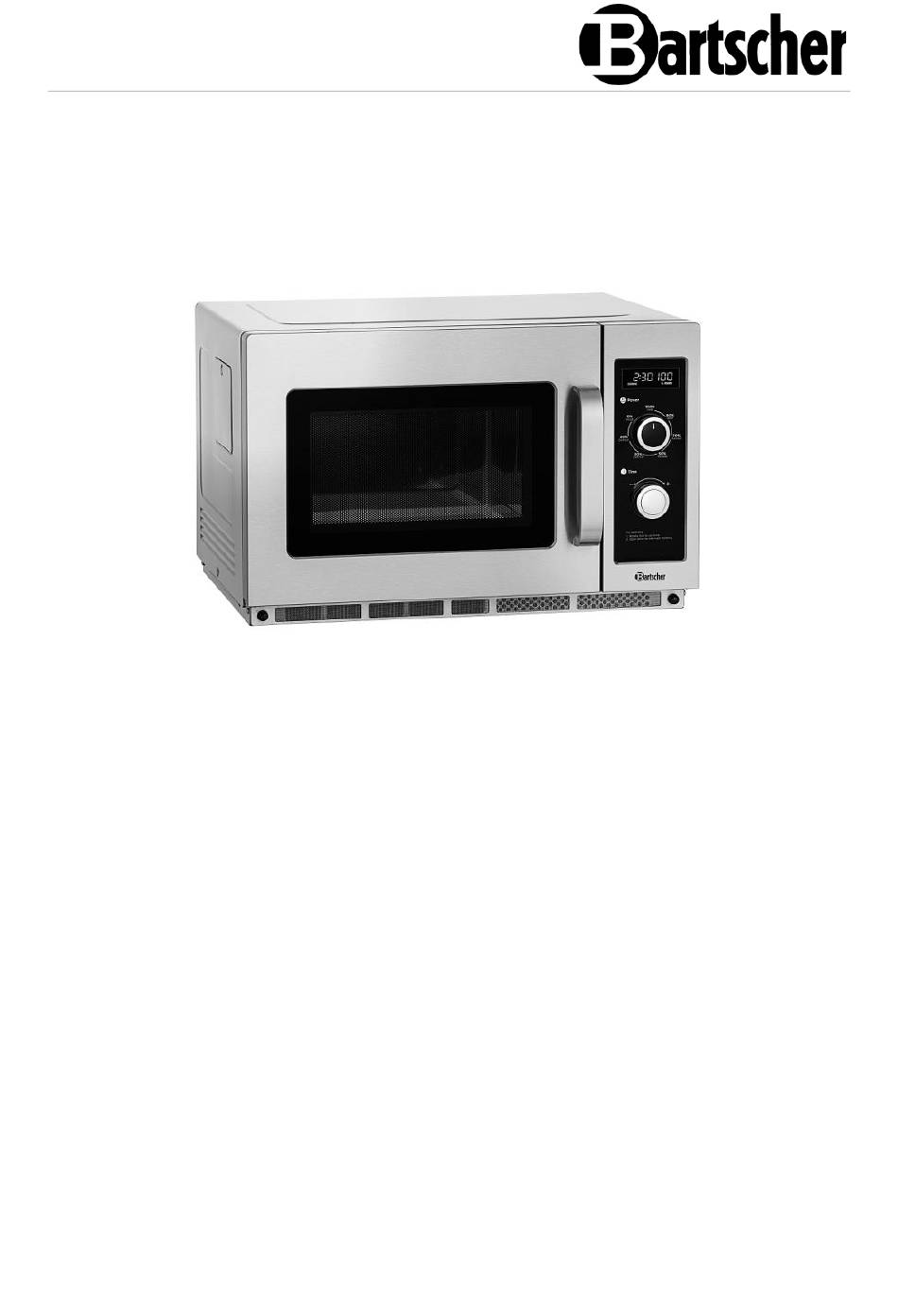

  • Page 1 18340M 610848...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-07-01...
  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 7 Unintended Use ..................7 General information ..................8 Liability and Warranty ................8 Copyright Protection ................8 Declaration of Conformity ................ 8 Transport, Packaging and Storage ..............
  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.
  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety • Do not use the appliance for preparation of fresh or hard-boiled eggs, either in shell or peeled, as eggs may explode. • Food products with thick skins, such as potatoes, pumpkins, apples or chestnuts, should be pierced prior to heating. •...
  • Page 8 Safety Microwave Radiation Hazard! Exposure to microwave radiation may cause bodily injury. To avoid the effects of this risk, follow the safety instructions presented below: • Do not turn the microwave oven on when the door is open, as the appliance may emit an excess of damaging electromagnetic waves.
  • Page 9: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – heating-up and defrosting foods with the use of suitable cookware. This appliance is intended for use in households and similar places, e.g.: –...
  • Page 10: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.
  • Page 11: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.
  • Page 12: Technical Data

    Technical Data Technical Data Technical Specifications Name: Microwave 18340M 610848 Art. No.: Material: stainless steel Thermal processing chamber material: stainless steel, ceramic Microwave output, in W: 1800 Number of magnetrons: Number of power output levels: Volume, in l: Chamber dimensions (W x D x H), in 360 x 405 x 225 Time setting, up to, in min.:...
  • Page 13: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 1 1. Housing 2. Control panel 3. Ventilation openings 4. Dust filter 5. Safety closing system 6. Ceramic bottom 7. Appliance door 8. Door handle 9. Appliance door viewer 10. Internal lighting 610848 11 / 26...
  • Page 14: Functions Of The Appliance

    Technical Data Control Panel A – Digital display B – Power output controller Output levels Output Hold (standby mode) Defrost 20 % Defrost 30 % Reheat 50 % Reheat 70 % Heat Heat 100 % C – Timer (0–60 min.) Fig.
  • Page 15: Installation And Operation

    Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it.
  • Page 16: Basics Of Thermal Processing In Microwave

    Installation and operation Fig. 3 • The appliance should be placed at least 2 m away from a radio, TV, etc. in order not to disturb reception. Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification.
  • Page 17: Cookware Suitable For Use In Microwave

    Installation and operation • Carefully place food products to be cooked inside the microwave oven, with larger pieces at the outer edges. • Remember the cooking time. It is best to at first set the shortest possible time and then lenghten cooking time as necessary. Excessive cooking time may cause the food product to smoke or catch fire.
  • Page 18 Installation and operation Materials and implements that can be used in the microwave unit: Utensils Remarks Only suitable for microwave units. Follow the manufacturer’s Cookware instructions. Do not use cracked nor broken cookware. Glass containers Always remove the lid. Glass containers can only be used to heat food until it is simply warm.
  • Page 19 Installation and operation Utensils Remarks Food foil Only foil designed for microwave units may be used to cover food during thermal processing in order to preserve moisture. The freshness-maintaining foil must not touch food products. Thermometer Use only thermometers intended for use in microwave units (meat and pastry thermometers).
  • Page 20: Operation

    Installation and operation Operation Before Use 1. Before use, clean the appliance observing instructions in section 6 'Cleaning'. 2. Leave the door open for the chamber to dry completely. Warning Indications WARNING Risk of burning! Cookware may be very hot, as high temperature from food is being radiated.
  • Page 21 Installation and operation Starting Up / Setting Modes 1. Check before use that the thermal processing chamber is clean, the door seals are free of foreign matter and that the door closes securely. 2. Plug the appliance into a suitable single socket. Switching On –...
  • Page 22 Installation and operation – By rotating the rotary control knob the thermal processing time can be set to max. 60 minutes. – The appliance automatically starts heating up or defrosting 2 seconds later. A long beep at the end of the set thermal processing time reminds that the thermal processing time is over.
  • Page 23 Installation and operation NOTE! As soon as the thermal processing time is set, the heating-up or defrosting process begins. An acoustic signal is heard when the set time elapses. 8. Use the door handle to open the appliance door and remove the food. 9.
  • Page 24: Cleaning

    Cleaning An entire meal can thus be quickly and easily prepared. Delicate foods Delicate foods such as pate / cakes, cream, cheese or bread should be only partially defrosted, and the defrosting process should be finished at room temperature. In this manner you will avoid a situation where the food is too hot on the outside while still frozen on the inside.
  • Page 25: Cleaning

    Cleaning Cleaning 1. Clean the appliance regularly at the end of each working day, or more frequently, if needed. 2. Thoroughly remove all food left-overs and beverage remains from internal walls and ceramic bottom with a soft and damp cloth. With extensive soiling you may use a mild cleaning agent.
  • Page 26 Cleaning Filter Cleaning 1. Regularly clean the dust filter at the front bottom of the appliance. 2. Remove the filter as described below. 3. Rotate metal nails to the right and 4. Remove the dust filter. left, counter-clockwise, to loosen 5.
  • Page 27: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche Standard Interference Radio and TV reception can be interfered with when Microwave unit microwave units are in operation. The same is true for interferes with TV small electrical appliances such as a mixers, vacuum reception cleaners or fans.
  • Page 28: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
