Summary of Contents for Bartscher W3B-1

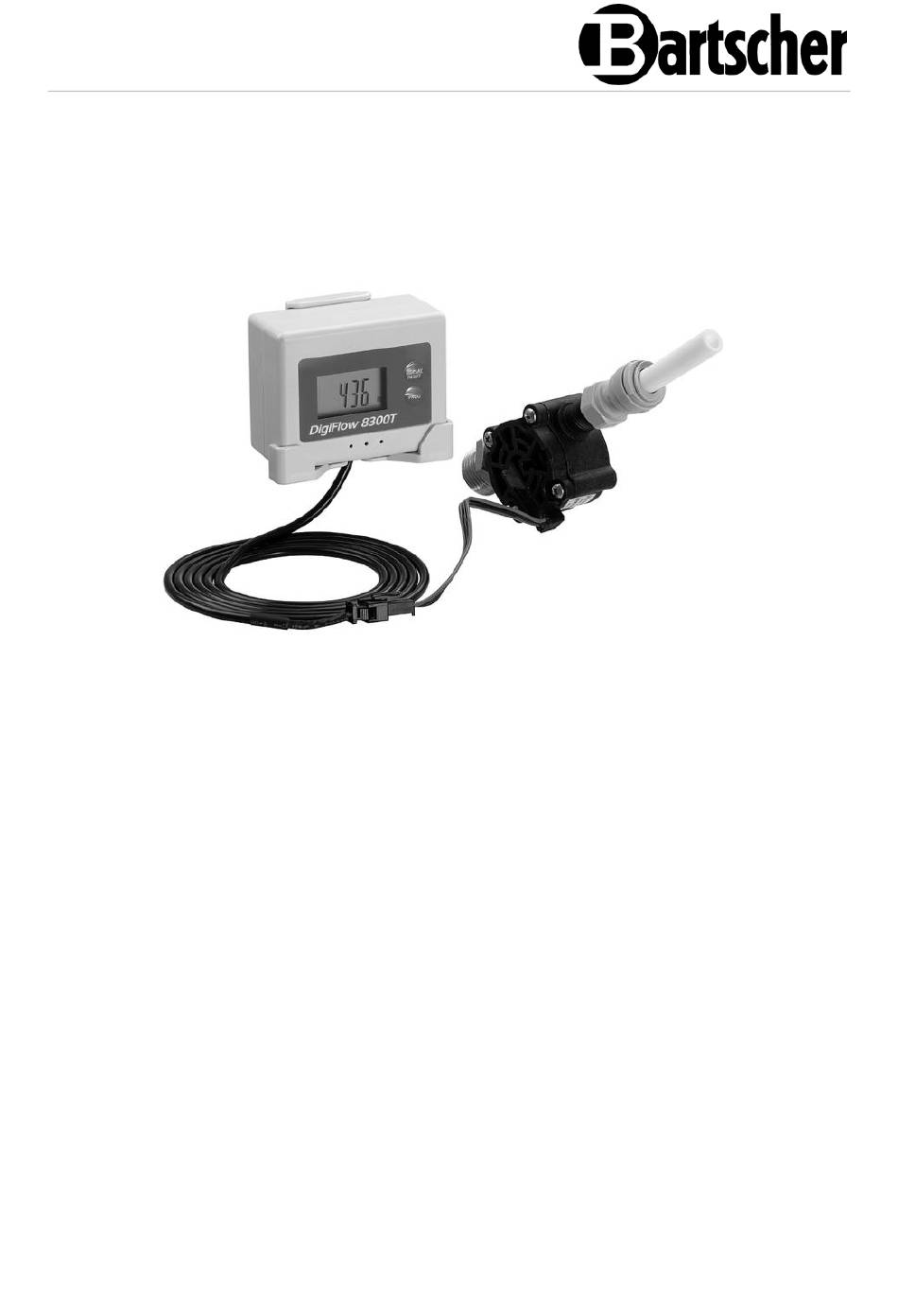

- Page 1 W3B-1 109849...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-08-26 Original instruction manual...
- Page 3 General Information / Scope of Use Water meter W3B-1 is an optimal combination with the water filtration system K3600L. Water metre is used for measuring the amount of water used and for displaying filter capacity remaining until the exchange point.
- Page 4 Equipment included Fig. 1 1. Control panel 2. Battery compartment 3. Wall holder for the control panel 4. Cord 5. ¼" adapter for plastic pipe Ø10 mm 6. Sensor unit 7. ¼" to 1/8” adapter 4 / 8 109849...
- Page 5 Indications and Tips • Before commissioning, read these operating instructions carefully to avoid personal injuries and property damage. Improper use may cause damage. • Follow all installation and setting instructions. • Use only commercially available AA type batteries (2 pcs). •...
- Page 6 Settings Fig. 2 Setting capacity and time, after which an alarm indicating the need for water filter cartridge replacement will be shown. The device may be configured to count the water flow down from the set amount to 0 and/or the device may be configured so that it counts the number of days down from the set filling level to 0.
- Page 7 Setting Capacity 1. Press DISPLAY/RESET key to confirm the capacity. The values available for setting are: OFF, 500, 1,000, 1,500, 2,000, …, 100,000 litres. 2. Then press DISPLAY/RESET key to save the setting and move to the next step. Time Setting: 1.
- Page 8 Alarms When the remaining volume of water reaches 100 litres or the remaining number of days falls below 7, the device informs you during operation that the end of capacity is approaching through a repeated beep and a blinking display. When the remaining water volume drops to 0 litres or the remaining number of days drops to 0, the device also indicates the end of capacity through repeated beeps and a blinking display.
