Summary of Contents for Bartscher WB1001

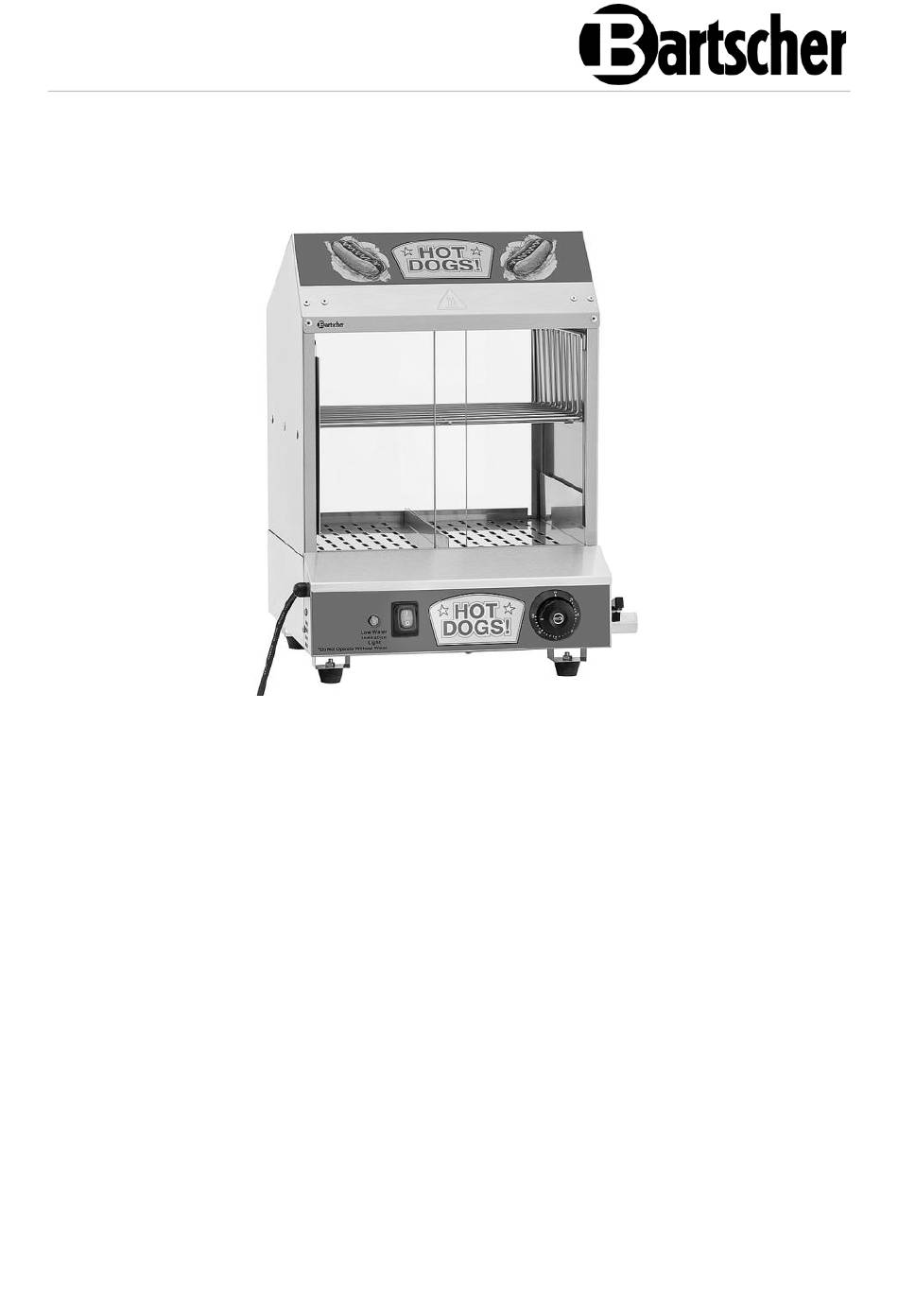

- Page 1 WB1001 120417...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 D-33154 Salzkotten Technical Support Hotline: +49 5258 971-197 Germany www.bartscher.com Version: 1.0 Date of preparation: 2024-03-20...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Inform ationsquelle und N achschl agew erk. Di e Kenntnis aller enthaltenen Sic herheits hinw eis e und H andlungs anw eisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfallv erhütungsv orsc hriften und allgem einen Sicherheits bestimmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und m uss i n unmittelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, W artungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt w erden. W enn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Hot Surfaces • Surfaces of the appliance become hot during operation. Burning hazard! High temperature remains for some time after switching the appliance off. • Do not touch any hot surfaces of the appliance. Use the provided handling elements and holders. •...
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Gentle heating of rolls and sausages using steam Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data
Technical Data Technical Data Technical Specifications Name: Hot Dog Steamer WB1001 120417 Art. No.: Material: stainless steel up to 100 hot dog sausages | up to 15 Volume: hot dog rolls Water tank volume, in L: 4,4 - 9,2 Heating-up time when filled with 60°C water | 9.2 L, in minutes approx.:... -
Page 12: Functions Of The Appliance
Technical Data Version / characteristics • Control: rotary control knob • Temperature control: thermostatic | stepless • ON/OFF switch • Door type: sliding door • Door material: glass • Water tray for air humidification • Indicator lights: – adding water –... -
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Housing 2. Grate 3. Perforated plates (2x) 4. Water drain tap 5. Ventilation openings 6. Feet (4x) 7. Temperature controller 8. ON/OFF switch with integrated power indicator light (green) 9. -
Page 14: Installation And Operation
Installation and operation Installation and operation Installation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. -
Page 15: Operation
Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •... - Page 16 Installation and operation No water indicator light ATTENTION! During operation regularly check water level in the water tray. Always pour the appropriate volume of water to maintain the required water level. The appliance should not run dry. In the water tray there is a float switch in a pipe. When the water level is too low, the no water indicator light is lit solid.
- Page 17 Installation and operation 5. Place the required number of hot- dog sausages. Arrange them on the perforated plates in the bottom part of the appliance. 6. Place the required number of hot- dog rolls on the grill grate in the top part of the hot-dog steamer.
-
Page 18: Cleaning
Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet. -
Page 19: Possible Malfunctions
Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate. -
Page 20: Disposal
Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
