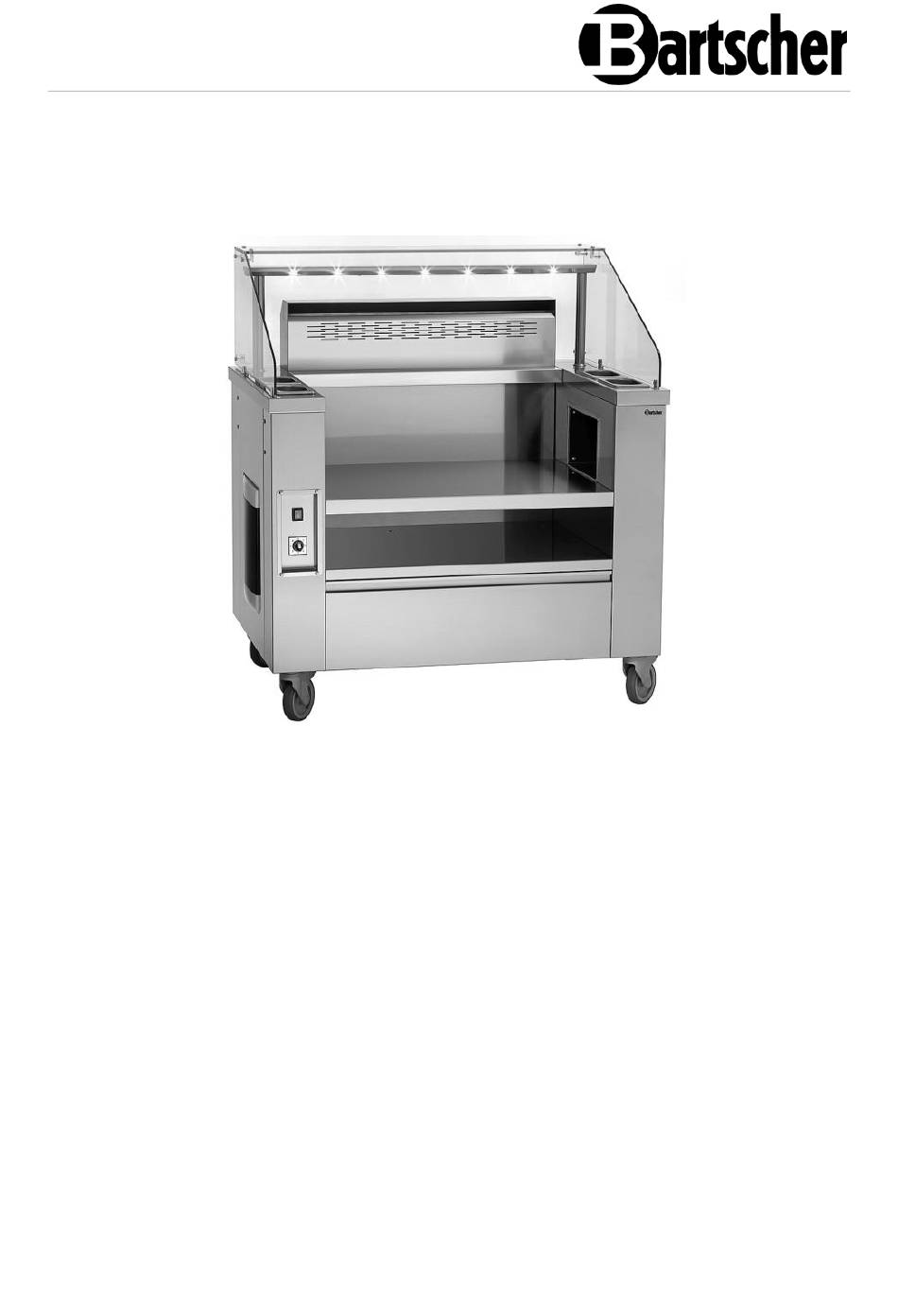

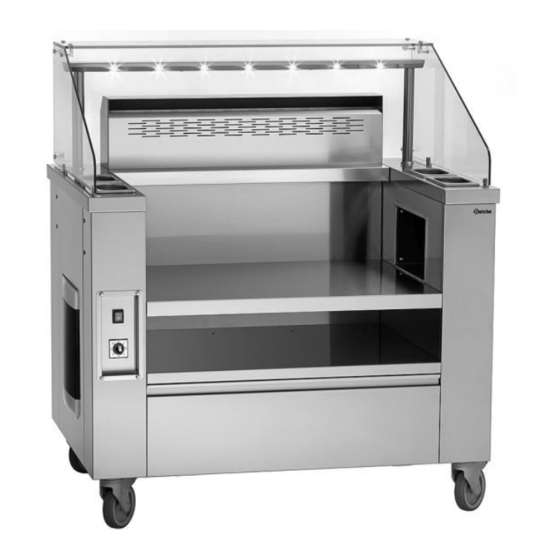

  • Page 1 KST2200 Plus 107300...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-02-15...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hi nweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety • Children should be supervised to ensure that they are not playing with or switching on the appliance. Supervised Usage only • Only supervised appliance may be used. • Always remain in an immediate vicinity of the appliance. Improper Use •...

  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – concurrent usage of 2 suitable cookware pieces in front of the guests. Unintended Use An unintended use may lead to personal injuries or property damages caused by hazardous voltage, fire or high temperature.

  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 11: Technical Data

    Technical Data Technical Data Technical Specifications Front cooking station KST2200 Name: Plus 107300 Art. No.: Material: CNS 18/10 Dimensions of glass top (W x D x H), in 1.075 x 740 x 345 Number of utility niches: Utility niche surface dimensions (W x D x 805 x 600 H), in mm: Sockets:...

  • Page 12: Functions Of The Appliance

    – tray slide shelf Functions of the Appliance The mobile cooking station KST2200 Plus was designed for professional use. Owing to the possibility of using even 2 suitable appliances, the appliance is very versatile in use in catering, for events, as well as for cooking in front of the guests.

  • Page 13: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance Fig. 1 107300 11 / 30...
  • Page 14 Technical Data Description for Fig. 1 1. Ventilation with labyrinth filter (2 pcs) 2. LED lighting strip 3. Mains sockets, left + right side 4. Sneeze guard 5. Glass top 6. GN containers shelves (4 pcs) 7. Utility niche on the appliance 8.
  • Page 15 Technical Data Auxiliary Equipment (not included in the scope of delivery) Platform 100 KST Plus Nickel-chrome steel 18/10 Dimensions: W 400 x D 595 x H 100 mm Weight: 3.08 kg Art. No. 107276 Fig. 3 Platform 200 KST Plus Nickel-chrome steel 18/10 Dimensions: 400 x D 595 x H 200 mm Weight: 7.37 kg...
  • Page 16 Fig. 8 Art. No. 107291 Combinations of Appliances for Cooking Station The following Bartscher appliance may be used with the cooking station: Appliances That May Be Used Without Platform: • Electric cooker, 2 plates, without chimney – 650 Snack series, Art. No. 115006 (available on demand) •...

  • Page 17: Installation And Operation

    Installation and operation Appliances That Require Usage with Platform 100 KST Plus: • Induction wok IW 35 PRO-2, Art. No. 105732 • Induction wok, Art. No. 105840 • Induction wok, Art. No. 105871 • Induction wok, Art. No. 105872 Appliances That Require Usage with Platform 200 KST Plus: •...
  • Page 18 Installation and operation Unpacking / Positioning • Unpack the appliance, remove all external and internal packaging elements and shipment safeguards. CAUTION! Choking hazard! Prevent children from accessing package materials, for instance: plastic bags and EPS. • If the appliance is covered with a protective film, remove it. Remove the film slowly, so no glue residues are left.
  • Page 19 Installation and operation Glass Top Assembly 1. Install the glass top on the housing of the cooking station, observing the following instructions: 2. Glass elements on the left and right side, and at the back, stick in glass fittings on the housing of the cooking station.
  • Page 20 Installation and operation 1. Fix 2 brackets (A) (included in delivery of the side shelf), using delivered spacers and bolts, on the right and/or left side of the cooking station (availably by factory default). 2. Place the side shelf onto the brackets (B). If the side shelf is not used, it may simply be closed (C).
  • Page 21 Installation and operation Preparation of the Appliance 1. Clean the appliance observing indications in Section 6 'Cleaning'. 2. Using suitable transport means, set the cooking station in a selected location. Fig. 13 Electric connection • Connect the appliance to an electric mains installation according to the valid international, national, and local regulations.

  • Page 22: Operation

    Operation Equipment of the Cooking Station with Appliances and Accessories You may use the KST2200 Plus cooking station as a mobile kitchen or for the purpose of presentation; it may also be equipped concurrently with up to 2 table-top appliances.
  • Page 23 Installation and operation 2. Insert the grease collection tray in the appliance that is under the right hand-side wall of the cooking station. Fig. 15 3. In supports in the left and right frame set 2 containers GN 1/9, 100 mm deep. The GN containers are provide for olives, sauces and cutlery.
  • Page 24 Installation and operation The cooking station is provided with ventilation with integrated filtering system, which extracts vapours generated during cooking. 4. Using the suitable switch (16, Fig. 14), switch the appliance's fan off. 5. Select fan speed according to the needs, referencing to the following table. Level Inflow air power When to use it...

  • Page 25: Cleaning

    Cleaning Cleaning Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning. Do not clean the appliance with a pressurized water jet.
  • Page 26 Cleaning Daily Cleaning 1. At the end of a working day, clean the appliance. 2. Follow indications provide in the below illustrations: Prohibited products Allowed products Fig. 17 Fig. 18 24 / 30 107300...
  • Page 27 Cleaning Labyrinth Filter Cleaning Fig. 19 107300 25 / 30...
  • Page 28 Cleaning Zeolite Filter Cleaning Fig. 20 26 / 30 107300...
  • Page 29 Cleaning Activated Carbon Filtering Mat Cleaning Fig. 21 107300 27 / 30...

  • Page 30: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. Error Possible Cause Solution Appliance does not The plug is not properly Remove the plug and insert it switch on...

This manual is also suitable for:

107300
