9. Connect the pallet sensor cables to the Robotiq control box. Follow cable labeling and
connector identification.

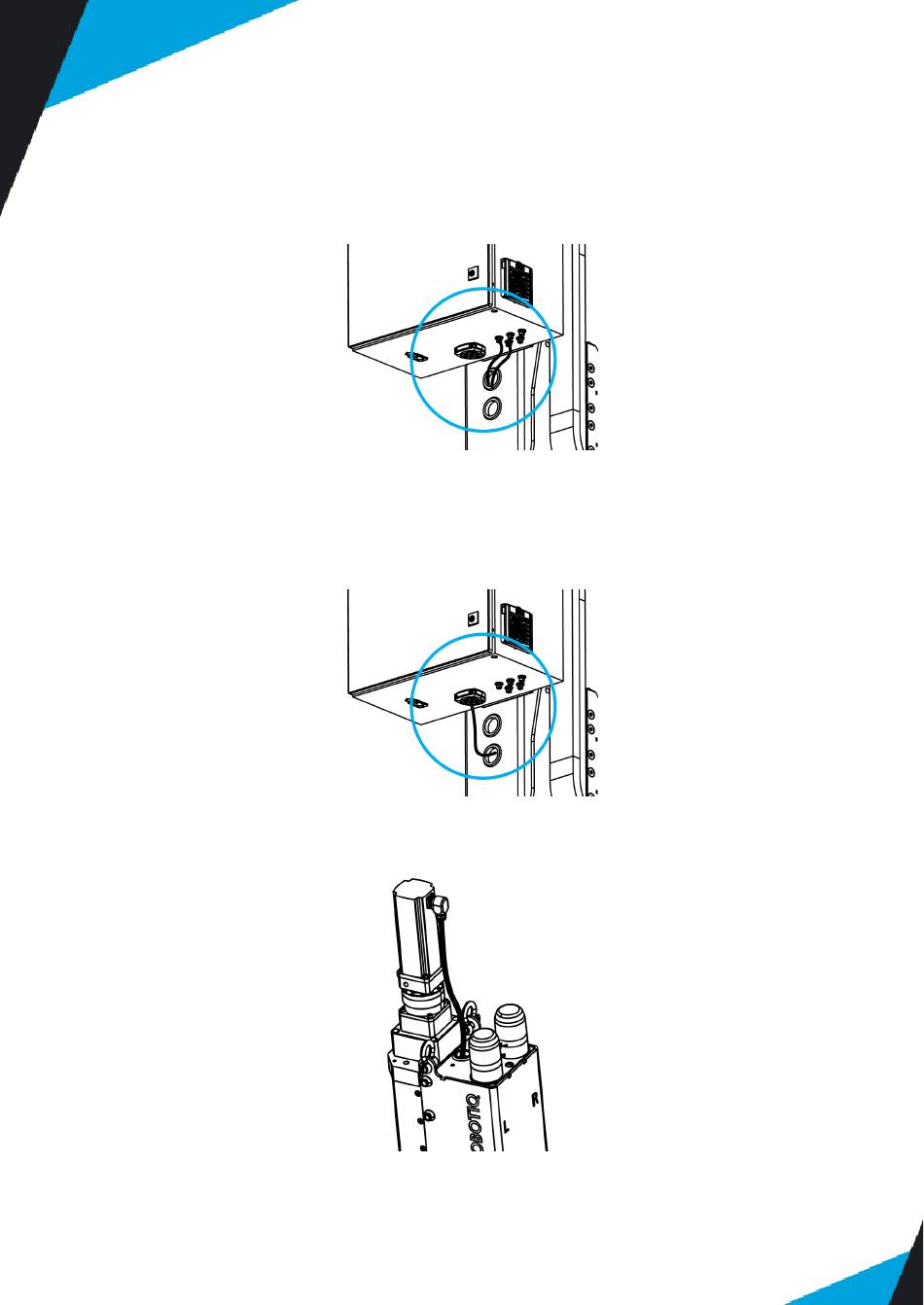

10. Push the linear axis cable into the column via hole #5 and bring it out at the top of
the column. If needed, use the preinstalled fishing line to pull the cable through.
11. Connect the motor cable to the motor on the top of the linear axis.
