USER MANUAL

PC02010009

PRODUCT CODE:

Need help?

Do you have a question about the Abilize Cobas and is the answer not in the manual?

Questions and answers

Summary of Contents for CareCo Abilize Cobas

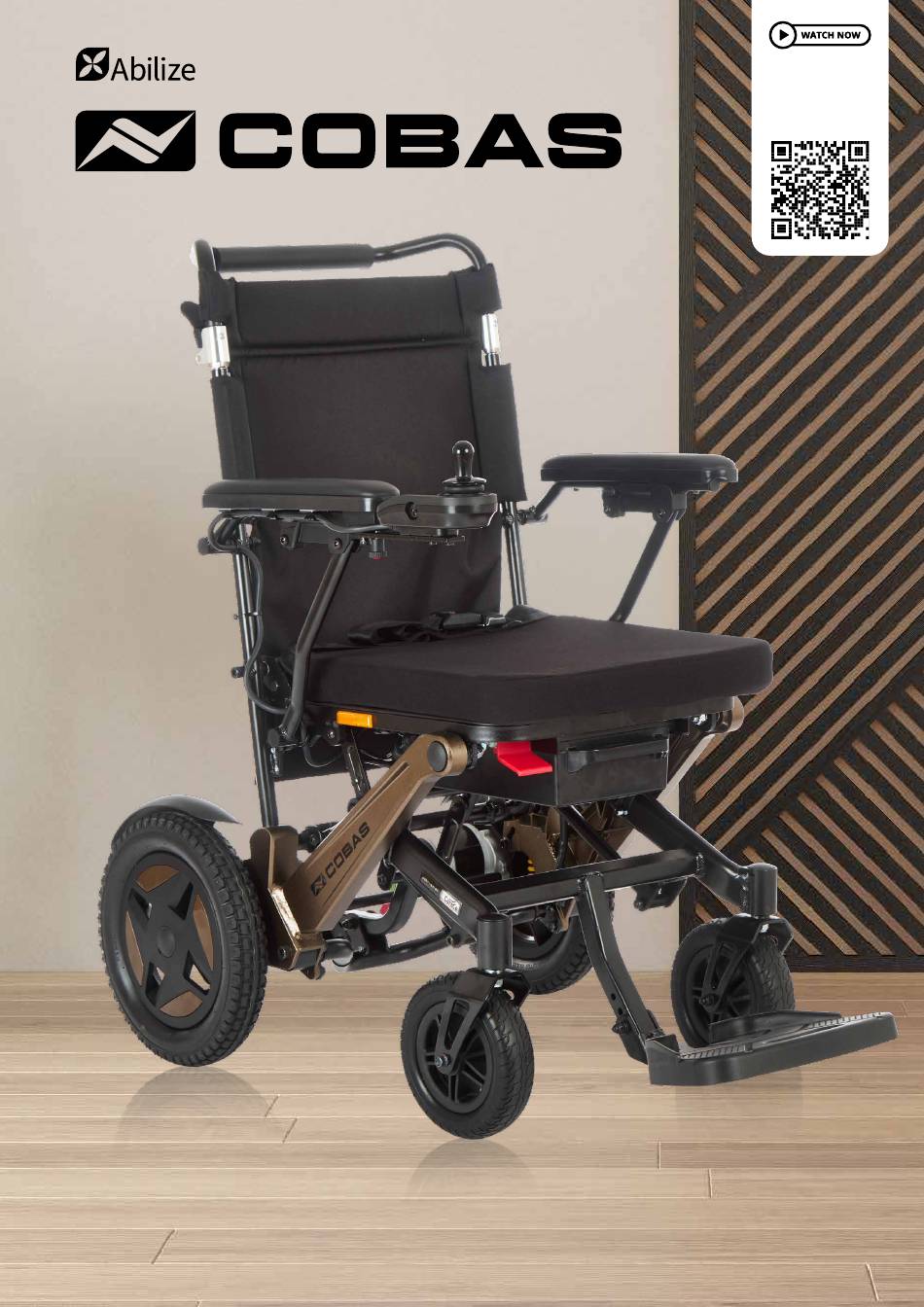

Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL PC02010009 PRODUCT CODE:...
Page 2 The Cobas Powerchair has been designed to provide a comfortable and safe solution for users who have difficulty in walking for extended periods of time. Due to CareCo’s commitment to continuous product improvement, product information and designs are subject to change without notice. No claims can be made based on the data or illustrations in this user manual.
Page 3 Operate the powerchair at a lower speed before gradually increasing to a higher speed. If any additional assembly, disassembly and/or operation assistance is required, please contact CareCo. Keep this user manual in a safe place for future reference. KEY DEFINITIONS...
Page 4 PC02010009 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR COBAS POWERCHAIR HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS BRAKING TYPES BRAKING DISTANCE JOYSTICK CONTROLS JOYSTICK JOYSTICK CHARGING SOCKET CIRCUIT BREAKER ARMRESTS HALF-FOLDING BACKREST SAFETY BELT FOOTPLATE POWERCHAIR MODES EMERGENCY BRAKING YOUR POWERCHAIR BATTERY...
Page 5 COMFORT ADJUSTMENTS FOOTPLATE HEIGHT OPTIONAL EXTRAS POWERCHAIR ACCESSORY PACK LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS CLEANING MAINTENANCE MAINTENANCE SCHEDULE REPAIRS TROUBLESHOOTING WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) PROGRAMMING PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED USER INTENDED ENVIRONMENT PRODUCT IDENTIFICATION GENERAL WARNINGS EXPECTED LIFETIME...
Page 6 PC02010009 PRODUCT CODE GETTING STARTED CARTON CONTENTS Contact CareCo immediately ITEM NUMBER DESCRIPTION QUANTITY if any of the listed contents Cobas Powerchair are missing. Battery Pack We strongly recommend that Charger you keep the box and internal Off-Board Charging Adapter...
Page 7 SETTING UP YOUR COBAS POWERCHAIR 1. Remove all powerchair components from 2. Place the folded powerchair upright. the outer packaging and place them onto a level surface. 3. Lift and hold the red seat lever, then 4. An audible “click” will confirm the gradually separate the backrest and base powerchair is secure.
Page 8 PC02010009 PRODUCT CODE 5. Place the seat cushion onto the 6. Unfold the footplate. powerchair’s seat base. 7. Pull the battery pin whilst inserting the 8. Charge the powerchair for 8-12 hours battery into the lower frame holder. before first use. An audible “click”...
Page 9 HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS TRANSFERRING TO & FROM Always ensure the powerchair is switched [OFF] and in [DRIVE] mode before getting on/off the powerchair. METHOD 1 TRANSFER TO Position your body as close to the powerchair as possible. Support your body using the armrests, before lowering into the seat.
Page 10 PC02010009 PRODUCT CODE GRADIENTS Ascending Gradients Tilt your upper body forward when travelling up gradients for increased stability. Descending Gradients Tilt your upper body back when travelling down gradients for increased stability. The maximum safe slope of incline is 6°. STAIRS, ESCALATORS AND LIFTS The powerchair is not designed to travel up/down stairs and escalators.
Page 11 BRAKING TYPES REGENERATIVE BRAKING • Slows the powerchair when the joystick returns to the centre position. • Slows the powerchair when the speed limiter is exceeded. PARKING BRAKE • Activates after the powerchair has come to a stop. • Activates when the powerchair is in [DRIVE] mode and switched [OFF]. BRAKING DISTANCE On flat surfaces, braking distance is approximately equal to the length of the powerchair.
Page 12 PC02010009 PRODUCT CODE JOYSTICK CONTROLS Speed Settings JOYSTICK 0-6km/h 0-5.5km/h BATTERY GAUGE 0-5km/h HORN 0-4.5km/h ON/OFF BUTTON SPEED CONTROL 0-4km/h DIAL ON/OFF BUTTON BATTERY GAUGE Displays the battery level status. Push to activate or deactivate the powerchair. HORN SPEED CONTROL DIAL Push to sound the horn.
Page 13 JOYSTICK The joystick is used to control the powerchair’s movement including its speed and direction (forwards, backwards, left, and right). The further the user pushes the joystick from the central position, the faster the powerchair moves. When the user releases the joystick, it will return to the centre and the brake will automatically engage.
Page 14 PC02010009 PRODUCT CODE CIRCUIT BREAKER The battery pack is equipped with a circuit breaker to protect the motor and other components in case of a power overload. If the powerchair overloads, the power will turn off. To reactivate the powerchair: 1.
Page 15 ARMRESTS The powerchair armrests can be folded upwards to assist the user in transferring, transporting and when sitting at a desk or table. LIFTING 1. Push and hold the grey button to release the armrest from the holder. 2. Lift the armrest upwards. LOWERING 1.
Page 16 PC02010009 PRODUCT CODE SAFETY BELT FASTENING RELEASING Insert the male buckle into the female buckle. Press the “PRESS” button while separating to release the safety belt. FOOTPLATE LIFTING Lift the footplate upwards to assist the user when leaving the powerchair and when storing.
Page 17 POWERCHAIR MODES DRIVE MODE FREEWHEEL MODE (ELECTRONIC ASSISTED BRAKING) Lift both red lever(s) upwards to engage the Freewheel Mode. Lower both red lever(s) downwards to en- gage Drive Mode. (The powerchair will be able to be pushed manually). (The powerchair will not be able to be pushed manually).
Page 18 PC02010009 PRODUCT CODE YOUR POWERCHAIR BATTERY BATTERY INSTALLATION & REMOVAL INSTALLING REMOVING Pull the battery pin whilst inserting the Pull the battery pin whilst removing the battery into the lower frame holder. battery from the lower frame holder. An audible “click” will confirm the battery is secure.
Page 19 CHARGING YOUR POWERCHAIR Your Cobas Powerchair battery can be charged on, or away from the powerchair if required. HOW TO CHARGE YOUR POWERCHAIR (VIA JOYSTICK) 1. Connect the charger’s 3-pin output to the socket on the side of the joystick. 2.
Page 20 PC02010009 PRODUCT CODE CHARGING REGIME Maintaining good charging habits for your powerchair will maximize battery life and range per charge. Battery charging times range from 6-8 hours. This is dependent on powerchair usage, ambient temperature, and operating habits. DAILY USE If the powerchair is used daily, charge the battery at the end of each day for 6-8 hours OR until the chargers LED indicator turns green.
Page 21 FOLDING YOUR POWERCHAIR, TRANSPORTATION AND STORAGE FOLDING INSTRUCTIONS WARNING! Ensure the powerchair is switched [OFF] and in [DRIVE] mode before folding. SUGGESTION Place the front wheels in a forward-facing orientation for ease of folding. 1. Fold the footplate upwards. 2. Lift and hold the red seat lever. 3.
Page 22 PC02010009 PRODUCT CODE 5. (Optional) Press and hold the backrest 6. (Optional) Pull the joystick pin, then rotate levers, then fold down the backrest. the joystick inwards.
Page 23 TRANSPORTATION CARRYING Fold the powerchair, then carry it from the footplate/seat carry handle. PULLING ALONG Fold the powerchair, then hold the top of the backrest. Push or pull the powerchair along on its anti-tipper wheels. SUGGESTION Lift from areas that are clear from pinching points to avoid powerchair damage and personal injury.
Page 24 PC02010009 PRODUCT CODE STORING THE POWERCHAIR SHORT TERM STORAGE Store the powerchair in a cool and dry environment. Do not store in extreme temperatures. LONG TERM STORAGE Fully charge the battery before long term storage. Store the powerchair in a cool and dry environment. Do not store in extreme temperatures. Charge the battery once every two weeks to preserve the life of the battery.
Page 25 COMFORT ADJUSTMENTS FOOTPLATE HEIGHT Adjust the footplate height from 3 different settings using simple household tools. 1. Fold the footplate upwards. 2. Remove the footplate fixings from the frame. 3. Lift/lower the footplate until it is at the desired height. 4.
Page 26 POWERCHAIR ACCESSORY PACK The Powerchair Accessory Pack includes everything you need to get started with your electric wheelchair. Includes: • Mobility Poncho • Powerchair Joystick Cover • Gel Comfort Cushion • Crutch Walking Stick Bag Contact CareCo for more information.
Page 27 LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS • Ensure the powerchair is in [DRIVE] mode before setting off. • Ensure the powerchair is switched [OFF] before getting in or out. • Check tyres for wear. • Check all fixings are secure. CLEANING Regular use of the product will accumulate dirt and debris over time.
Page 28 REPAIRS Certain powerchair components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the powerchair requires repair due to a defect, contact CareCo immediately.
Page 29 2. Disconnect, then reconnect the The joystick and/or its associated wir- joystick power cable. ing has a fault. 3. Switch [ON] the powerchair. Contact CareCo. Charge the powerchair for 6-8 hours. Power/Configuration error. Contact CareCo. The LHS motor and/or its associated Contact CareCo.
Page 30 PC02010009 PRODUCT CODE WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS 1055 OVERALL LENGTH (MM) OVERALL WIDTH (MM) 1040 OVERALL HEIGHT (MM) FOLDED LENGTH (MM) FOLDED WIDTH (MM) FOLDED HEIGHT (MM) FRONT WHEEL DIAMETER (IN) 12.6 REAR WHEEL DIAMETER (IN) 29.5 TOTAL WEIGHT INCLUDING BATTERIES (KG) MAXIMUM SPEED (MPH) MAXIMUM REVERSE SPEED (MPH) WEIGHT CAPACITY (KG)
Page 31 ELECTROMAGNETIC INTERFERENCE (EMI) Powerchairs and mobility scooters may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the powerchair/mobility scooter to release its brakes, move by itself, or move in unintended directions.
Page 32 Electrical and Electronic Equipment policies (W.E.E.E). For battery disposal, users should follow local disposal/recycling regulations. Contact CareCo if further advice is needed regarding recycling & disposal. INTENDED USE This product is intended for users who experience difficulty in walking and/or have reduced mobility.
Page 33 PRODUCT IDENTIFICATION The product identification label is located underneath the seat. 850017 490574 DEFINITIONS Model number Refer to instruction manual Batch code Caution Date of manufacturer Indicates electrical / electronic equipment must be disposed of in accordance with the WEEE regulation Manufacturer’s address Keep away from rain Product expiry date...
Page 34 GENERAL WARNINGS • Powerchair users should take appropriate safety measures and obey local pedestrian traffic rules. CareCo are not responsible for personal injury and/or product damage caused by improper use. • Use safety equipment such as reflectors, reflective clothing, and lighting when in low lit areas.
Page 35 EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the powerchair is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime. WEIGHT CAPACITY: EXTERNAL CONDITIONS: If the user exceeds the weight limit specified,...
Page 36 Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the powerchair requires repair or replacement as a direct result of: •...
Page 37 NOTES...
Page 38 2411-02 CareCo (UK) Limited, 1 Turing Court, Tel: 0333 015 5000 Great Notley, Braintree, CM77 7AT www.CareCo.co.uk...
