USER MANUAL
PC02010010
PRODUCT CODE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stratus Powerchair and is the answer not in the manual?

Questions and answers

Summary of Contents for CareCo Stratus Powerchair

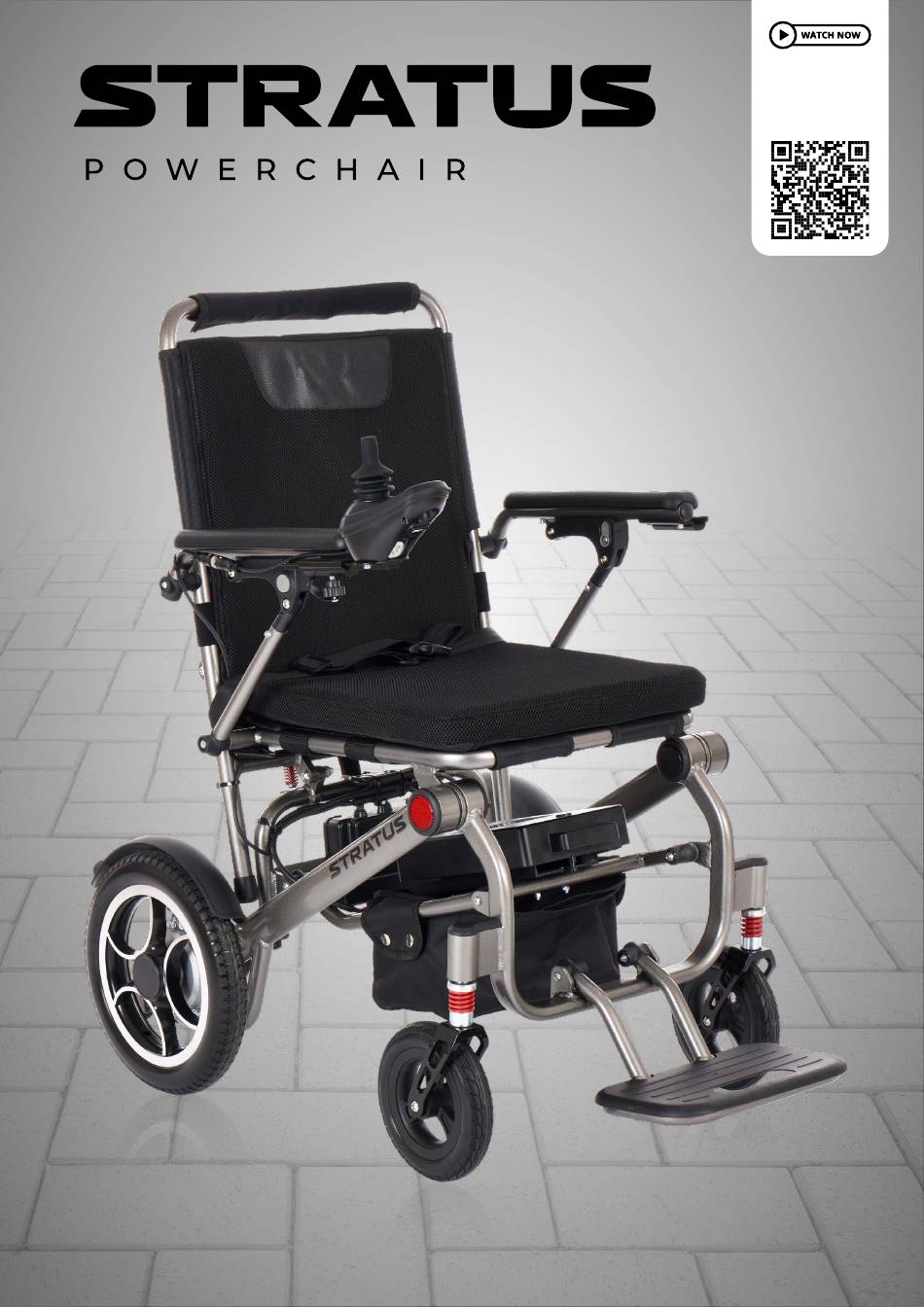

  • Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL PC02010010 PRODUCT CODE:...
  • Page 2 No claims can be made based on the data or illustrations in this user manual. The Stratus Powerchair is a Class I Medical Device, Class A: Powered Wheelchair, limited to a maximum speed of 4MPH.
  • Page 3: Before Use

    Operate the powerchair at a lower speed before gradually increasing to a higher speed. If any additional assembly, disassembly and/or operation assistance is required, please contact CareCo. Keep this user manual in a safe place for future reference. KEY DEFINITIONS...
  • Page 4 PC02010010 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR STRATUS POWERCHAIR HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS BRAKING TYPES BRAKING DISTANCE JOYSTICK CONTROLS JOYSTICK CHARGING SOCKET USB PORT ARMRESTS SAFETY BELT FOOTPLATE POWERCHAIR MODES EMERGENCY BRAKING YOUR POWERCHAIR BATTERY BATTERY INSTALLATION &...
  • Page 5 COMFORT ADJUSTMENTS JOYSTICK POSITION ENABLING/DISABLING THE JOYSTICK REVERSE SOUND OPTIONAL EXTRAS POWERCHAIR ACCESSORY PACK LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS CLEANING MAINTENANCE MAINTENANCE SCHEDULE REPAIRS TROUBLESHOOTING WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) PROGRAMMING PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED USER INTENDED ENVIRONMENT...
  • Page 6: Getting Started

    PC02010010 PRODUCT CODE GETTING STARTED CARTON CONTENTS Contact CareCo immediately if ITEM NUMBER DESCRIPTION QUANTITY any of the listed contents Stratus Powerchair are missing. Battery Pack We strongly recommend that Joystick Assembly you keep the box and internal Charger packaging for the duration of User Manual your warranty period.
  • Page 7 SETTING UP YOUR STRATUS POWERCHAIR 1. Remove all powerchair components from 2. Place the folded powerchair upright. the outer packaging and place them onto a level surface. 3. Gradually separate the backrest and base 4. An audible “click” will confirm the sections to open the powerchair.
  • Page 8 PC02010010 PRODUCT CODE 5. Insert the joystick assembly into the 6. Connect the joystick cables together. bracket on the underside of the armrest, then secure using the bolt provided. 7. Unfold the footplate. 8. Insert the battery into the battery slot.
  • Page 9 9. Charge the battery for 8-12 hours before first use. SUGGESTION Subsequent charging times range from 6-8 hours. Visit “Charging your Powerchair” for more information.
  • Page 10 PC02010010 PRODUCT CODE HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS TRANSFERRING TO & FROM Always ensure the powerchair is switched [OFF] and in [DRIVE] mode before getting on/off the powerchair. METHOD 1 TRANSFER TO Position your body as close to the powerchair as possible.
  • Page 11 GRADIENTS ASCENDING GRADIENTS Tilt your upper body forward when travelling up gradients for increased stability. DESCENDING GRADIENTS Tilt your upper body back when travelling down gradients for increased stability. The maximum safe slope of incline is 6°. STAIRS, ESCALATORS AND LIFTS The powerchair is not designed to travel up/down stairs and escalators.
  • Page 12 PC02010010 PRODUCT CODE BRAKING TYPES REGENERATIVE BRAKING • Slows the powerchair when the joystick returns to the centre position. • Slows the powerchair when the speed limiter is exceeded. PARKING BRAKE • Activates after the powerchair has come to a stop. •...
  • Page 13: Joystick Controls

    JOYSTICK CONTROLS Speed Settings BATTERY ON/OFF GAUGE BUTTON SPEED 0-6km/h SPEED INCREASE DECREASE HORN SPEED 0-5.5km/h INDICATOR 0-5km/h 0-4.5km/h JOYSTICK 0-4km/h ON/OFF BUTTON SPEED INDICATOR Push to activate or deactivate the powerchair. Displays the powerchair’s speed setting. BATTERY GAUGE HORN Displays the battery level status.
  • Page 14 PC02010010 PRODUCT CODE JOYSTICK The joystick is used to control the powerchair’s movement including its speed and direction (forwards, backwards, left, and right). The further the user pushes the joystick from the central position, the faster the powerchair moves. When the user releases the joystick, it will return to the centre and the brake will automatically engage.
  • Page 15: Safety Belt

    ARMRESTS The powerchair armrests can be folded upwards to assist the user in transferring, transporting and when sitting at a desk or table. LIFTING 1. Push and hold the grey button to release the armrest from the holder. 2. Lift the armrest upwards. LOWERING 1.
  • Page 16 PC02010010 PRODUCT CODE FOOTPLATE LIFTING Lift the footplate upwards to assist the user when leaving the powerchair and when storing. LOWERING Lower the footplate to assist the user when travelling in the powerchair.
  • Page 17: Emergency Braking

    POWERCHAIR MODES DRIVE MODE FREEWHEEL MODE (ELECTRONIC ASSISTED BRAKING) Lower both red lever(s) downwards to engage the Freewheel Mode. Lift both red lever(s) upwards to engage Drive Mode. (The powerchair will be able to be pushed manually). (The powerchair will not be able to be pushed manually).
  • Page 18: Battery Installation And Removal

    PC02010010 PRODUCT CODE YOUR POWERCHAIR BATTERY BATTERY INSTALLATION & REMOVAL INSTALLING REMOVING Insert the battery into the lower frame Press and hold the battery release button holder. whilst lifting the battery. An audible “click” will confirm the battery The battery will release from the is secure.
  • Page 19 CHARGING YOUR POWERCHAIR Your Stratus Powerchair battery can be charged on, or away from the powerchair if required. HOW TO CHARGE YOUR POWERCHAIR (VIA JOYSTICK) 1. Connect the charger’s 3-pin output to the socket on the underside of the joystick.
  • Page 20: Charger Information

    PC02010010 PRODUCT CODE CHARGING REGIME Maintaining good charging habits for your powerchair will maximize battery life and range per charge. Battery charging times range from 6-8 hours. This is dependent on powerchair usage, ambient temperature, and operating habits. DAILY USE If the powerchair is used daily, charge the battery at the end of each day for 6-8 hours OR until the chargers LED indicator turns green.
  • Page 21: Folding Instructions

    FOLDING YOUR POWERCHAIR, TRANSPORTATION AND STORAGE FOLDING INSTRUCTIONS WARNING! Ensure the powerchair is switched [OFF] and in [DRIVE] mode before folding and/or transporting. 1. Fold the footplates upwards. 2. Lift the folding lever at the rear of the powerchair whilst pushing the backrest forwards.
  • Page 22 PC02010010 PRODUCT CODE TRANSPORTATION CARRYING Fold the powerchair, then carry it from the footplate/seat carry handle. PULLING ALONG Push or pull the powerchair along on its anti-tipper wheels. SUGGESTION Lift from areas that are clear from pinching points to avoid powerchair damage and personal injury.
  • Page 23 STORING THE POWERCHAIR SHORT TERM STORAGE Store the powerchair in a cool and dry environment. Do not store in extreme temperatures. LONG TERM STORAGE Fully charge the battery before long term storage. Store the powerchair in a cool and dry environment. Do not store in extreme temperatures. Charge the battery once every two weeks to preserve the life of the battery.
  • Page 24: Comfort Adjustments

    PC02010010 PRODUCT CODE COMFORT ADJUSTMENTS JOYSTICK POSITION 1. Loosen the securing knob by rotating it anticlockwise 2. Move the joystick outwards/inwards until it is in a suitable and comfortable position. 3. Tighten the securing knob by rotating it clockwise. WARNING! Ensure the joystick bracket is secure before using the powerchair. ENABLING/DISABLING THE JOYSTICK REVERSE SOUND 1.
  • Page 25: Optional Extras

    POWERCHAIR ACCESSORY PACK The Powerchair Accessory Pack includes everything you need to get started with your electric wheelchair. Includes: • Mobility Poncho • Powerchair Joystick Cover • Gel Comfort Cushion • Crutch Walking Stick Bag Contact CareCo for more information.
  • Page 26: Looking After Your Powerchair

    PC02010010 PRODUCT CODE LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS • Ensure the powerchair is in [DRIVE] mode before setting off. • Ensure the powerchair is switched [OFF] before getting in or out. • Check tyres for wear. • Check all fixings are secure. CLEANING Regular use of the product will accumulate dirt and debris over time.
  • Page 27: Maintenance Schedule

    REPAIRS Certain powerchair components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the powerchair requires repair due to a defect, contact CareCo immediately.
  • Page 28: Troubleshooting

    POSSIBLE REMEDY The battery voltage is too low. Charge the battery for 6-8 hours. The LHS Motor and/or its associated Contact CareCo. wiring has a fault. 1 Switch [OFF] the powerchair. 2. Place the LHS brake in [DRIVE] mode. The LHS Brake is in [FREEWHEEL] mode.
  • Page 29: Specifications

    WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH (MM) OVERALL WIDTH (MM) OVERALL HEIGHT (MM) FOLDED LENGTH (MM) FOLDED WIDTH (MM) FOLDED HEIGHT (MM) FRONT WHEEL DIAMETER (IN) REAR WHEEL DIAMETER (IN) TOTAL WEIGHT INCLUDING BATTERIES (KG) MAXIMUM SPEED (MPH) WEIGHT CAPACITY (KG) GROUND CLEARANCE (MM) MAXIMUM CLIMBABLE ANGLE (°) MAXIMUM CURB HEIGHT CLIMBABLE (MM)
  • Page 30: Electromagnetic Interference (Emi)

    PC02010010 PRODUCT CODE ELECTROMAGNETIC INTERFERENCE (EMI) Powerchairs and mobility scooters may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the powerchair/mobility scooter to release its brakes, move by itself, or move in unintended directions.
  • Page 31: Recycling And Disposal

    Electrical and Electronic Equipment policies (W.E.E.E). For battery disposal, users should follow local disposal/recycling regulations. Contact CareCo if further advice is needed regarding recycling & disposal. INTENDED USE This product is intended for users who experience difficulty in walking and/or have reduced mobility.
  • Page 32: Product Identification

    PC02010010 PRODUCT CODE PRODUCT IDENTIFICATION The product identification label is located on the frame underneath the seat. DEFINITIONS Model number Refer to instruction manual Batch code Caution Date of manufacturer Indicates electrical/electronic equipment must be disposed of in accordance with the WEEE regulation Manufacturer’s address Keep away from rain...
  • Page 33: General Warnings

    GENERAL WARNINGS • Powerchair users should take appropriate safety measures and obey local pedestrian traffic rules. CareCo are not responsible for personal injury and/or product damage caused by improper use. • Use safety equipment such as reflectors, reflective clothing, and lighting when in low lit areas.
  • Page 34: Expected Lifetime

    PC02010010 PRODUCT CODE EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the powerchair is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime.
  • Page 35: Warranty

    Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the powerchair requires repair or replacement as a direct result of: •...
  • Page 36 2411-01 CareCo (UK) Limited, 1 Turing Court, Tel: 0333 015 5000 Great Notley, Braintree, CM77 7AT www.CareCo.co.uk...
