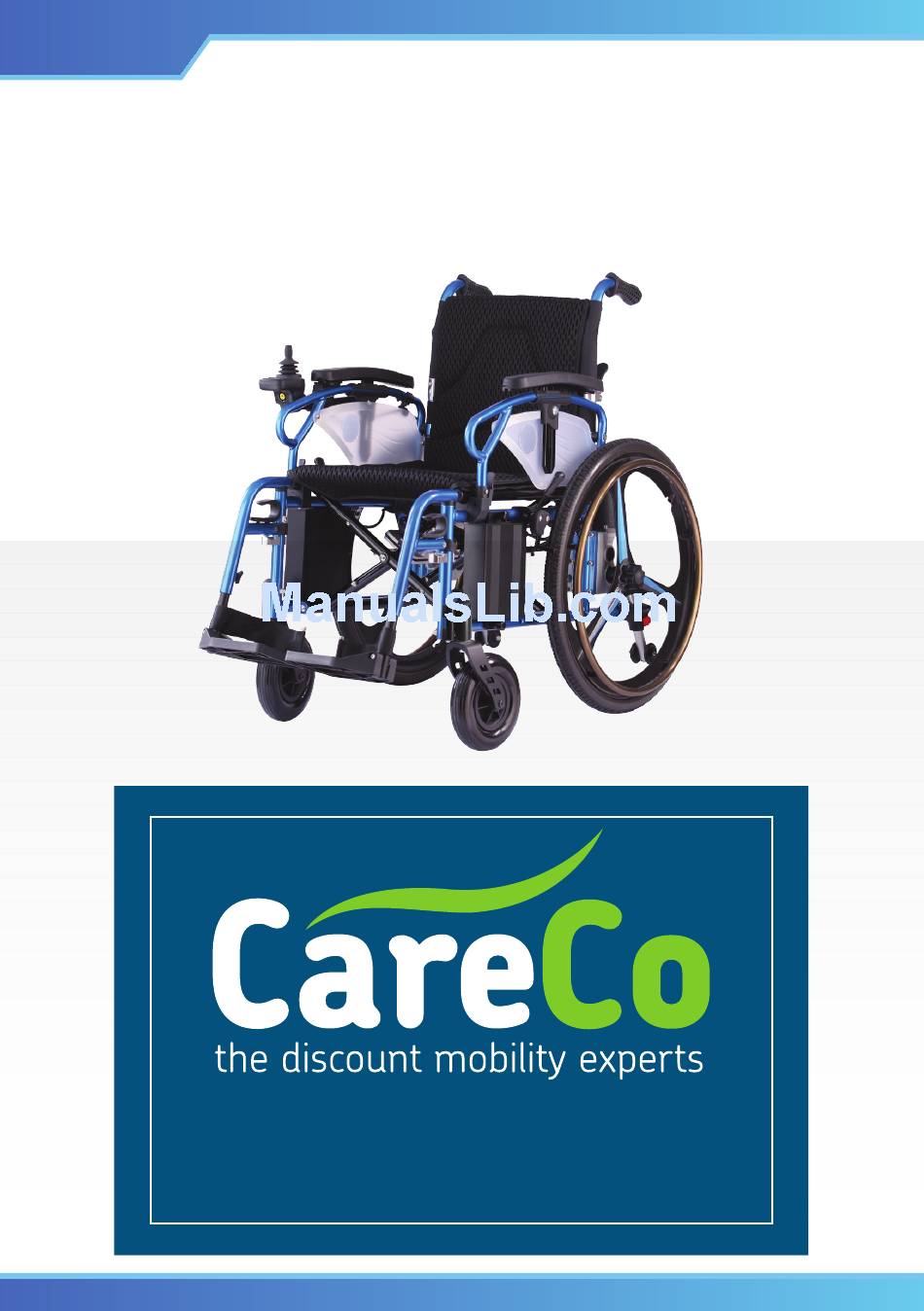

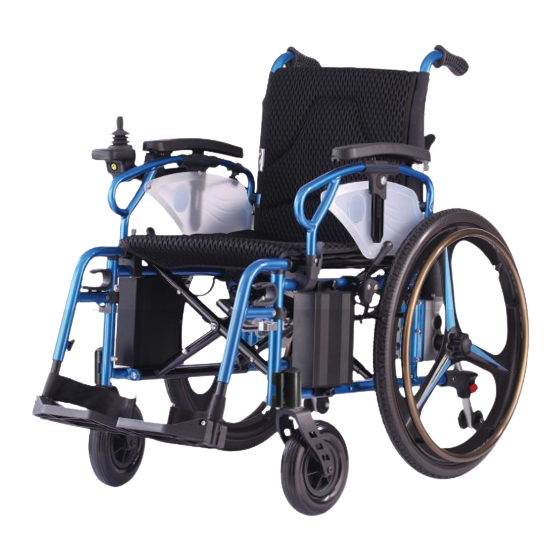

    V2.0 Infinity Duo User Manual www.careco.co.uk 0800 111 4774...
  • Page 2 TABLE OF CONTENTS Title Page 1.0 Parts Introduction 2.0 Set Up Upon Arrivals 02 - 04 3.0 Auto & Manual Mode 4.0 Battery Charging and Care 05 - 06 5.0 Joystick Controller 6.0 Specification 1.0 PARTS INTRODUCTION 01. Joystick Controller 02.

  • Page 3: Set Up Upon Arrivals

    2.0 SET UP UPON ARRIVALS STEP 01 Install quick release front wheel by pressing the button under the screw of front wheel. Install rear wheel, follow the diagram of P2 to install each part, STEP 02 tighten up the nut by using the tools provided (P3). STEP 03 Press down from the top (P4) to open the wheelchair (P5).

  • Page 4: Set Up Upon Arrivals

    2.0 SET UP UPON ARRIVALS STEP 05 Install the joystick controller, slide the bar into the controller holder (P10) and tighten up the knob (P11). STEP 06 Fixed the cable with the clip provided to avoid it contact with the rear wheel (P12). STEP 07 Stick the velcro (P13) at the end of backrest to the seat.
  • Page 5 2.0 SET UP UPON ARRIVALS STEP 09 Install the footrest, push it down and hold the lock (P16), flip forward and release the lock to engage (P17). Loosen up the knob and adjust footrest height (P18). STEP 10 Pull the pin and adjust the height of anti-tilt (P16). STEP 11 Push the pin in circle and adjust the heigh of armrest.

  • Page 6: Auto & Manual Mode

    3.0 AUTO AND MANUAL MODE Manual Mode 1. Lever points up. 2. Manual Mode engaged. 3. Use for manual push. Auto Mode 1. Lever points sideway. 2. Auto Mode engaged. 3. Use for power drive. 4.0 BATTERY CHARGING AND CARE 4.1 Battery •...

  • Page 7: Battery Charging And Care

    4.0 BATTERY CHARGING AND CARE 4.2 Remove the Battery STEP 01 STEP 02 • The battery has installed • Unlock the at the both side of connector and wheelchair frame unplug the cables. underneath the seat and it is very easy to detach. STEP 03 STEP 04 •...

  • Page 8: Specification

    6.0 - Specification Max Speed 7 KM/hr (4.6 Miles) Actual Weight 33KG (73 lbs.) Maximum Capacity 150KG (330 lbs.) Seat Width 14”,16”,18”, 20”,22” Folded Size (LxWxH) 93 x 44.5 x 78cm (36.6” x 17.5” x 30.7”) Opened Size With Footrest (LxWxH) 113 x 58 x 93cm (44.5”...
