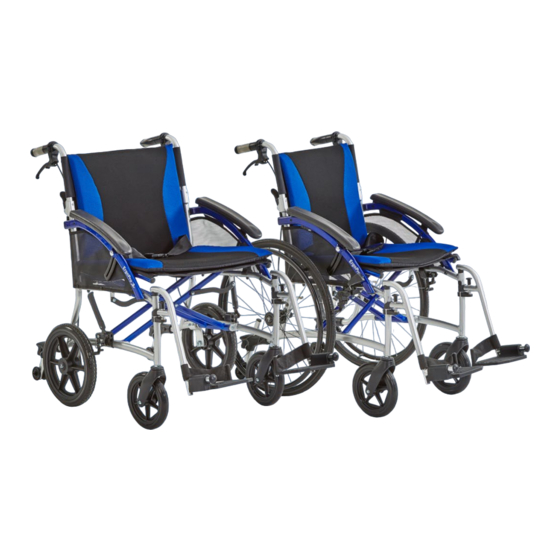

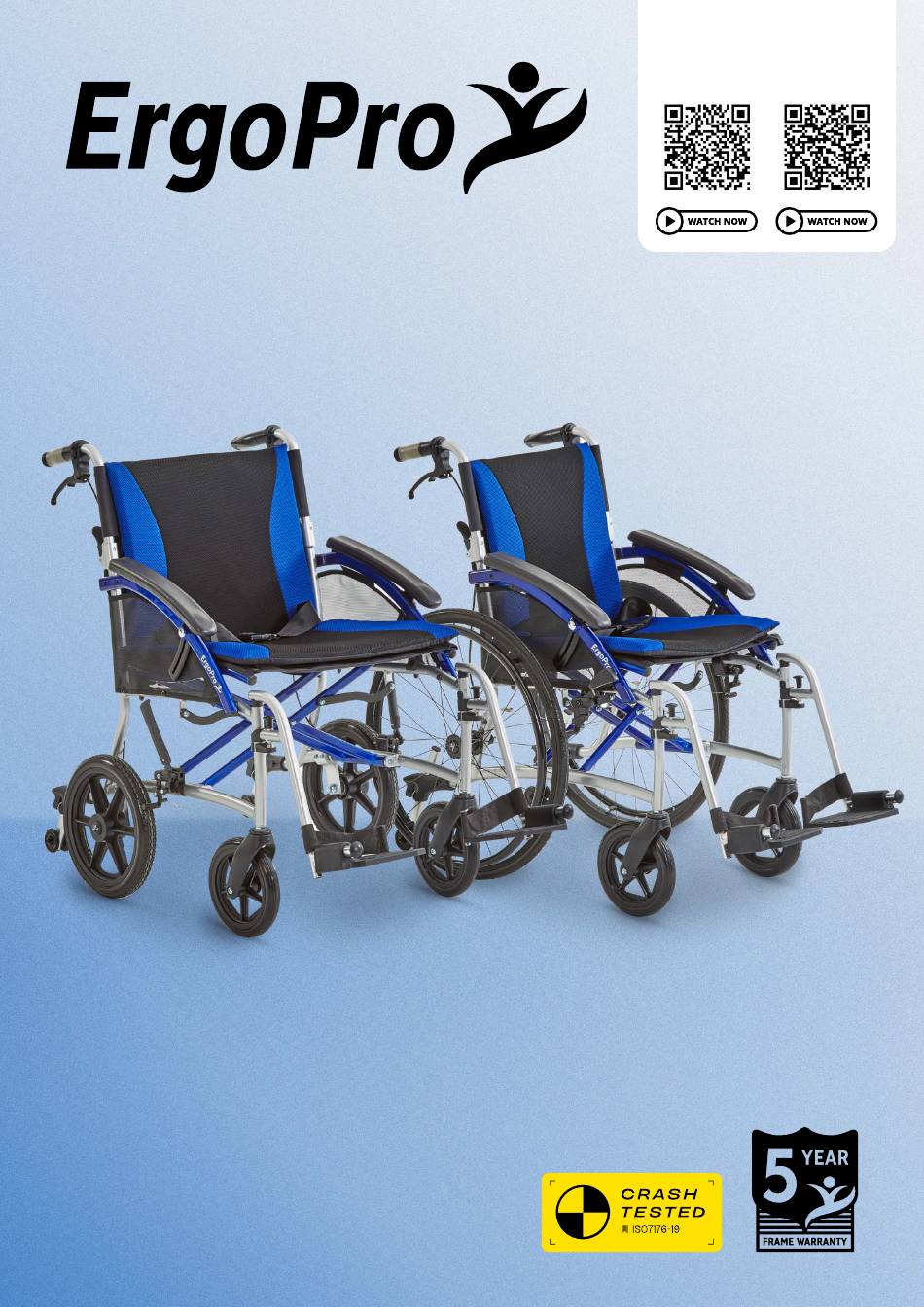

- Page 1 Scan me on your phone camera to watch our assembly videos. Please select your model: Self Propelled Transit SELF PROPELLED | TRANSIT WHEELCHAIR USER MANUAL WC02010014 | WC01010021 PRODUCT CODE:...
- Page 2 Due to CareCo’s commitment to continuous product improvement, product information and designs are subject to change without notice. No claims can be made based on the data or illustrations in this user manual.
-
Page 3: Before Use
We recommend that you keep this user manual in a safe place for future reference. If you have any questions about product use, maintenance, or safety, please contact CareCo. KEY DEFINITIONS... - Page 4 WC02010014 | WC01010021 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR ERGO PRO WHEELCHAIR HOW TO USE YOUR WHEELCHAIR USER INSTRUCTIONS APPLYING THE BRAKES LEGRESTS FOOTPLATES SEAT BELT QUICK-RELEASE WHEELS ADDITIONAL STORAGE FOLDING YOUR WHEELCHAIR, TRANSPORTATION AND STORAGE FOLDING INSTRUCTIONS TRANSPORTATION STORING THE WHEELCHAIR...
- Page 5 LOOKING AFTER YOUR WHEELCHAIR CLEANING MAINTENANCE MAINTENANCE SCHEDULE REPAIRS OTHER ADJUSTMENTS WARNINGS & TECHNICAL INFORMATION SELF PROPELLED SPECIFICATIONS TRANSIT SPECIFICATIONS PRODUCT REISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED USER INTENDED ENVIRONMENT PRODUCT IDENTIFICATION DEFINITIONS GENERAL WARNINGS EXPECTED LIFETIME WARRANTY NOTES...
-
Page 6: Getting Started
PRODUCT CODE GETTING STARTED CARTON CONTENTS ITEM NUMBER DESCRIPTION QUANTITY Contact CareCo immediately if any of the listed Ergo Pro Wheelchair contents are missing. Backrest Cushion We strongly recommend that you keep the box Seat Cushion and internal packaging for the duration of your LHS Legrest warranty period. - Page 7 SETTING UP YOUR ERGO PRO WHEELCHAIR 1. Remove all wheelchair components from 2. Push downwards on the seat base tubes the outer packaging and place them onto to open the wheelchair. a level surface. 3. Lift the backrest handles upwards. 4.
- Page 8 WC02010014 | WC01010021 PRODUCT CODE 5. Place the backrest cushion on the 6. Place the legrest onto the frame at a wheelchair back canvas, then secure using 90-degree angle, then rotate inwards. the velcro. Repeat on the other side.
- Page 9 HOW TO USE YOUR WHEELCHAIR USER INSTRUCTIONS TRANSFERRING TO & FROM Always ensure the brakes are applied before getting in/out of the wheelchair. TRANSFER TO Position your body as close to the wheelchair as possible. Support your body using the armrests, before lowering into the seat. TRANSFER FROM Support your body using the armrests and place your feet on the ground.
- Page 10 WC02010014 | WC01010021 PRODUCT CODE THRESHOLDS & FIXED OBSTACLES Approach thresholds vertically to avoid wheelchair misbalance. Correct Approach Incorrect Approach SUGGESTION Use caution when operating the wheelchair near kerbs, ledges, and doorway thresholds. DOORS & GATES Determine whether the door/gate opens towards or away from the user. Reach for the handle and carefully accelerate forwards or backwards depending on the door/ gate orientation.
-
Page 11: Applying The Brakes
APPLYING THE BRAKES PARKING BRAKE LOCKING Push the brake lever forwards to lock the parking brake. UNLOCKING Pull the brake lever backwards to unlock the parking brake. ATTENDANT BRAKE STOPPING Gradually squeeze both brake levers to stop the wheelchair. Release the brake levers to start moving again. - Page 12 WC02010014 | WC01010021 PRODUCT CODE LEGRESTS ATTACHING REMOVING Place the legrest onto the frame at a Lift the legrest lever to release the leg rest 90-degree angle, then rotate inwards. from the frame, then rotate outwards. An audible “click” will confirm the legrest is Lift the legrest away from the frame.
-
Page 13: Quick-Release Wheels
SEAT BELT FASTENING RELEASING Insert the male buckle into the female buckle. Press the exposed sides of the male buckle while pulling away from the centre. QUICK-RELEASE WHEELS The self-propelled version of the Ergo Pro is equipped with quick-release rear wheels. ATTACHING REMOVING 1. -
Page 14: Additional Storage
WC02010014 | WC01010021 PRODUCT CODE ADDITIONAL STORAGE CARECO WHEELCHAIR BAG POPEM PANNIER BAG Attach additional storage space to the back Attach additional storage space to the side of your wheelchair by looping the bag straps of your wheelchair by looping the bag straps over the wheelchair’s push handles. -
Page 15: Folding Instructions
FOLDING YOUR WHEELCHAIR, TRANSPORTATION AND STORAGE FOLDING INSTRUCTIONS 1. Apply the locking brakes. 2. Fold both footplates upwards. 3. Lift the legrest levers to release the Optional: Remove the backrest and seat leg rests from the frame, then rotate cushions from the wheelchair outwards. - Page 16 WC02010014 | WC01010021 PRODUCT CODE 5. Lift the seat base tubes upwards to close 4. Press the backrest levers and fold down the wheelchair. the backrest handles. WARNING! Keep hands and body away from cross frame pivot to avoid possible pinch points.
- Page 17 TRANSPORTATION TRANSPORTATION IN A VEHICLE (OCCUPIED) Your Ergo Pro wheelchair has been successfully tested in accordance with requirements of ISO 71769-19 meaning it is suitable for use as a seat in a motor vehicle, providing that the wheelchair tie-down and occupant restraint straps (WTORS) meet the requirements of ISO 10542-1.
- Page 18 We strongly recommend that the wheelchair user transfers to a vehicle seat when reasonably possible. Changing and/or substituting the wheelchairs securement positions must not be made without consulting CareCo. Ensure the chosen vehicle has the necessary accessibility and strength to transport the occupied wheelchair.
-
Page 19: Storing The Wheelchair
STOWING THE WHEELCHAIR Ensure the brakes have been applied and any accessories have been secured before transporting. Fold the wheelchair, then lift it into the desired vehicle. Position the wheelchair appropriately within the vehicle to prevent excess movement during transit. TRANSPORTING BY AIR &... -
Page 20: Comfort Adjustments
WC02010014 | WC01010021 PRODUCT CODE COMFORT ADJUSTMENTS ARMREST HEIGHT 1. Press and hold the armrest button. 2. Raise or lower the armrest to the desired height. 3. Release the button to lock the armrest in place. Repeat on the other side. FOOTPLATE HEIGHT 1. - Page 21 ANTI-TIP WHEEL HEIGHT 1. Pull the spring-loaded mechanism back. 2. Lift or lower the anti-tip wheel to the desired height. 3. Release the spring-loaded mechanism to secure the position. Repeat on the other side.
-
Page 22: Maintenance Schedule
WC02010014 | WC01010021 PRODUCT CODE LOOKING AFTER YOUR WHEELCHAIR CLEANING Regular use of the wheelchair will accumulate dirt and debris over time. Clean the wheelchair regularly using mild soap and warm water, then dry using a cloth. WARNING! Do not use bleach or strong chemicals to clean the wheelchair. SUGGESTION! Regular cleaning &... -
Page 23: Other Adjustments
Certain wheelchair components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the wheelchair requires repair due to a defect, contact CareCo immediately. OTHER ADJUSTMENTS... - Page 24 WC02010014 | WC01010021 PRODUCT CODE WARNINGS & TECHNICAL INFORMATION SELF PROPELLED SPECIFICATIONS WC01010021 16" 18" 20" 22" SEAT WIDTH HEIGHT (MM) 1110 1110 1110 1110 LENGTH (MM) WIDTH (MM) FOLDED HEIGHT (MM) 1110 1110 1110 1110 FOLDED LENGTH (MM) FOLDED WIDTH (MM) SEAT HEIGHT (MM) SEAT WIDTH (MM) SEAT DEPTH (MM)
- Page 25 TRANSIT SPECIFICATIONS WC02010014 16" 18" 20" 22" SEAT WIDTH HEIGHT (MM) 1090 1090 1090 1090 LENGTH (MM) WIDTH (MM) FOLDED HEIGHT (MM) 1090 1090 1090 1090 FOLDED LENGTH (MM) FOLDED WIDTH (MM) SEAT HEIGHT (MM) SEAT WIDTH (MM) SEAT DEPTH (MM) BACKREST HEIGHT (MM) 635 -760CM 635 -760CM...
-
Page 26: Recycling And Disposal
RECYCLING & DISPOSAL Recycling or disposal of the wheelchair should be completed through an approved distributor or disposal facility. (Local disposal & recycling regulations may apply) Alternatively, contact CareCo for advice on disposal. MATERIALS: Wheelchair Packaging: Cardboard Box, Low-Density polyethylene bag. -
Page 27: Intended User
INTENDED USE This product is intended for users who experience difficulty in walking and/or have reduced mobility. INTENDED USER To aid a user with mobility limitations to move around safely. INTENDED ENVIRONMENT This product is designed to be used both indoors and outdoors on firm, level ground. Take care when using the product in inclement weather conditions. -
Page 28: General Warnings
WC02010014 | WC01010021 PRODUCT CODE GENERAL WARNINGS Read the following carefully to avoid damage and/or injury caused by improper operation. • Do not exceed the maximum user weight indicated on the frame label. • Do not stand on the product or the footrests at any time. •... -
Page 29: Expected Lifetime
EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the product is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime. WEIGHT CAPACITY: USER BEHAVIOUR: If the user exceeds the weight limit specified,... -
Page 30: Warranty
Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the wheelchair requires repair or replacement as a direct result of: •... - Page 31 NOTES...
- Page 32 Self-propelled Wheelchair CareCo (UK) Limited, 1 Turing Court, Transit Wheelchair Great Notley, Braintree, CM77 7AT, England...
