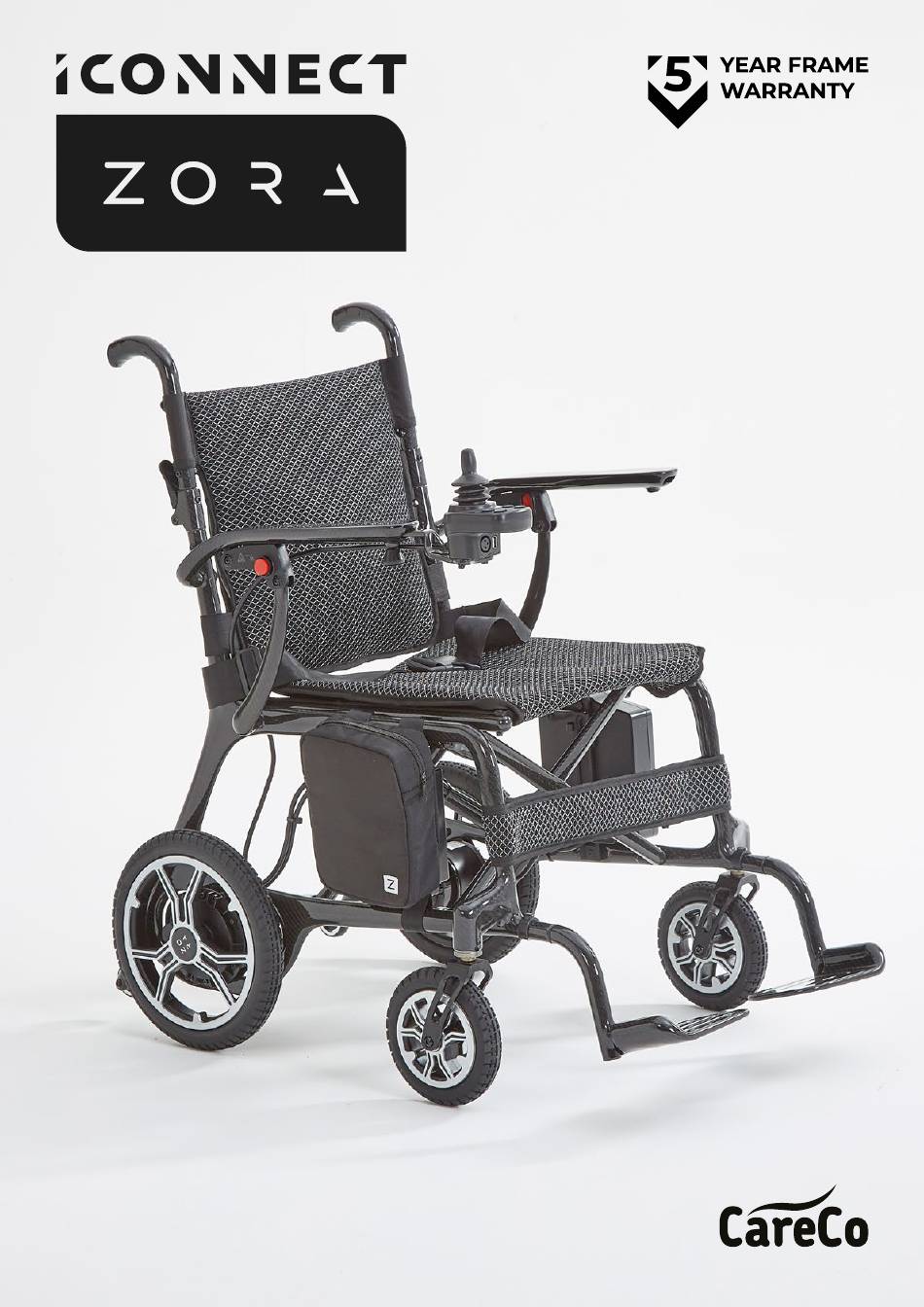

- Page 1 User Manual PC02010006 P R O D U C T C O D E :...
-
Page 2: Table Of Contents
CONTENTS 1. INTRODUCTION 2. PRECAUTIONS FOR SAFE USE 3. STRUCTURE AND PERFORMANCE 4. SPECIFICATION 5. INSTALLATION, FOLDING AND DEBUGGING 6. USE AND OPERATION 7. FAULT DIAGNOSIS AND TROUBLESHOOTING 8. MAINTENANCE 9. TRANSPORTATION AND STORAGE 10. OPENING AND CHECKING 11. WARRANTY... -
Page 3: Introduction
4. This power wheelchair is an indoor type, and suitable for an indoor use and the flat streets near buildings, but not for the grass, gravel, or larger slope and motorized roads, rainy and snowy days, either. iCONNECT ZORA 120kg Model:... -
Page 4: Precautions For Safe Use
2. PRECAUTIONS FOR SAFE USE WARNING! To ensure your safety, please read and understand this manual You must be on high alert when driving any vehicle to ensure safety. Please read the following warning carefully to avoid damage or • personal injury caused by improper operation. - Page 5 2. PRECAUTIONS FOR SAFE USE WARNING! Before getting on/off the wheelchair, you should sit back as far as • possible to avoid injury caused by overturning. The arm rests are not transfer bars, do not use them transfer out of the •...
- Page 6 2. PRECAUTIONS FOR SAFE USE WARNING! We strongly recommend that you do not smoke in the wheelchair. If • you decide to smoke in the wheelchair, please abide by the following safety rules: keep ash at a safe distance from the wheelchair seat. Make sure your cigarette is extinguished completely when you throw it away.
- Page 7 2. PRECAUTIONS FOR SAFE USE WARNING! Keep yourself, clothing and other objects away from the wheel while • the wheelchair is moving. Do not drag anything behind the wheelchair while driving. Loose clothing and other items can get sucked into tyres and/or turning gears.
- Page 8 2. PRECAUTIONS FOR SAFE USE WARNING! When sitting in a wheelchair, avoid any position or movement that can • change your center of gravity. This may cause the wheelchair to tilt. Do not put all the weight on one side of the wheelchair deck, such use •...
- Page 9 2. PRECAUTIONS FOR SAFE USE WARNING! Do not drag the wheelchair. Dragging may exceed its own speed • threshold, causing damage to key parts of the wheelchair. Be extremely careful when moving an idle wheelchair up and down • the stairs. The wheelchair must be folded, requiring the participation of several physically capable people.
- Page 10 In the unlikely event of any product safety notices or product recalls in relation to this product, please help us to contact you by ensuring that we hold the correct contact details for yourself. Alternatively, please review our website for any product alerts: www.careco.co.uk...

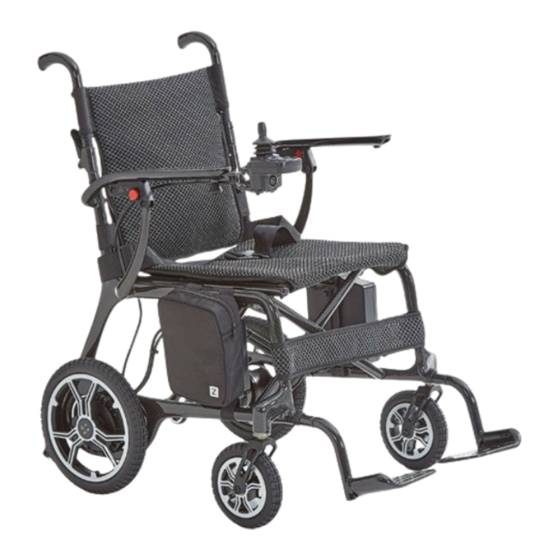

- Page 11 3. STRUCTURE AND PERFORMANCE Structure of the Power Wheelchair This power wheelchair consists of the main part including the front wheel, drive wheel, frame, controller, motor with mechanism, armrest, push handle, backrest, seat base, footrest, battery case and charger, the structure shown in Figure 1. BACKREST PUSH HANDLE CONTROLLER...
-
Page 12: Structure And Performance
3. STRUCTURE AND PERFORMANCE Product characteristics of the power wheelchair Classification by anti-shock type: wheelchair is internal power supply; • Classification according to the degree of anti-shock: wheelchair belongs to the • B-type application part; Classification according to the degree of protection of the feed: IPXO; •... -
Page 13: Specification
4. SPECIFICATION Overall Dimensions 900 x 580 x 860mm Seat Height 460mm Seat Width 420mm Seat Depth 400mm Arm Height 250mm Seatback Height 400mm Wheelchair Weight 13kg Maximum Speed 6km/h Range 15km with 1 battery | 30km with 2 batteries Braking Distance (on a level surface) ≤1000mm Minimum Turning Radius... -
Page 14: Installation, Folding And Debugging
5. INSTALLATION, FOLDING AND DEBUGGING Installation FIG. 4 FIG. 2 FIG. 3 FIG. 5 FIG. 6 FIG. 7 FIG. 8 1. Take out the wheelchair from the 3. Install the footrests to the frame and packing box and put it on the ground. then fasten them. - Page 15 5. INSTALLATION, FOLDING AND DEBUGGING Folding Please operate according to below methods if transport or store the power wheelchair: 1. Put the wheelchair on flat ground and turn off the power supply. 2. Turn the footrest upward by 90°. (Fig.9) 3.
-
Page 16: Use And Operation
6. USE AND OPERATION Controller: It is the key component of a wheelchair. All electronics to operate the latter are housed in it (figure 13). Usually, the controller is installed in one armrest, which is connected with motor and battery on power box. Speed Settings SPEED INDICATOR HORN... - Page 17 6. USE AND OPERATION • Charger Socket: lt is only used for this wheelchair. Do not use the socket to supply power to any other electrical equipment. Otherwise, it may damage the wheelchair’s control system or its E.M.C performance (Electromagnetic tolerance). CAUTION! If you connect any devices other than the supplied battery charger into the socket, causing damage to the control system, then the warranty is Invalid.
- Page 18 6. USE AND OPERATION Charging batteries The battery charger is an important part of the wheelchair. The off-board charger attached to this product can charge its batteries quickly and easily to make your wheelchair the best. CAUTION! The charge of 24V/2A supplied by our company meets the requirements mentioned in Section I <<General Safety Requirements >>...
- Page 19 6. USE AND OPERATION Charge the battery with charger Method 1: Connect charger to charging port on controller.(Fig.15) Method 2: Remove the battery from wheelchair and directly charge it. (Fig.16) FIG. 16 FIG. 15 Battery Pack Suggestion When using your powerchair you can purchase an extra battery pack which can be stored in the side bag.
- Page 20 6. USE AND OPERATION Safety Belt For your safety, the safety belt must be fastened before you drive the wheelchair. FIG. 17 0PERATION Preparation before operation • Do not turn on the power switch when sit on the power wheelchair and do turn off the power switch when get off from the wheelchair.
- Page 21 6. USE AND OPERATION Practice before operation • Find a spacious place like square and have an assistant to help you practice until you have enough confidence to operate it. • Be certain to shut down the power when you are up and down the wheelchair and set a speed you need through speed adjustment button.
-
Page 22: Fault Diagnosis And Troubleshooting
7. FAULT DIAGNOSIS AND TROUBLESHOOTING This product has an automatic fault warning function to give you very convenience. Once it malfunctions, the LEDs on the controller will flash with alarm sounded by the horn. You can find where a fault is according to information in Table 2. If the fault still exists after checking out the fault based on that in table 2, Please consult your service agent immediately. -
Page 23: Maintenance
8. MAINTENANCE Like other motorized vehicle, your power wheelchair also requires routine maintenance. Some checks can be performed by yourself, others you can ask for assistance from your service agent. Preventive maintenance is very important. If you follow the maintenance and checks in this section, your wheelchair will give you years of trouble-free operation. - Page 24 8. MAINTENANCE • The frame surface has been sprayed with a clear sealant coating. You can apply light coat of car wax to make the surface keep a high gloss. • Check all cable connections. Make ensure they are fastened and are not corroded. The battery must be placed in the battery area, flat, the battery plug inward, relative display, refer to the correct connection on the main frame label;...
- Page 25 8. MAINTENANCE Cleaning Way of cleaning as below: Never wash your wheelchair with water or expose directly to water. • Surface of wheelchair frame is coated with a protective coating. • Therefore, it is very easy to wipe it clean with a damp cloth. Never use any chemicals to clean the vinyl on seat and armrest, as they may cause the latter slip or chapped.
-
Page 26: Transportation And Storage
9. TRANSPORTATION AND STORAGE Transportation You can load and transport according to the shipping marks and graphics. For details, see the attachment. Storage Your wheelchair should be stored in a dry condition free from sources of extreme tem- perature and dampness. Remove the batteries from the wheelchair prior to storage. Otherwise, the frame may rust, and the electronics may be damaged. -
Page 27: Warranty
11. WARRANTY Warranty If any part of the product requires full/part repair or replacement due to defective workmanship or materials within the specified warranty period, the work will be com- pleted free of charge. 1. Frame: 5-year limited warranty. 2. Electronic parts: 12 months limited warranty. 3. - Page 30 CareCo (UK) Limited, 1 Turing Court, Great Notley, Braintree, CM77 7AT, England 970765 971584...
