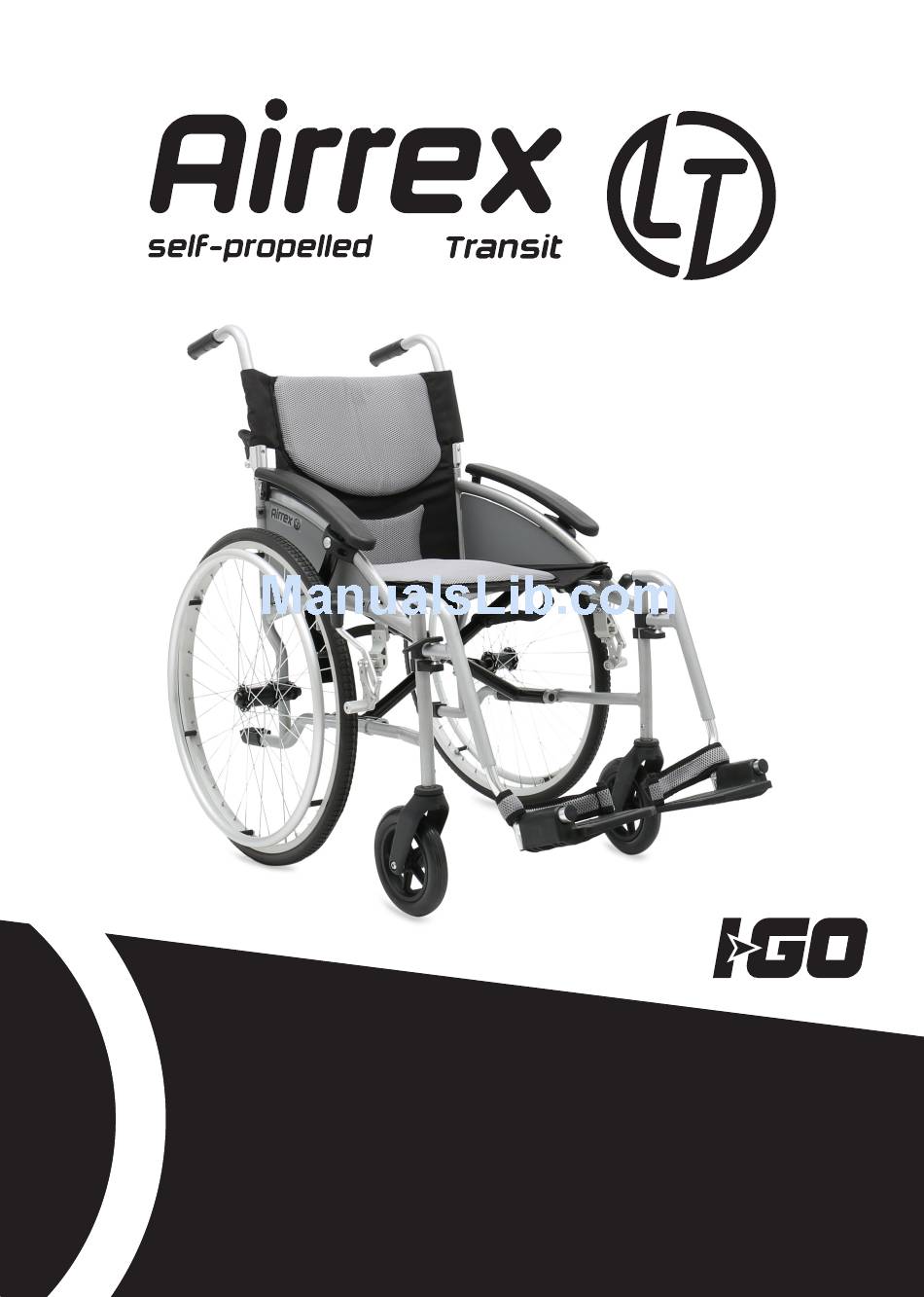

- Page 1 U S E R M A N U A L PR ODUCT CODE S S E LF P RO P E LLE D W C0 1 06 1 T RANSIT W C020 59 Ca r eC o ( U K ) L td , Hu be r t Road, Bre ntwo od, Essex, CM 14 4J E PA G E 1...
- Page 2 INFORMATION Thank you for purchasing a wheelchair from I-GO. This I-GO wheelchair has been designed and manufactured to meet our own high standards and specifications. We hope you are happy with your purchase. Please ensure you read this manual carefully. It contains important information on the safe use and maintenance of your I-GO wheelchair.
-
Page 3: Table Of Contents
CONTENTS 1. GENERAL OVERVIEW OF YOUR WHEELCHAIR 1.1 Components of the wheelchair 1.2 Explanation of the function and possibilities of your wheelchair 2. SAFETY REGULATIONS General safety guidelines Warnings for safe use 3. USER INSTRUCTIONS 3.1 Safety tips 3.2 Negotiating pavements and uneven surfaces 3.3 Going up and down ramps 3.4 Going up and down stairs 4. -
Page 4: General Overview Of Your Wheelchair
1. GENERAL OVERVIEW OF YOUR WHEELCHAIR 1.1 Components of the wheelchair You should be aware of each of the elements and parts that make up your wheelchair before you continue reading this manual. Please note: Specifications and designs may be changed without prior notice. 1. -
Page 5: Explanation Of The Function And Possibilities Of Your Wheelchair
1. GENERAL OVERVIEW OF YOUR WHEELCHAIR 1.2 Explanation of the function and possibilities of your wheelchair This I-GO wheelchair is a foldable model and is designed to be easy to transport. This is a medical equipment product and not a standard consumer product. We therefore recommend that you follow this manual to ensure proper use of your wheelchair. - Page 6 2. SAFETY REGULATIONS » When leaning or reaching forward, place yourself against the backrest with the castors facing forwards. » Do not drive directly into curbs. » Do not attach anything to the wheels. This can damage the wheelchair, affect the balance of the wheelchair and cause injury to the user. »...
-
Page 7: User Instructions
3. USER INSTRUCTIONS It is recommended that you consult a doctor or therapist for assistance in developing safe and effective techniques for using this wheelchair in accordance with your daily activities and physical capabilities. 3.1 Safety tips Getting off the wheelchair, reaching and bending while in the wheelchair will cause a change in weight distribution and in the centre of gravity of the user and the wheelchair. -
Page 8: Negotiating Pavements And Uneven Surfaces
3. USER INSTRUCTIONS 3.2 Negotiating pavements and uneven surfaces Going up the pavement: A wheelchair attendant can help the user in two different ways. We recommend using the first method. 1. The user and attendant face towards the pavement. The attendant must pull the handles towards him and place his foot on the stepper, located on the rear of the wheelchair between the wheels. -
Page 9: Going Up And Down Ramps
3. USER INSTRUCTIONS 3.3 Going up and down ramps Inspect the ramp for slippery areas or uneven surfaces before attempting to travel on it. Warning Do not carry weight on the rear of the wheelchair when ascending a ramp. This changes the balance and increases the risk of tipping. Make sure the footplates have a minimum ground clearance of 7cm to avoid catching the end of the slope. -
Page 10: Instructions For Use And Mounting Options
This chapter explores the possibilities of the wheelchair. All settings and user instructions will be listed. 4.1 Technical specifications Item Airrex LT Self-propelled Airrex LT Transit Seat width 40 / 45 / 50 cm 40 / 45 / 50 cm... - Page 11 4. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS Unfolding the wheelchair: » Stand next to the wheelchair. » Grab both seat tubes and move apart. » Push both seat tubes downwards. The chair will unfold. See image 01. » Stand at the front of the wheelchair. Push the seat tubes in place of the side frame.
-
Page 12: Use Of The Footrest
4. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS 4.3 Use of the footrest Folding the footplate away: » Stand at the front of the wheelchair. Hold the footplate as shown in image 03. » Fold the footplate in the direction of the footrest, as shown in image 04. Image 03 Image 04 Removing the footrest from the wheelchair... - Page 13 4. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS Reattaching the footrest: » Stand at the front of the wheelchair. » Place the footrest back on the wheelchair at an angle of 90 degrees, as shown in image 05. » Swing the footrest away to the front until a click is heard. The click confirms that the footrest is locked into position.
-
Page 14: Using The Brake
4. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS 4.4 Using the brake Activate the brake » Push the black brake handle forwards, as shown in image 08. » The click confirms that the brake is engaged. Image 08 Image 09 Deactivate the brake: »... -
Page 15: Use Of The Rear Wheels
4. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS Warning When the wheelchair is not in use the armrests can be folded down. We recommend placing the armrest in the highest position while using the wheelchair. 4.6 Use of the rear wheels Removing the rear wheel The rear wheels of this I-GO wheelchair are removed using the ‘quick-release’... -
Page 16: Tyres Information
4. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS 4.7 Tyres information Type wheelchair Size tyres (Front) Size tyres (Rear) Model wheelchair Self propel 7” x 1¼” PU 24” x 1⅜” PU Airrex LT SF Transit 7” x 1¼ PU 12½” x 2¼” PU Airrex LT T 4.8 Use of the folding backrest The backrest can be folded using the following method for ease of transportation. -
Page 17: Using Accessories With Your Wheelchair
4. INSTRUCTIONS FOR USE AND MOUNTING OPTIONS 4.9 Using accessories with your wheelchair The folding backrest: To open the storage bag on the rear of the backrest upholstery, place your hand under the closure and move it upwards, as shown in image 16. To close the storage bag, press the closure against the Velcro fastener. -
Page 18: Maintenance
6. MAINTENANCE Keep your wheelchair in good working condition by having it checked regularly. We recommend you have your wheelchair checked at least once a year. Here are some things you can do yourself to keep your wheelchair in good condition. 6.1 Tyres Check the tyres regularly for wear and replace them as needed. -
Page 19: Front Wheel And Front Castor Fork
6. MAINTENANCE 6.5 Front wheel and front castor fork The front wheel and front castor fork should move and turn freely. This ensures a smooth ride. Check that the nut of the front fork is not too loose or too tight. »... -
Page 20: Problem Analysis And Solutions
7. TROUBLESHOOTING Your I-GO wheelchair is built to be used immediately. Continual use necessitates regular maintenance, particularly when factory settings have been altered. Consult the following troubleshooting guide for a list of common problems and suggested fixes. Suggestion We recommend only using I-GO replacement parts. Not using original I-GO parts can void the warranty. -
Page 21: Warranty
8. WARRANTY Products are to be fit for purpose and of excellent quality and performance. For valid warranty claims I-GO will, at their discretion, replace / repair / refund items mutually agreed to be defective. The wheelchair’s warranty is as follows: »... -
Page 22: Service & Maintenance
9. SERVICE AND MAINTENANCE 9.1 General maintenance instructions Every week: » Check tyre pressure. Every month: » Check the folding and unfolding mechanisms of the wheelchair. » Check the ‘quick-release’ mechanism on the rear wheels. » Check that the brakes are functioning correctly. Every three months: »... - Page 23 9. SERVICE AND MAINTENANCE Make sure your dealer checks the points mentioned below: Service Schedule Component Wheels: for example margin, wear bearings, adjust quick-release Tyres Hand rims: for example wear and burrs Front forks: for example control margin, adjustment ball head axle Brakes: for example adjustment, re-adjustment Frame: for example fracture,...
