Summary of Contents for KaVo ProXam iOS

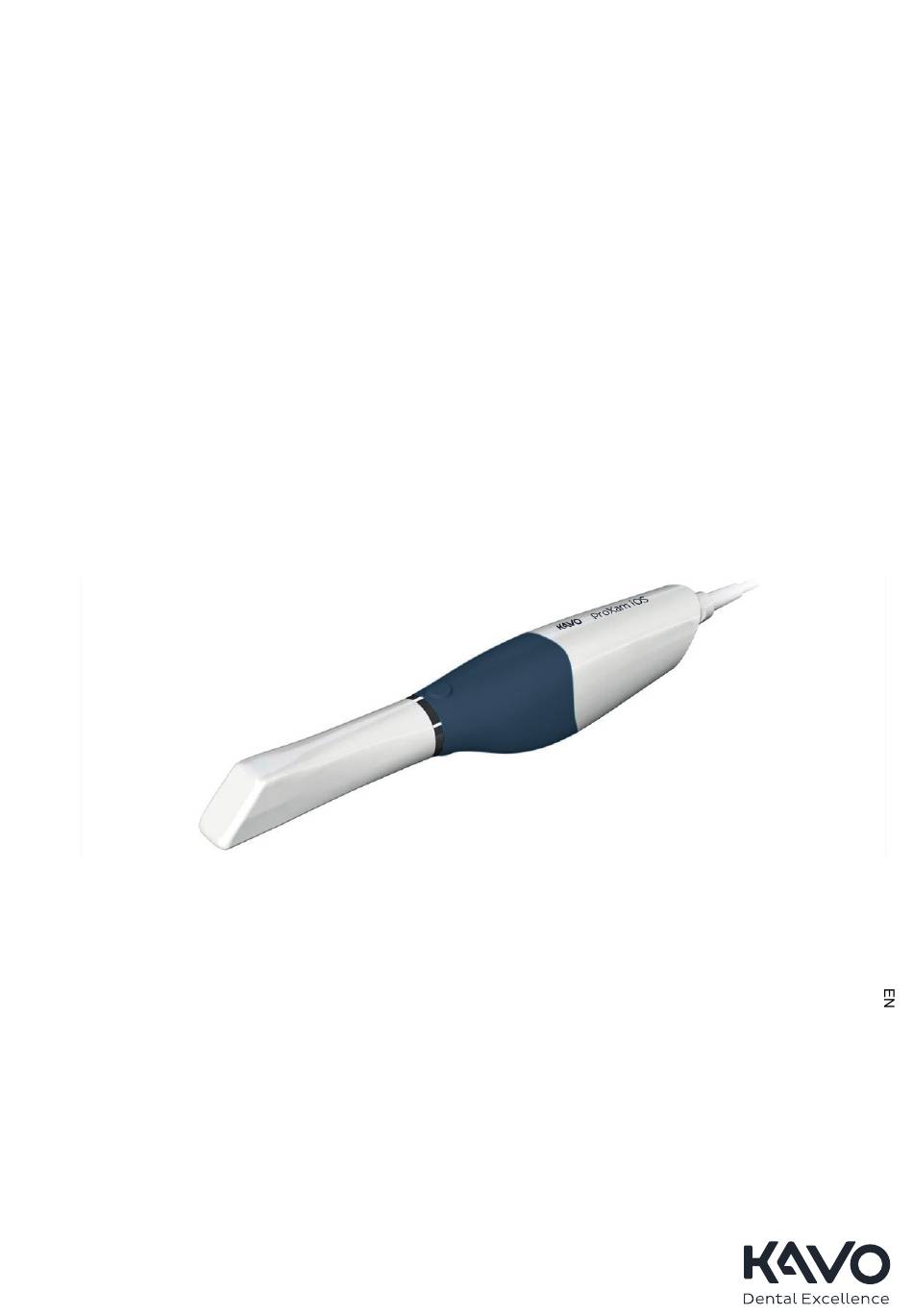

  • Page 1 KaVo ProXam iOS Instructions for use...
  • Page 2 The manufacturer, assembler and importer are responsible for the safety, reliability and performance of the unit only if: - installation, calibration, modification and repairs are carried out by qualified authorised personnel - electrical installations are carried out according to the appropriate requirements such as IEC 60364 - equipment is used according to the operating instructions.

  • Page 3: Table Of Contents

    Moving/viewing 3D models......................21 8.2.1 Rotating model......................21 8.2.2 Changing model size....................21 8.2.3 Moving model.......................22 Settings............................23 8.3.1 Settings screen......................23 8.3.2 General........................23 8.3.3 Scan settings........................24 8.3.4 Margin settings......................24 8.3.5 Colours.........................24 8.3.6 About settings......................25 Instructions for use KaVo ProXam iOS...
  • Page 4 9.30 Full arch scanning........................54 9.31 Open bite scan..........................55 9.32 360º Scanning..........................56 9.33 Import model..........................56 9.34 Export model..........................57 Margin tab..............................58 10.1 Draw margin..........................58 10.2 Views............................60 10.2.1 Color model view......................60 KaVo ProXam iOS Instructions for use...
  • Page 5 12.4.2 DDX Cloud........................98 12.4.3 TruAbutment........................ 98 12.4.4 HeySmile........................98 12.4.5 Sim to Care........................99 Cleaning / preventive maintenance......................101 13.1 Tip infection control procedure....................101 13.1.1 Cleaning tip after every patient.................. 102 13.1.2 Storage........................103 Instructions for use KaVo ProXam iOS...
  • Page 6 Table of contents 13.2 Cleaning scanner base and other surfaces after every patient..........104 13.2.1 Cleaning/changing the scanner cover................105 Service..............................107 Technical specifications..........................108 15.1 KaVo ProXam iOS specification....................108 15.1.1 Applicable standards....................109 15.1.2 Approvals (all systems)....................110 15.1.3 Optical specifications....................110 15.1.4 External components and connectors................111...

  • Page 7: Introduction

    1 Introduction 1 Introduction The KaVo ProXam iOS optical impression scanner is intended for dental offices or laboratories. The scanner can be used as a complete optical impression system for CAD/CAM of dental restorations in different digital workflows in Romexis or exported to a third party.

  • Page 8: Patient Target Group

    No software or hardware should be added to or deleted from the manufacturer systems without prior approval of the manufacturer. Doing so may result in damage to the system and will void the product warranty. KaVo ProXam iOS Instructions for use...

  • Page 9: Associated Documentation

    2 Associated documentation 2 Associated documentation • Romexis 6 user's manual Instructions for use KaVo ProXam iOS...

  • Page 10: Symbols On Product Labels

    Refer to instruction manual/booklet (Standard ISO 7010). Autoclavable at temperature specified. Fulfils the requirements of (EU) 2017/745. Class 2 electrical product Catalogue number (Standard ISO 7000) Dangerous Voltage ISO 3864-B.3.6 Date of manufacture (Standard ISO 7000). Direct current KaVo ProXam iOS Instructions for use...
  • Page 11 General warning (Standard ISO 7010). Humidity limitation Keep away from rain. Laser information Laser warning Lot number Manufacturer (Standard ISO 7000). Laser class 1 (Standard IEC 60825) Class 1 laser product (Standard EN 60825-1: 2007) Instructions for use KaVo ProXam iOS...
  • Page 12 Separate collection for electrical and electronic equipment according to Directive 2012/19/EU (WEEE). Serial number (Standard ISO 7000). Standby IEC 60417-5010 Storage temperature limits Type B applied part (Standard IEC 60417). UL Laboratory Equipment Listing KaVo ProXam iOS Instructions for use...

  • Page 13: Safety Precautions

    Do not install or operate the scanner in an environment where an explosion hazard exists, for example in a high oxygen area. WARNING Do not attach any equipment or devices to the scanner unless their use has been specifically authorised by the manufacturer. Instructions for use KaVo ProXam iOS...
  • Page 14 Electromagnetic Compatibility (EMC). The scanner must be installed and placed into service according to the EMC information provided in the documentation that accompanies the scanner. CAUTION Portable and mobile Radio Frequency (RF) communications equipment can affect medical electrical equipment. KaVo ProXam iOS Instructions for use...

  • Page 15: Reporting Serious Incidents

    CAUTION Do not immerse the scanner base in liquid or expose the scanner to conditions outside the operating conditions, see section "KaVo ProXam iOS specification" on page 108. Clean the scanner according to the instructions in section "Cleaning / preventive maintenance" on page 101.

  • Page 16: Cyber Security

    If you want to encrypt your data, you can use TPM 2.0 (Trusted platform Module) with Window Bit Locker encryption. This is built into Windows and is recommended for laptops which are portable and vulnerable to theft. KaVo ProXam iOS Instructions for use...

  • Page 17: Getting Started

    5.2 Managing cases in Romexis 5.2.1 Searching and managing patients and images For detailed descriptions see the following sections in the Romexis user’s manual: • "Patients module" • "Searching patients" • "DICOM Query/Retrieve (optional)" Instructions for use KaVo ProXam iOS...

  • Page 18: Dicom Storage (Optional)

    A model can be combined to a 3D volume in the Romexis 3D module. Opening 3D volume See section "Opening images" in the Romexis user’s manual. Importing intraoral scans to 3D volumes See section "Importing 3D models" in the Romexis user’s manual. KaVo ProXam iOS Instructions for use...

  • Page 19: Scanner Setup

    6 Scanner setup This section describes how to prepare the scanner for scanning. Components The scanner comes with the following components: KaVo ProXam iOS scanner • Scanner tip x 3 (standard x 2, SlimLine x 1) • Scanner cable x 2 •...

  • Page 20: Plugging Scanner Into Laptop

    Steps 1. Insert the USB cable into a USB 3 port on the laptop. Refer to your laptop's user's manual to find the USB 3 port. KaVo ProXam iOS Instructions for use...

  • Page 21: Scanner Tips

    Do not pull on the cable itself to disconnect. Bending or twisting the cable may impact system usability. You do not need to detach the USB device from Windows. 6.3 Scanner tips Tip sizes • Standard tip x 2 Instructions for use KaVo ProXam iOS...
  • Page 22 The SlimLine logo is on the tip and the S displays on screen when in use. The SlimLine tip is 5.7 mm thinner than the standard scanner tip. With the SlimLine tip the field of view is 30% smaller compared to the standard tip. KaVo ProXam iOS Instructions for use...

  • Page 23: Attaching/Removing Scanner Tip

    To detach the tip, turn it towards the smaller notch on the scanner. To reattach the tip, place the tip on the smaller notch on the scanner and turn it towards the larger notch on the tip until it locks in place. Instructions for use KaVo ProXam iOS...

  • Page 24: Scanner Holder

    The tip can be removed and disinfected while the next tip is being used. For cleaning instructions, see section "Tip infection control procedure" on page 101. 6.4 Scanner holder The scanner comes with a standalone holder. KaVo ProXam iOS Instructions for use...

  • Page 25: Relocating Laptop And/Or Scanner

    Do not use the scanner when the battery is low. If the computer has to shut down before the model is generated, you will lose your scans. Make sure the laptop is plugged in during scanning to keep the scanning from slowing down. Instructions for use KaVo ProXam iOS...

  • Page 26: Romexis Cad/Cam Module Overview

    See "Scanning" on page 26 for more information. 8.1.2 Open existing CAD/CAM case About this task You can continue an existing scan as follows. Steps 1. Click on a patient to highlight it and click Select Patient. KaVo ProXam iOS Instructions for use...

  • Page 27: Moving/Viewing 3D Models

    1. Position the pointer on your model. • To zoom in on the model: rotate the mouse wheel downward, toward your wrist. • To zoom out of the model: rotate the mouse wheel upward, away from your wrist. Instructions for use KaVo ProXam iOS...

  • Page 28: Moving Model

    The model can be moved on the screen without being rotated. Follow these steps to move model. Steps 1. Position the pointer on the model. 2. Press and hold down the mouse wheel. 3. Drag the model to the desired location and release the mouse wheel. KaVo ProXam iOS Instructions for use...

  • Page 29: Settings

    • Uncheck the Show Model Animations box to disable animations for experienced users that want to skip that step. • Uncheck the Show Tooth Labels box to disable the floating tooth number label. Instructions for use KaVo ProXam iOS...

  • Page 30: Scan Settings

    Margin Line Point Size - determines the size of the dots on the margin line. Click in the field to change the value. 8.3.5 Colours Click a color swatch to bring up the color picker. KaVo ProXam iOS Instructions for use...

  • Page 31: About Settings

    8 Romexis CAD/CAM module overview 8.3.6 About settings Displays information about the software and the end user license agreement. Instructions for use KaVo ProXam iOS...

  • Page 32: Scanning

    Start scanning or click the Close button to end the animation. 3 Model layers and groups 4 Scanning tools 9.1 Scanner status Icons on the right side of the screen indicate the status of the scanner. The scanner is disconnected. KaVo ProXam iOS Instructions for use...

  • Page 33: Tip Information

    Activate Imaging Mode to use the scanner as an intraoral camera without adding information to the current model/layer. When active, the icon is blue and Imaging Mode: Camera is displayed at the top of the screen. Instructions for use KaVo ProXam iOS...

  • Page 34: Colour Balancing

    Store the Color Balancer in a plastic bag or keep a dust cover on it. 9.4 Button and motion controls 9.4.1 Top button Use the top button to: • Activate scanner • Deactivate scanner KaVo ProXam iOS Instructions for use...

  • Page 35: Bottom Button

    Select to toggle between colour and stone views of the model. See "Colour model or stone model" on page 41 for more information. Generate Mode See "Eraser tool" on page 38 for more information. Imaging Mode See "Imaging mode" on page 27 for more information. Instructions for use KaVo ProXam iOS...

  • Page 36: Positioning Scanner

    8. Scan until the desired area is fully formed. 9. Click the top button on the scanner to deactivate the laser. KaVo ProXam iOS Instructions for use...

  • Page 37: Workflows

    Steps 1. Right-click the desired scan layer. A popup menu appears. • Add to Group - See "Scanning groups" on page 32 for more information. • Duplicate Layer Instructions for use KaVo ProXam iOS...

  • Page 38: Scanning Groups

    Default setting - sun icon represents brighter laser for intraoral use Activate the dimmer setting for external scanning KaVo ProXam iOS Instructions for use...

  • Page 39: Scanning Live View

    Steps 1. Click Settings. 2. Change the default slider to be anywhere from Small to Large shown below. While scanning is active, you can click and drag the live view to manually adjust it. Instructions for use KaVo ProXam iOS...

  • Page 40: Checking Scanning Distance

    The colour of the outline changes based on how close or far the scanner is from the surface ranging from green (close) to orange and red (far). KaVo ProXam iOS Instructions for use...

  • Page 41: Session Usage

    Any colour shown means the scanner is capturing data. The colours only correspond to the focal distance. 9.10.3 Session usage A session timer is displayed above the scanner in the live view. The session duration is counted while the scanner is activated. Instructions for use KaVo ProXam iOS...

  • Page 42: Saving Live View Image

    1. Rotate the model to look for low data areas in key areas: the preparation, interproximal contacts, etc. In the example below, there is missing data on the interproximal area and extraneous data from a finger accidentally being scanned. KaVo ProXam iOS Instructions for use...

  • Page 43: View Controls

    Select which angle you want to view the model from by clicking on the pop up menu. You can then rotate the model as usual for another angle. Instructions for use KaVo ProXam iOS...

  • Page 44: Generating Model

    Adjust the size of the erase circle using the slider. You can also zoom in or out on the model to affect the model/eraser proportion. KaVo ProXam iOS Instructions for use...
  • Page 45 Eraser - large Eraser icon with slider Click the Eraser tool to deactivate it. It is recommended that you not delete multiple teeth in a row. Large gaps in the model is not recommended. Instructions for use KaVo ProXam iOS...

  • Page 46: Triming Model

    NOTE Trim your models before adding them to a Group. If you trim them after they are aligned, that layer will be removed and need to be manually added back to the Group. KaVo ProXam iOS Instructions for use...

  • Page 47: Colour Model Or Stone Model

    Stone Model - Upper Stone Model - Upper beige, Lower green, Buccal blue Stone Model - Pre-op 9.18 Checking model for missing data About this task Follow these instructions to evaluate the model for low data. Instructions for use KaVo ProXam iOS...

  • Page 48: Delete Model

    Click Data Density again to return to the normal view. Click Margin when finished with scanning. 9.19 Delete model About this task To delete model: Steps 1. Click the Delete Model button to remove the model and start over. KaVo ProXam iOS Instructions for use...

  • Page 49: Scanning Upper And Lowel

    4. Click Save to keep your changes or click Cancel to exit without saving. 9.22 Shade assist Before you begin Shade assist can be used for intraoral cases only. About this task Use shade assist as follows. Instructions for use KaVo ProXam iOS...

  • Page 50: Scanning Buccal Bite

    2. Press the articulated model down firmly or have the patient bite down firmly and tell them not to move while you are scanning. If they shift during scanning, the alignment may be incorrect. KaVo ProXam iOS Instructions for use...
  • Page 51 Scan the sides of the teeth that were captured in the upper and lower models. Ensure some gingival data is captured. First arch aligns. 3.c. Move the scanner to scan the other arch. Second arch aligns Instructions for use KaVo ProXam iOS...
  • Page 52 When scanning is stopped, interim models appear in alignment. NOTE If the models do not automatically appear for each arch, scan the desired teeth and then manually align them. See "Manual alignment" on page 49 for more information. KaVo ProXam iOS Instructions for use...

  • Page 53: Scanning Bilateral Buccal Bite

    4. Use the legend to evaluate the colors and/or hover the mouse cursor over an area to see the contact strength. Hover on areas of the preparation to see the amount of clearance to the opposing tooth. Instructions for use KaVo ProXam iOS...

  • Page 54: Model Alignment Groups

    You can create an alignment without scanning the buccal. Steps 1. Scan the Upper. 2. Scan the Lower. 3. Drag the Upper layer onto the Lower layer to create a new group. Results The system creates an alignment based on occlusal contacts. KaVo ProXam iOS Instructions for use...

  • Page 55: Add To Group

    If automatic alignment is unsuccessful, a manual alignment must be done. Steps 1. Click Reset Alignment to manually align a group. A split screen appears with two models. Each model is displayed on either half of the screen. Instructions for use KaVo ProXam iOS...

  • Page 56: Object Browser

    Use the sliders to change the opacity of any of the models in the group. This can be helpful when evaluating the alignment. 9.27 Scanning pre-op About this task Use Scan Pre-op when you want to scan a pre-operative tooth or a wax-up. KaVo ProXam iOS Instructions for use...

  • Page 57: Scan Body Workflow

    Try and get as close as possible to the scan body, but do not put it inside of the tip. • Use the larger tip size because of the bigger field of view to aid in alignment. Instructions for use KaVo ProXam iOS...

  • Page 58: Scanning Impressions

    You can also tilt the scanner up or down or turn the scanner perpendicular to the impression to achieve the necessary point of view. KaVo ProXam iOS Instructions for use...
  • Page 59 4. Rotate the model to see all of the impression. Be sure to check the contact areas on the adjacent teeth. 5. Take extra scans if there are areas that need additional scans, such as the interproximal areas. 6. Erase any extra data. Instructions for use KaVo ProXam iOS...

  • Page 60: Full Arch Scanning

    On the anteriors, rotate back and forth from the lingual and facial. 2. Scan all of buccal. 3. Scan all of the lingual. 4. Evaluate the model and rescan areas with low data, if necessary. KaVo ProXam iOS Instructions for use...

  • Page 61: Open Bite Scan

    3. Have the patient bite on the bite registration appliance of your choice. 4. Select the Buccal Bite layer and scan the buccal bite with the bite partially open. Results The system attempts to align the models automatically. Manually align them if needed. Instructions for use KaVo ProXam iOS...

  • Page 62: Scanning

    2. Right-click the scan layer and select Import Model. 3. Navigate to the desired file on your computer. You can import .ply, .stl, or .obj files. The model is imported and an orientation graphic displays. KaVo ProXam iOS Instructions for use...

  • Page 63: Export Model

    1. Click on a scan layer to select it. 2. Right-click on the scan layer and select Export Model. 3. Navigate to the desired folder on your computer. You can export as .ply, .stl, or .obj file type. Instructions for use KaVo ProXam iOS...

  • Page 64: Margin Tab

    10.1 Draw margin About this task Follow these instructions to use the Draw Margin tool. Steps 1. Click the Draw Margin tool. The Tooth Indicator screen appears. 2. Click the desired tooth number. 3. Click Create. KaVo ProXam iOS Instructions for use...
  • Page 65 The system automatically activates Path of Insertion (POI). 8. Grab any yellow dot to drag the margin line to better location. 9. You can add yellow control points to any place of the margin line by left click. Instructions for use KaVo ProXam iOS...

  • Page 66: Views

    About this task Slice Plane can be used to slice the model and enable you to evaluate/ visualise the margin in a different way. The initial slice is in the middle of the model. KaVo ProXam iOS Instructions for use...
  • Page 67 Quadrant slice 1 rotated to view other side Full arch slice 1 Follow these instructions to use the Slice Plane tool. Steps 1. Rotate the model to view the slice from the other side. Instructions for use KaVo ProXam iOS...

  • Page 68: Show/Hide Margin

    2. When active, a directional arrow appears over the drawn margin showing the path of insertion. 3. Click and drag the arrow to adjust the path of insertion. Pink highlights show undercut areas. Use this to evaluate your prep for possible fit issues. KaVo ProXam iOS Instructions for use...

  • Page 69: Editing Margin

    Click a control point on a portion of the margin that is good. This is your starting point. • Click in small increments to add new points across the gap. • Click another good point on the margin to complete the new line. Instructions for use KaVo ProXam iOS...
  • Page 70 10 Margin tab KaVo ProXam iOS Instructions for use...

  • Page 71: Analyse Tab

    11 Analyse tab Analyse tab. When the scan is opened from the case list it appears in the 11.1 Preparation tools 11.2 Defining occlusion plane To orientate model the occlusal plane and midline must be defined. Instructions for use KaVo ProXam iOS...

  • Page 72: 3-Point Alignment

    1. Indicate 3 points (right molar, midline and left molar) from the surface of the model by clicking on the model. If you want to use the lower model in the definition, select it from the viewing buttons in the upper right corner of the dialog. KaVo ProXam iOS Instructions for use...
  • Page 73 11 Analyse tab The models are automatically aligned. 2. If necessary fine-tune the alignment manually, see section "Manual alignment" on page 68. 3. Finish the alignment and exit the dialog by clicking Done. Instructions for use KaVo ProXam iOS...

  • Page 74: Manual Alignment

    11 Analyse tab 11.2.2 Manual alignment If necessary, you can use manual alignment to fine-tune alignment after 3-point alignment. You can freely translate the models by dragging. KaVo ProXam iOS Instructions for use...

  • Page 75: Trimming Model

    11 Analyse tab To rotate the models, drag from the arcs around the models. To change viewing direction, use the buttons on the manual alignment toolbar. 11.3 Trimming model Paint ROI to trim Instructions for use KaVo ProXam iOS...
  • Page 76 To increase the size of the trimming tool, zoom out. To rotate models while trimming, hold down the Alt key while dragging. The surfaces behind the painted area(s) are automatically removed. To undo/redo modifications, click the Undo and Redo buttons. KaVo ProXam iOS Instructions for use...

  • Page 77: View Tools

    To visualise models from different directions and occlusal view at the same time click multiple views. 11.4.1 Calculate contact map Calculate and show contact map Click this tool to visualise distances between upper and lower models. Instructions for use KaVo ProXam iOS...

  • Page 78: Calculate Undercuts

    Model overlap is visualised in grey. 11.4.2 Calculate undercuts About this task Follow these instructions to calculate undercuts. Steps 1. Select the surface model in the object browser. 2. Rotate the model to the desired insertion direction. KaVo ProXam iOS Instructions for use...

  • Page 79: Colours

    To change the insertion direction, deactivate the tool, re-orient the model and click the button again. The colour of the surface model returns to normal when the tool is deactivated. 11.4.3 Colours Use this tool to show/hide model colour. Instructions for use KaVo ProXam iOS...

  • Page 80: Taking 2D Quickshot

    11.5.1 Point-to-point measurement About this task Use this tool to measure a distance from one point to another. Steps 1. Activate the Point-to-point measurement tool. 2. Click the model where you want the measurement to start. KaVo ProXam iOS Instructions for use...

  • Page 81: Tooth Width Measurement

    3. Click the distal and mesial side of the tooth. The next tooth is automatically selected from the chart. • To skip a tooth, click on another tooth on the chart. • To re-measure a tooth, click it on the chart. Instructions for use KaVo ProXam iOS...

  • Page 82: Arch Length Measurement

    The first arch length measurement per jaw is used in the calculation of Space analysis. Measure arch lengths from distal of 5 to distal of 5 for the Space analysis to be calculated correctly. To measure arch length: KaVo ProXam iOS Instructions for use...
  • Page 83 11 Analyse tab Steps 1. Activate the Arch length measurement tool. The open bite view opens by default. Instructions for use KaVo ProXam iOS...
  • Page 84 To adjust the view, hold down the Alt key while dragging the model. 3. When enough measurement points have been added, complete the arch by deselecting the measurement tool or right-click on the model. Results The measurement appears in the object browser. KaVo ProXam iOS Instructions for use...

  • Page 85: Curve Measurement

    Also, in case of mixed dentition consider the expansion of the dental arches. Instructions for use KaVo ProXam iOS...
  • Page 86 See "Cleaning / preventive maintenance" on page 101 for details. NOTE Please refer to LM-Activator documentation for more information. Steps 1. Click the LM-Activator tool. KaVo ProXam iOS Instructions for use...
  • Page 87 3. Measure the arch length from the mesial surface of 13 to mesial surface of 23 by clicking on the vestibular surface of the crowns in between. 4. End the measurement by disabling the tool. 5. Verify the arch shape by rotating the model as illustrated. Instructions for use KaVo ProXam iOS...

  • Page 88: Drawing Tooth Margin

    Margin line can be used for drawing an outline for prepared teeth before sending the scan to a laboratory. The outline can be used to improve the fit off the prepared tooth. Steps 1. Click Margin Line tool. KaVo ProXam iOS Instructions for use...
  • Page 89 2. On the tooth chart click on the tooth for which you want to draw a margin. 3. Click around the tooth to add points for a margin line. At minimum three points are required. A margin line is automatically drawn between the added margin points. Instructions for use KaVo ProXam iOS...

  • Page 90: Fine-Tuning Measurements

    If necessary, the measurement points of all types of measurement (Point- to-point, Tooth width, Arch length, LM activator and Margin Lines) can be fine-tuned using the Drag measurement points tool. Follow these instructions to fine-tune measurements. Steps 1. Select the Drag measurement points tool. KaVo ProXam iOS Instructions for use...

  • Page 91: Editing Models In Object Browser

    Adjust transparency using the sliders. • Change model colour by clicking the square next to the model and choose colour. • Name the model by clicking the wrench icon and entering a suitable name. Instructions for use KaVo ProXam iOS...

  • Page 92: Analyses

    The comparison tools can be used to compare the models from different time-points. 11.7.1 Side-by-side comparison About this task To compare scans of different time points (e.g. at the beginning and end of treatment): Steps 1. Click the Side-by-side comparison tool. KaVo ProXam iOS Instructions for use...

  • Page 93: Superimposition

    You can adjust the colour and opacity of a model by selecting it in the object browser and dragging the slider. To hide models from view, click the Show/Hide button. 11.7.2 Superimposition About this task To switch the 3D view to superimposed view: Instructions for use KaVo ProXam iOS...

  • Page 94: Sync Camera

    11.7.4 Fit surface models About this task Follow these instructions to fit surface models. Steps Side-by-side . 1. Select Superimposition comparison view (see sections "Side-by-side comparison" on page 86 and "Superimposition" on page 87 for more information). KaVo ProXam iOS Instructions for use...

  • Page 95: Printing

    The height of the model also defines the height of the base. 2. Proceed as applicable: • To create a solid model, simply click OK in the following dialogue. Instructions for use KaVo ProXam iOS...

  • Page 96: Exporting 3D Models With Bases

    Romexis technical manual. Steps 1. Click the Export the selected base(s) button. Results The models are exported as .stl files into the configured folder from where they can be sent to the 3D printer. KaVo ProXam iOS Instructions for use...

  • Page 97: Send Tab

    Select the case folder and click Inactivate STL from To inactivate a single STL file, select the file and click the right-click menu. 12.2 File 12.2.1 Importing 3D models About this task Follow these instructions to import 3D models. Instructions for use KaVo ProXam iOS...

  • Page 98: Filling In Lab Order Form

    1. Select the case in Case list. 2. Click Create Lab Order under File. 3. Fill in information on the receiving lab, of the patient, and of the referring clinic. To add a restoration, click Add Restoration. KaVo ProXam iOS Instructions for use...
  • Page 99 To select the whole upper or lower jaw, select the correct jaw icon in the centre of the chart. Implant guide, Aligner, Denture, and 3D printed model are only available for full arch. 5. Click Character. Instructions for use KaVo ProXam iOS...
  • Page 100 The restoration appears at the bottom of the window. Results Once a lab order has been created it can be inactivated, viewed as PDF or edited by right-clicking. The form is stored in the Cases list. KaVo ProXam iOS Instructions for use...

  • Page 101: Adding Abutments To Lab Order Form

    12.2.3 Adding abutments to lab order form About this task To define an underlying implant: Steps 1. Select Abutment in the indication field and select suitable implant. 2. Click OK to save selections. Instructions for use KaVo ProXam iOS...

  • Page 102: Adding Bridges To Lab Order Form

    The clicked dots turn green marking the location of the bridge. 12.2.5 Sending lab order form The order and STL files can be sent to the lab either over Romexis Cloud Send tab. data transfer or exported under Export from the KaVo ProXam iOS Instructions for use...

  • Page 103: Export

    When the export is complete the message indicating that the export was successful appears. 4. Click OK. 12.4 Send 12.4.1 Romexis Cloud About this task Follow these instructions to send models to Romexis Cloud. Steps 1. Select the case in Case list. Instructions for use KaVo ProXam iOS...

  • Page 104: Ddx Cloud

    12.4.3 TruAbutment Use the TruAbutment button to send a selected case and/or lab order form to TruAbutment Inc. 12.4.4 HeySmile Use the HeySmile button to export the selected case and open the HeySmile online platform. KaVo ProXam iOS Instructions for use...

  • Page 105: Sim To Care

    By default, the due date is set to a month from the current date but can be changed by clicking the icon next to the date. 4. Click OK. The file transfer is shown by a progress bar. Instructions for use KaVo ProXam iOS...
  • Page 106 The code is not saved anywhere. Once the QR code dialog is closed you cannot retrieve the code from Romexis In addition to the QR code a password is requested. If necessary, you can re-send the models. If the sending fails an error dialog appears. KaVo ProXam iOS Instructions for use...

  • Page 107: Cleaning / Preventive Maintenance

    Do not stack the tips near or on any other metal instruments. WARNING Autoclave sterilisation cycle times exceeding 10 minutes are excessive and may damage the tip. CAUTION To prevent scratches, avoid brushing the mirror. CAUTION Autoclave baskets are not indicated for this cleaning procedure. Instructions for use KaVo ProXam iOS...

  • Page 108: Cleaning Tip After Every Patient

    If there is any debris that cannot be removed or visible deterioration such as cracks or discolouration, the tip should be disposed of and replaced. Contact your local distributor to purchase a replacement tip. 9. Place each scanner tip individually into an autoclave pouch. KaVo ProXam iOS Instructions for use...

  • Page 109: Storage

    To clean either surface, use an optical cloth or 2x2 gauze with a small amount of alcohol to gently remove residue. Ensure each surface is dry before connecting it to the scanner. Instructions for use KaVo ProXam iOS...

  • Page 110: Cleaning Scanner Base And Other Surfaces After Every Patient

    To prevent the connection points and lenses from getting wet, have a tip in place when wiping the scanner base down with the germicidal wipe. 3. Follow the germicide manufacturer’s instructions. KaVo ProXam iOS Instructions for use...

  • Page 111: Cleaning/Changing The Scanner Cover

    Follow these instructions when cleaning the rubber sleeve. Steps 1. Start on the bottom of the sleeve and flip/roll it upwards. 2. Continue rolling to the top of the scanner until you can pull it off. Instructions for use KaVo ProXam iOS...
  • Page 112 3. Clean the cover and base with germicide as instructed in section "Cleaning scanner base and other surfaces after every patient" on page 104 above. 4. Ensure the cover is right-side-out and slide it back onto the scanner. KaVo ProXam iOS Instructions for use...

  • Page 113: Service

    14 Service 14 Service KaVo Technical Service If you have any questions or complaints, please contact the KaVo Technical Service: +49 (0) 7351 56-2900 service.cadcam@kavo.com Instructions for use KaVo ProXam iOS...

  • Page 114: Technical Specifications

    Scanner holder 119 mm x 186 mm x 114 mm (4.7 x 7.3 x 4.5 in.) Approximate weight Scanner with tip and cable KaVo ProXam iOS : 339 g (11.97 oz) Scanner base KaVo ProXam iOS : 213 g (7.51 oz) Scanner tip - 17 g (0.60 oz)

  • Page 115: Applicable Standards

    CAN/CSA C22.2 No. 60601 SOR-98-282 Canada Medical Device Regulations ICES-001 ISM Radio Frequency Generators US Food and Drug Administration US FDA CFR 21 Part 1040.10 Laser Products US FDA Laser Notice 50 CFR 21, Part 820 Instructions for use KaVo ProXam iOS...

  • Page 116: Approvals (All Systems)

    15.1.3 Optical specifications CAUTION Using controls, making adjustments, or performing procedures in a manner other than is specified in this documentation may result in hazardous radiation exposure. KaVo ProXam iOS Instructions for use...

  • Page 117: External Components And Connectors

    UL Medical Equipment Listing MEDICAL - GENERAL MEDICAL EQUIPMENT AS TO ELECTRICAL SHOCK, FIRE AND MECHANICAL HAZARDS ONLY IN ACCORDANCE WITH ANSI/AAMI ES60601-1 (2005) CAN/CSA C22.2 No. 60601-1:2008 EN 60601-1 (2006) IEC 60601-1-2 IEC 60825-1 30SD Instructions for use KaVo ProXam iOS...

  • Page 118: Emc Information

    The scanner is intended for use in the electromagnetic environment specified below. The customer or the user of the scanner should assure that it is used in such an environment. KaVo ProXam iOS Immunity test IEC 60601 Test level Compliance level...
  • Page 119 16 EMC information KaVo ProXam iOS Immunity test IEC 60601 Test level Compliance level Electromagnetic environment -guidance Voltage dips, short 0% UT; 0.5 cycle at 0°, Not applicable Main power quality interruptions and 45°, 90°, 135°, 180°, should be that of a variations on power 225°, 270°, and 315°...
  • Page 120 16 EMC information KaVo ProXam iOS Immunity test IEC 60601 Test level Compliance level Electromagnetic environment -guidance Radiated RF IEC 3 V/m 80.0 MHz to 2.5 3 V/m Proximity fields Recommended 61000-4-3 met the minimum separation distance requirement of section d = 1.2√P...
  • Page 121 16 EMC information KaVo ProXam iOS Immunity test IEC 60601 Test level Compliance level Electromagnetic environment -guidance CAUTION Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the scanner, including cables specified by the manufacturer.

  • Page 122: Faq

    How do I know if my scanner is connected? Icons in the lower-left corner of the screen indicate the status of the scanner. • Disconnected • Tip Disconnected • Heating - Stage 1 • Heating - Stage 2 KaVo ProXam iOS Instructions for use...
  • Page 123 Check that the cable is inserted into the scanner correctly. Make sure it is locked in place and cannot be pulled out without releasing the lock. Also ensure it is fully inserted into the USB port. Instructions for use KaVo ProXam iOS...
  • Page 124 Try to get as close as possible to the scan body, but do not put it inside of the tip. • Use the larger tip size because of the bigger field of view to aid in alignment Scan pattern: KaVo ProXam iOS Instructions for use...
  • Page 125 When scanning an Prep and Pre-op, the models should automatically align. Try stopping and restarting the scan of the second model. I’m having trouble with Manual Alignment Try using Refine Alignment or resetting the alignment and doing the manual alignment again. Instructions for use KaVo ProXam iOS...

  • Page 126: System Warnings

    Low disk space warning Dialog box appears if the amount of available disk space is below the recommended amount. If this happens, the user should back up their files and delete unnecessary files to increase space. KaVo ProXam iOS Instructions for use...

  • Page 127: Saving Screen Shots

    The screen shots are automatically numbered. You can rename them if desired. If you are using a third party laptop, please refer to that computer’s user manual on how to take and retrieve screenshots. Instructions for use KaVo ProXam iOS...

  • Page 128: Disposal

    For more information on where you can send your waste equipment for recycling, please contact your local city office or the manufacturer. KaVo ProXam iOS Instructions for use...
  • Page 130 KaVo Dental GmbH | Bismarckring 39 | 88400 Biberach | Deutschland www.kavo.com...

Table of Contents
