Displaying Lacp Port Status; Figure 106: Lacp System Status - SMC Networks SMCGS10C-SMART Management Manual

| Monitoring the Switch
C 5
HAPTER
Displaying Information on LACP
D LACP
ISPLAYING
P S
ORT TATUS
Partner System ID – LAG partner's system ID (MAC address).
◆
Partner Key – The Key that the partner has assigned to this LAG.
◆
Last Changed – The time since this LAG changed.
◆
Local Ports – Shows the local ports that are a part of this LAG.
◆
W I
EB NTERFACE
To display an overview of LACP groups active on this switch, click Monitor,
LACP, System Status.

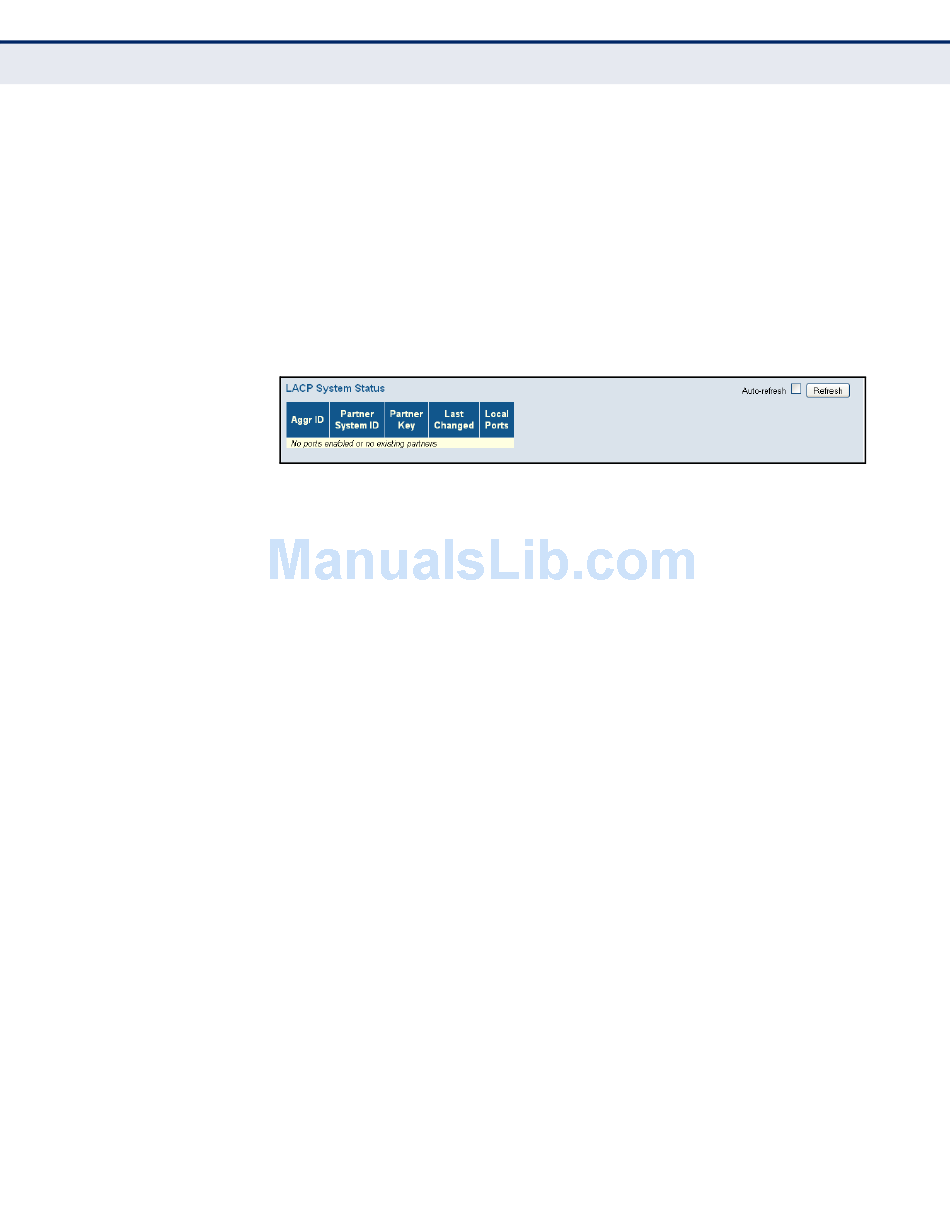

Figure 106: LACP System Status

Use the LACP Port Status page to display information on the LACP groups
active on each port.
P
ATH
Monitor, LACP, Port Status
P
ARAMETERS
These parameters are displayed:
Port – Port Identifier.
◆
LACP – Shows LACP status:
◆
Yes – LACP is enabled and the port link is up.
■
No – LACP is not enabled or the port link is down.
■
Backup – The port could not join the aggregation group but will
■
join if other port leaves. Meanwhile it's LACP status is disabled.
Key – Current operational value of the key for the aggregation port.
◆
Note that only ports with the same key can aggregate together.
Aggr ID – The Aggregation ID assigned to this LAG.
◆
◆ Partner System ID – LAG partner's system ID assigned by the LACP
protocol (i.e., its MAC address).
Partner Port – The partner port connected to this local port.
◆
– 226 –
