| Monitoring the Switch
C 5
HAPTER
Displaying Information About Security Settings
D DHCP
ISPLAYING
R S
ELAY TATISTICS

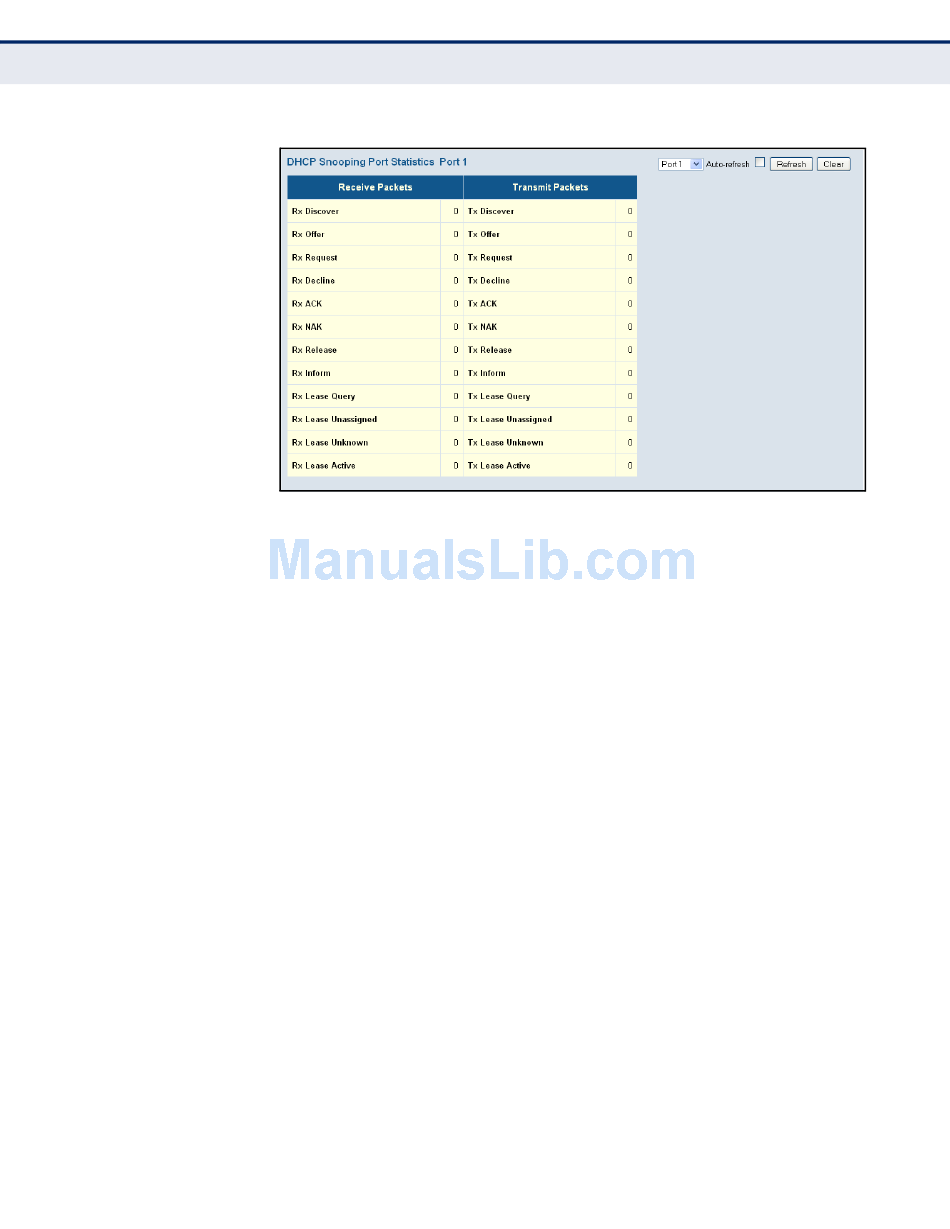

Figure 100: DHCP Snooping Statistics

Use the DHCP Relay Statistics page to display statistics for the DHCP relay
service supported by this switch and DHCP relay clients.
P
ATH
Monitor, Security, Network, DHCP, Relay Statistics
P
ARAMETERS
These parameters are displayed:
Server Statistics
Transmit to Server – The number of packets relayed from the client
◆
to the server.
Transmit Error – The number of packets containing errors that were
◆
sent to clients.
Receive from Server – The number of packets received from the
◆
server.
Receive Missing Agent Option – The number of packets that were
◆
received without agent information options.
Receive Missing Circuit ID – The number of packets that were
◆
received with the Circuit ID option missing.
Receive Missing Remote ID – The number of packets that were
◆
received with the Remote ID option missing.
Receive Bad Circuit ID – The number of packets with a Circuit ID
◆
option that did not match a known circuit ID.
– 218 –
