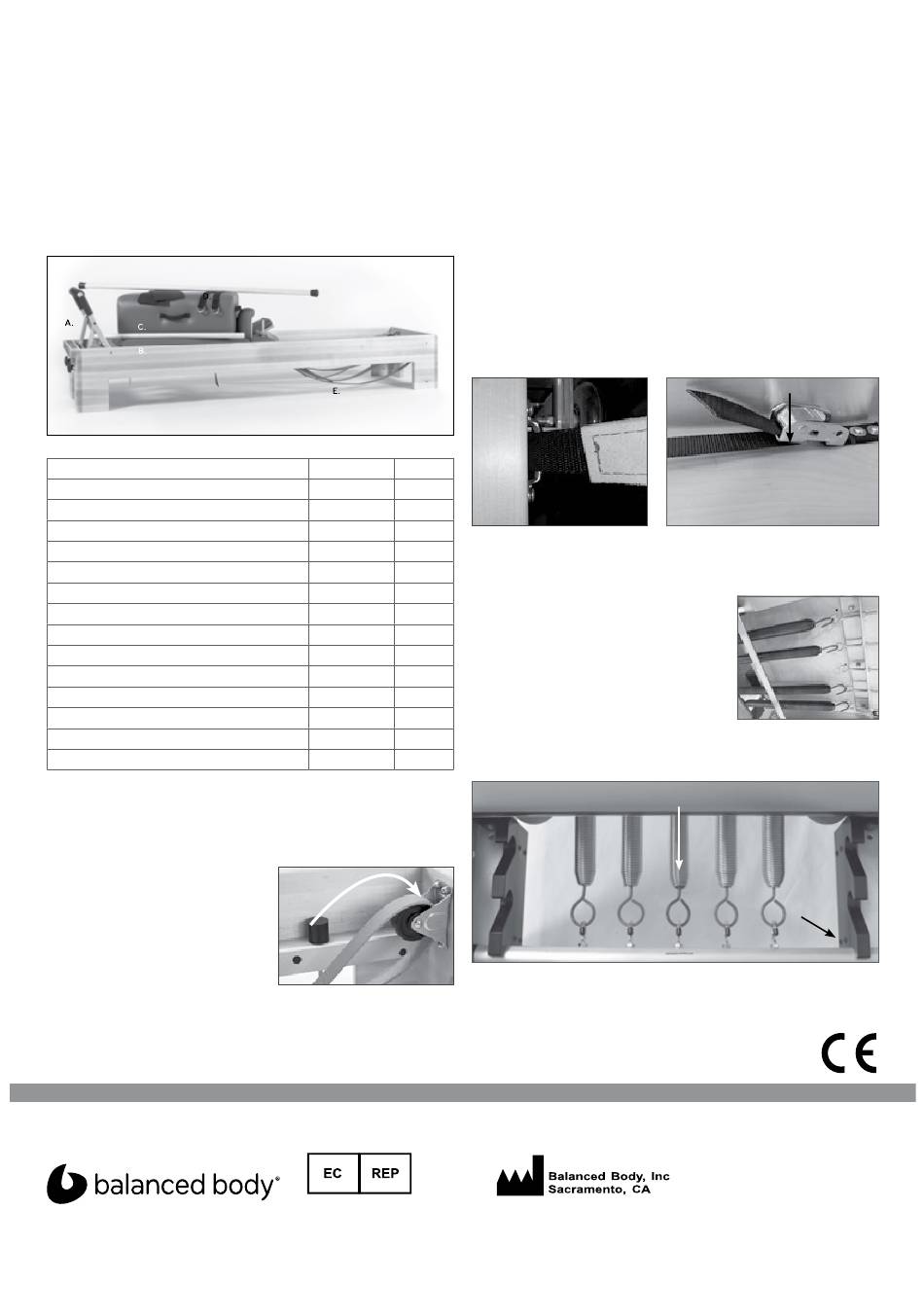

Balanced Body CenterLine Reformer Assembling Manual

Hide thumbs Also See for CenterLine Reformer:

Advertisement

Table of Contents

Assembling the Balanced Body
CenterLine
THIS IS A MEDICAL DEVICE
A. Footbar B. Carriage C. Sitting Box D. Gondola Pole & Dowel E. Straps
DESCRIPTION
Gondola Pole
Short Box Dowel
Kneeling Pads
Sitting box
Cotton Foot Strap
Extender Straps
Leather Straps
Handles
Green Springs
No Roll Springbar
Detachable Shoulder Assembly
Detent Pin w/Lanyard
Screw with locking knob
Carriage Exension Stopper
INSTALL THE CARRIAGE
Clean all the carriage wheels and the metal rail surfaces of the
frame. Carefully place the carriage into the frame with the
headrest facing away from the footbar.
INSTALL THE STRAPS
Place strap handles over shoulder
rests. Insert the end of leather strap
with the black fabric through the
caster (rough leather side is against
the caster) as shown in Figure A.
Statement of Intended Use
The Reformer/Tower device is intended by the manufacturer to be used by people for the purposes of physiotherapy, rehabilitation, the prevention, treatment and
relief of injuries, supportive, functional therapy for a disability or for general strengthening and improving the mobility of the human body. Should injury
occur during usage please report to the manufacturer and competent authority of the Member State in which the user and/or patient is established.
For printed instructions contact Balanced Body.
Reformer (and Tower)
®
PART NO.
QTY.
720-006
607-128
108-018
721-010
607-349
607-343
607-482
950-161
1 pair
SPR9360
17436
N/A
N/A
N/A
200-211
Figure A: Straps and Carriage Extension
Stopper.
EMERGO EUROPE
Westervoortsedijk 60,
6827 AT Arnhem
The Netherlands
Guide the strap through the silver loop under the carriage as
shown in figure B. Depress the metal lever on the clip and guide
the black end of the strap through. It is important that the black
strap goes through the clip as shown in Figure C. Adjust until
strap is tight.
Note: straps would need to be adjusted if the springbar is moved
to a different gear.
1
1
2
Figure B
1
1
ATTACH THE SPRINGS TO THE UNDERSIDE OF THE
2
CARRIAGE
Attach one spring to each eye-bolt on
2
the underside of the carriage as shown in
Figure D. The open end of the spring hook
4
should be facing down.
1
2
INSTALL THE SPRINGBAR
2
Place the springbar with hooks facing up
2
into the gear block as shown in Figure E.
2
Figure E: Springs and Springbar.
®
Figure C: Metal clips for attaching straps
to under carriage.
Figure D: Springs at rest
Optional 5th Spring
Springbar
in gear
1-800-PILATES | +1-916-388-2838
pilates.com | info@pilates.com
Contact Us
17441A | 2024-02
