Assembling the Balanced Body
CenterLine

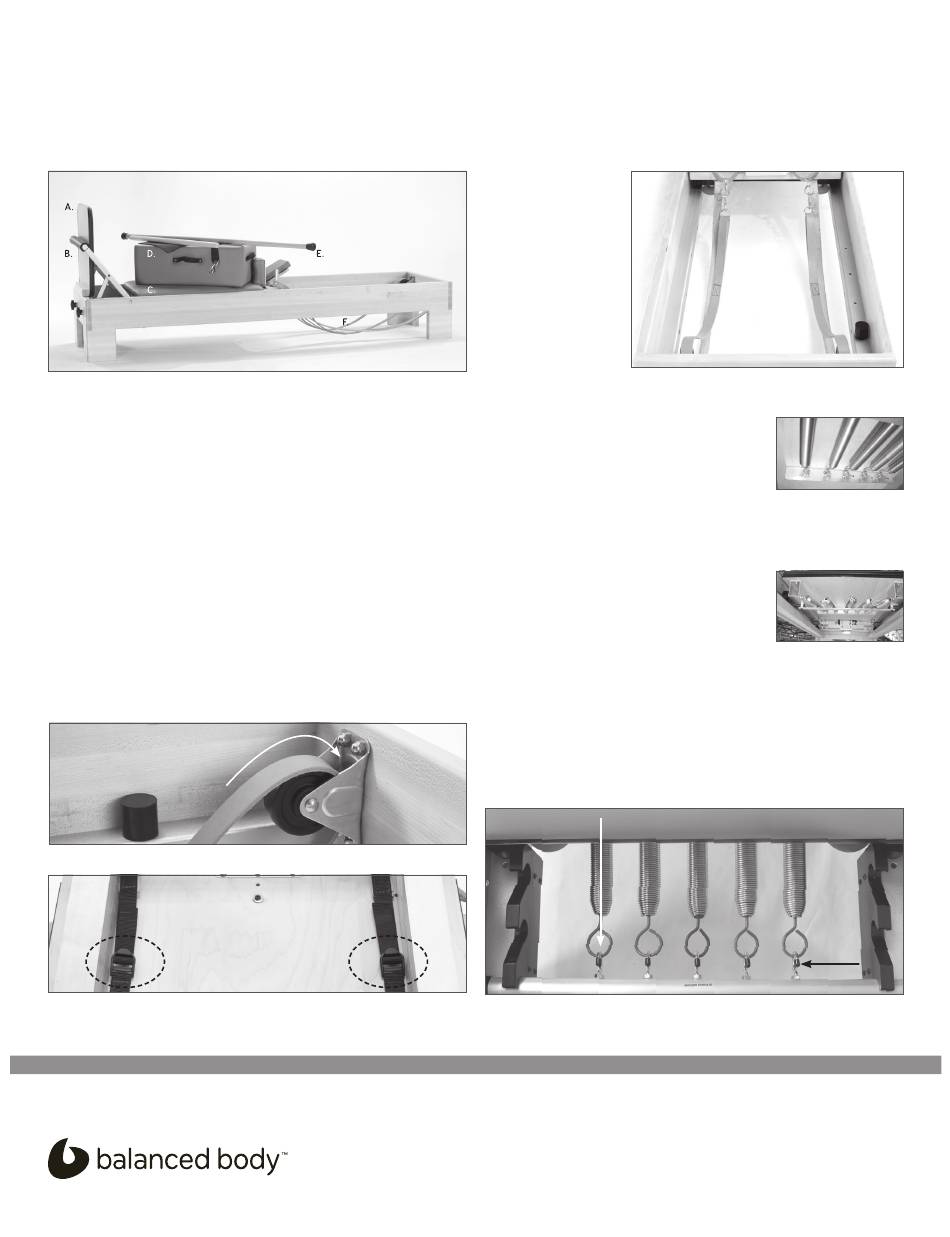

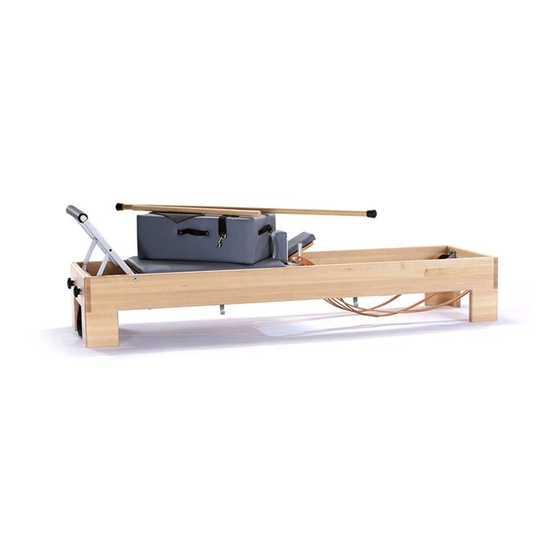

A. Foot Plate (optional) B. Footbar C. Carriage D. Sitting Box E. Gondola Poles F. Straps
The CenterLine Reformer comes with a sitting box and two gondola
poles. If you are missing any of these, please call Balanced Body. The
CenterLine foot plate is available as an optional accessory.
Install the carrIage
Clean all the carriage wheels and the of the tracking rail surfaces of
the frame. Carefully place the carriage into the frame with the headrest
facing away from the footbar.
Install the straps
Place strap handles over shoulder rests. Track the end of leather strap
with the black fabric through the caster (smooth leather side is face up)
as shown in Figure A.
Figure A: Straps and Carriage Extension Stopper.
Figure B: CenterLine Reformer Straps. Attach straps here on underside of carriage.
Reformer
™
®
Track the black
end of the strap
through the clip on
the underside of the
carriage and tighten
as shown in Figure B
Repeat on other
side. Proper strap
orientation is shown
in Figure C.
Figure C: Proper Strap Orientation.
attach the sprIngs to the
undersIde of the carrIage
Attach one spring to each eye-bolt on the
underside of the carriage as shown in Figure
D. The open end of the spring hook should be
facing down.
When springs are not attached to the
springbar they will rest on the flat brace as
shown in Figure E.
Install the sprIngbar
Place the springbar with hooks facing up into the gear block as shown
in Figure F.
Springbar hooks are facing up
Figure F: Springs and Springbar.
Figure D: Springs under
carriage
Figure E: Springs at rest
X Carriage
Springbar
in footbar
gear
