Balanced Body CoreAlign Assembly Instructions

How to Assemble the Balanced Body
CoreAlign
®
LADDER SOLD SEPARATELY. LADDER ASSEMBLY MUST
BE COMPLETE BEFORE BEGINNING.
PARTS LIST
Complete ladder (sold separately)
PARTS
Ladder Adapter
Wall Mounting Ladder Bracket
(2/4 not needed with newer ladders.
See note below.)
12 x 3/4¾ Screw
10 x 1 Screw (Not needed with newer ladders.
See note below.)
TOOLS YOU WILL NEED (NOT INCLUDED):
» Large head Phillips screwdriver (# 3 tip)
Assembled ladder is 91" (231 cm) tall. Contact
Balanced Body if your ceiling is lower than
91".
TO START:

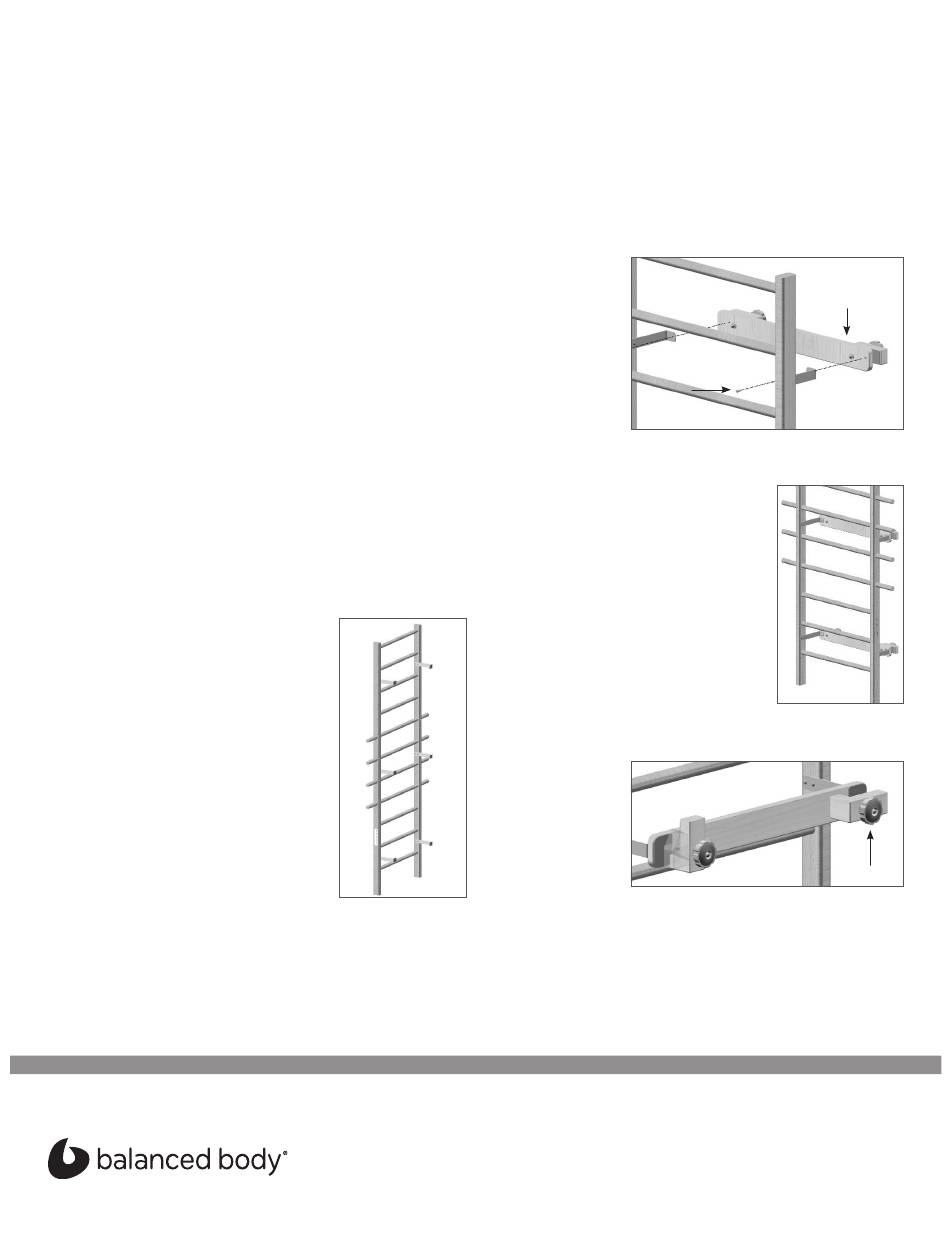

Step 1: Your ladder assembly should be
complete. Fig 1. Note: Center brackets may
be required with older ladders that were
shipped with 4 brackets; these are included.
See ladder assembly instructions or contact
Balanced Body.
Brackets for Wall Tower Mount
731-001 or 731-004
(3) 707-237
(2) 616-085
(6) GEN9033
(4) GEN9034
Fig 1
STEP 2
Using 12 x 3/4¾
screws, attach the
ladder adapter to
the brackets of the
ladder. Note: Holes
are pre-drilled. Fig 2
Fig 2
STEP 3
Repeat on the other two adapters. Fig 3
STEP 4
Rotate the clamps
upward and place
the ladder against
the Wall unit.
Rotate the clamps
back downwards to
attach. Repeat on
all brackets. Fig 4
Fig 4
®
Adapter bracket
Screws
Fig 3
Clamp
Contact Us
1-800-PILATES | +1-916-388-2838
pilates.com | info@pilates.com
400-196 | 07.05.18
