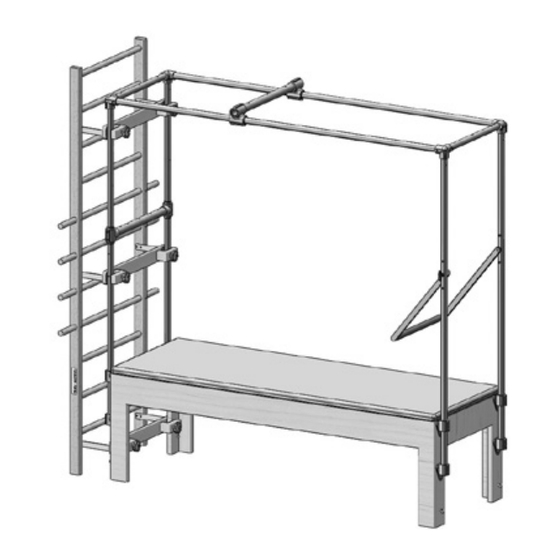

How to Assemble the Balanced Body
CoreAlign
®
PLEASE NOTE:
Ladder sold separately. Ladder assembly
must be complete before beginning.
PARTS LIST
(1) Narrow Ladder Adapter
(2) Standard Ladder Adapter
(2) Long Bracket
(6) 12 x ⁄ Screw GEN9033
3
4
Tools you will need (not included):
» Drill and ⁄ drill bit
1
8"
» Large head Phillips screwdriver (#3 tip)
Note: Assembled ladder is 91" (231 cm)
tall. Contact Balanced Body if your ceiling
is lower than 91".
TO START:
STEP 1
Using a screwdriver, remove bottom
brackets from the ladder. (Fig A). If center
brackets were not originally included on
your ladder, move the bottom brackets
to the middle location. If center brackets
were included, discard the lower brackets.
Brackets for Cadillac Mount
707-236
707-237
616-133

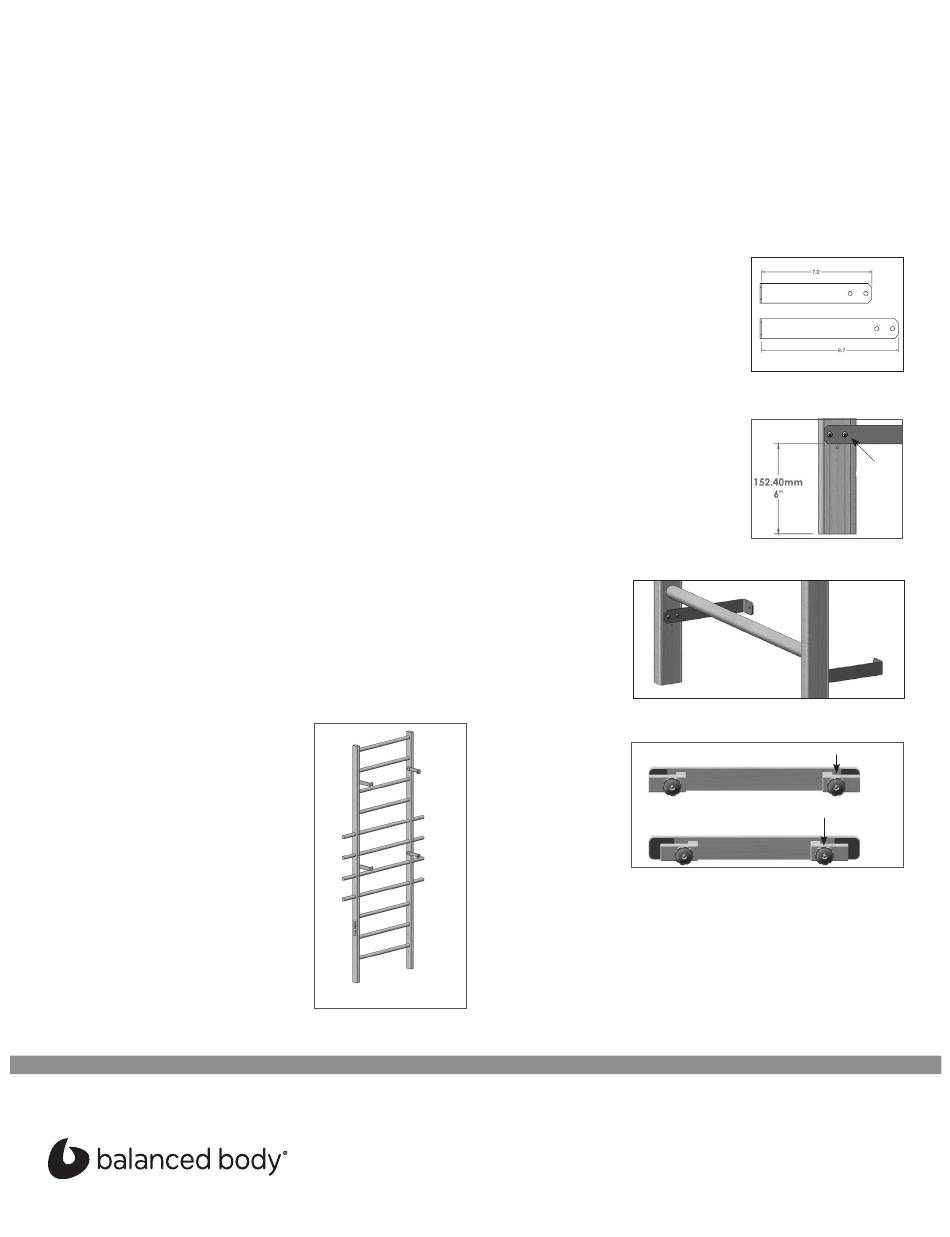

Fig A: Bottom brackets removed.
STEP 2
Identify long brackets. (Fig B)
STEP 3
Align the bottom edge of the long
brackets 6 inches from the ladder bottom.
Drill two 1/8" diameter hole for the two
screws. See Fig C (side view).
STEP 4
The flanges must point
inward. The newly
installed brackets will
look like Fig. D
Fig D
STEP 5
Identify long clamps
Long brackets middle &top clamp assembly
versus short clamps.
(Fig E).
Short brackets bottom clamp assembly
Fig E
®
Fig B: Short and long brackets.
Screws
Fig C
