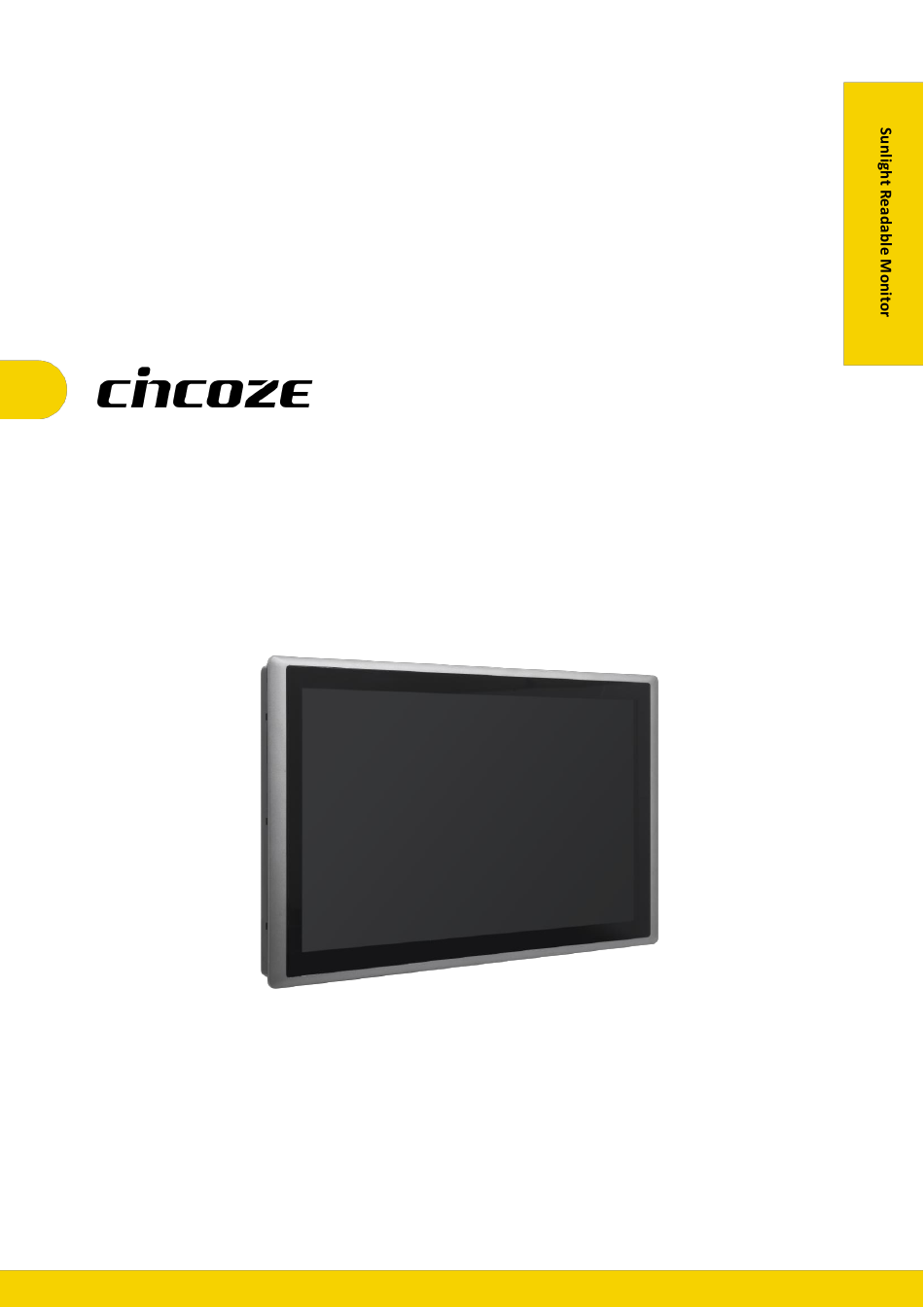

- Page 1 CS-100/M1101 Series User Manual Sunlight Readable Monitor 8.4" ~24" TFT-LCD Sunlight Readable Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA Version: V1.04...
-
Page 2: Table Of Contents
Contents Preface..............................4 Revision ............................4 Copyright Notice .......................... 4 Acknowledgement ........................4 Disclaimer ............................. 4 Declaration of Conformity ......................4 FCC ............................4 CE ............................5 Product Warranty Statement ....................... 5 Warranty ..........................5 RMA ............................5 Limitation of Liability ......................6 Technical Support and Assistance .................... - Page 3 1.4.4 CS-115C/M1101 ......................41 1.4.5 CS-W115FHC/M1101 ....................42 1.4.6 CS-117C/M1101 ......................42 1.4.7 CS-119C/M1101 ......................43 1.4.8 CS-W121C/M1101 ..................... 43 1.4.9 CS-W124C/M1101 ..................... 44 Chapter 2 Introduction to Switches and Connectors on Monitor Module ........45 2.1 Switches and Connectors Location ..................46 2.1.1 Rear Panel .........................
-
Page 4: Preface
2025/03/19 Copyright Notice © 2023 by Cincoze Co., Ltd. All rights are reserved. No parts of this manual may be copied, modified, or reproduced in any form or by any means for commercial use without the prior written permission of Cincoze Co., Ltd. All information and specification provided in this manual are for reference only and remain subject to change without prior notice. -
Page 5: Product Warranty Statement
(such as a fuse, battery, etc.), are not warranted. Before sending your product in, you will need to fill in Cincoze RMA Request Form and obtain a RMA number from us. Our staff is available at any time to provide you with the most friendly and immediate service. -
Page 6: Limitation Of Liability
Limitation of Liability Cincoze’ liability arising out of the manufacture, sale, or supplying of the product and its use, whether based on warranty, contract, negligence, product liability, or otherwise, shall not exceed the original selling price of the product. The remedies provided herein are the customer’s sole and exclusive remedies. -
Page 7: Safety Precautions
Safety Precautions Before installing and using this device, please note the following precautions. Read these safety instructions carefully. Keep this User’s Manual for future reference. Disconnected this equipment from any AC outlet before cleaning. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible. -
Page 8: Package Contents
Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty CS-100/M1101 Monitor Module USB Cable VGA Cable Power Terminal Block Connector (Female) Screw Pack Panel Mounting Kit (The quantity varies with the size of the display module, please refer to the datasheet for the actual quantity) Note: Notify your sales representative if any of the above items are missing or damaged. - Page 9 21.5" TFT-LCD 1000nits Sunlight Readable Touch Monitor CS-W121C/M1101 with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA 24" TFT-LCD 1500nits Sunlight Readable Touch Monitor CS-W124C/M1101 with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA CS-100/M1101 | User Manual...
-
Page 10: Chapter 1 Product Introductions
Chapter 1 Product Introductions CS-100/M1101 | User Manual... -
Page 11: Overview
1.1 Overview The Cincoze CS-100/M1101 series sunlight-readable industrial touch monitors are specifically designed for outdoor applications. The highest brightness is 1,800 nits and there is a selection of screen sizes, ratios, and brightnesses. The CS-100/M1101 is the best choice for outdoor kiosk displays and HMI applications because it is rugged and enables easy on-site maintenance. -
Page 12: Specifications
1.2 Specifications 1.2.1 CS-108C/M1101 Model Name CS-108C Display • 8.4" (4:3) LCD Size • 800 x 600 Max. Resolution • 1600 Brightness (cd/m2) • 600 : 1 Contrast Ratio • 16.2M LCD Color • 0.213 (H) x 0.213 (V) Pixel Pitch •... - Page 13 • UL, cUL, CB, IEC, EN 62368-1 Safety Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio •...
- Page 14 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 15: Cs-110Hc/M1101
1.2.2 CS-110HC/M1101 Model Name CS-110HC Display • 10.4" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness (cd/m2) • 1000 : 1 Contrast Ratio • 16.2M LCD Color • 0.206 (H) x 0.206 (V) Pixel Pitch • 178 (H) / 178 (V) Viewing Angle •... - Page 16 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 17 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 18: Cs-112Hc/M1101
1.2.3 CS-112HC/M1101 Model Name CS-112HC Display • 12.1" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1500 Brightness (cd/m2) • 700 : 1 Contrast Ratio • 16.7M LCD Color • 0.24 (H) x 0.24 (V) Pixel Pitch • 160 / 160 Viewing Angle •... - Page 19 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 20 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 21: Cs-115C/M1101
1.2.4 CS-115C/M1101 Model Name CS-115C Display • 15" (4:3) LCD Size • 1024 x 768 Max. Resolution • 1800 Brightness (cd/m2) • 800 : 1 Contrast Ratio • 16.2M LCD Color • 0.297 (H) x 0.297(V) Pixel Pitch • 160 / 150 Viewing Angle •... - Page 22 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 23 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 24: Cs-W115Fhc/M1101
1.2.5 CS-W115FHC/M1101 Model Name CS-W115FHC Display • 15.6" (16:9) LCD Size • 1920 x 1080 (Full HD) Max. Resolution • 1,200 Brightness (cd/m2) • 800 : 1 Contrast Ratio • 16.7M LCD Color • 0.17925 (H) x 0.17925 (V) Pixel Pitch (mm) •... - Page 25 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 26 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 27: Cs-117C/M1101
1.2.6 CS-117C/M1101 Model Name CS-117C Display • 17" (5:4) LCD Size • 1280 x 1024 Max. Resolution • 1500 Brightness (cd/m2) • 800 : 1 Contrast Ratio • 16.7M LCD Color • 0.264 (H) x 0.264 (V) Pixel Pitch • 160 / 140 Viewing Angle •... - Page 28 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 29 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 30: Cs-119C/M1101
1.2.7 CS-119C/M1101 Model Name CS-119C Display • 19" (5:4) LCD Size • 1280 x 1024 (SXGA) Max. Resolution • 1600 Brightness (cd/m2) • 1000 : 1 Contrast Ratio • 16.7M LCD Color • 0.294 (H) x 0.294 (V) Pixel Pitch •... - Page 31 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 32 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 33: Cs-W121C/M1101
1.2.8 CS-W121C/M1101 Model Name CS-W121C Display • 21.5” (16:9) LCD Size • 1920x1080 (Full HD) Max. Resolution • 1000 Brightness (cd/m2) • 5000 : 1 Contrast Ratio • 16.7M LCD Color • 0.24825 (H) x 0.24825 (V) Pixel Pitch • 178/178 Viewing Angle •... - Page 34 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 35 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 36: Cs-W124C/M1101
1.2.9 CS-W124C/M1101 Model Name CS-W124C Display • 24” (16:9) LCD Size • 1920x1080 Max. Resolution • 1500 Brightness (cd/m2) • 5000 : 1 Contrast Ratio • 16.7M LCD Color • 0.27675 (H) x 0.27675 (V) Pixel Pitch • 178/178 Viewing Angle •... - Page 37 Model Name M1101 Graphics • 1x HDMI Connector (1920 x 1080 @60Hz) HDMI-in • 1x DisplayPort Connector (1920 x 1080 @60Hz) DP-in • 1x VGA Connector (1920 x 1080 @60Hz) VGA-in Audio • 1x Audio Line in, Phone Jack 3.5mm Audio input •...
- Page 38 • UL, cUL, CB, IEC, EN 62368-1 Safety * Product Specifications and features are for reference only and are subject to change without prior notice. For more information, please refer to the latest product datasheet from Cincoze's website. CS-100/M1101 | User Manual...
-
Page 39: External Layout
1.3 External Layout 1.3.1 Front 1.3.2 Rear 1.3.3 Left 1.3.4 Right CS-100/M1101 | User Manual... -
Page 40: Dimensions
1.4 Dimensions 1.4.1 CS-108C/M1101 1.4.2 CS-110HC/M1101 CS-100/M1101 | User Manual... -
Page 41: Cs-112Hc/M1101
1.4.3 CS-112HC/M1101 1.4.4 CS-115C/M1101 CS-100/M1101 | User Manual... -
Page 42: Cs-W115Fhc/M1101
1.4.5 CS-W115FHC/M1101 1.4.6 CS-117C/M1101 CS-100/M1101 | User Manual... -
Page 43: Cs-119C/M1101
1.4.7 CS-119C/M1101 1.4.8 CS-W121C/M1101 CS-100/M1101 | User Manual... -
Page 44: Cs-W124C/M1101
1.4.9 CS-W124C/M1101 CS-100/M1101 | User Manual... -
Page 45: Chapter 2 Introduction To Switches And Connectors On Monitor Module
Chapter 2 Introduction to Switches and Connectors on Monitor Module CS-100/M1101 | User Manual... -
Page 46: Switches And Connectors Location
2.1 Switches and Connectors Location 2.1.1 Rear Panel USB2.0 DC IN HDMI Audio-in Switches & Connector Definition DC IN DC +9V-48V Power Connector A standard 15-pin female VGA connector used to connect the monitor to the system graphics interface. Audio-in Used to connect an audio cable. -
Page 47: Right Panel
2.1.2 Right Panel Power LED Menu Standby LED Brightness Down LCD On/Off Auto Brightness Up Definition Switches & Connector OSD (On Screen Display) Function: Brightness Down Used to turn down the brightness on the screen display, or to decrease the value of selected item. -
Page 48: Osd Function Description
2.2 OSD Function Description OSD Menu Description • Backlight • Brightness • Contrast • Sharpness • Exit • Auto Adjust • H Position (Horizontal) • V Position (Vertical) • Clock • Phase • White Balance • Exit • Temperature • Color Effect •... - Page 49 Base on LCD type information Exit the main menu * If using HDMI or DisplayPort connection, all options within the "Display" menu are unavailable. CS-100/M1101 | User Manual...
-
Page 50: Chapter 3 System Setup
Chapter 3 System Setup CS-100/M1101 | User Manual... -
Page 51: Installing Cds Mount
3.1 Installing CDS Mount In order to prevent electric shock or system damage, must turn off power and disconnect the unit from power source before removing the chassis cover. (Afin d'éviter tout risque d'électrocution ou d'endommagement du système, vous devez couper l'alimentation et débrancher l'appareil de la source d'alimentation avant de retirer le couvercle du châssis.) This chapter takes the convertible monitor module (M1101) and display module (CS-115C) for... - Page 52 Step 4. Locate the female connector on the Convertible Monitor Module and then connect the modules. Step 5. Have the studs screwed to the display module through the holes of the Convertible Monitor Module. CS-100/M1101 | User Manual...
-
Page 53: Installing Vesa Mount
3.2 Installing VESA Mount This chapter takes the convertible monitor module (M1101) and display module (CS-115C) for demonstration purposes. The following picture indicates the VESA mounting hole pattern on the top side of M1101, which is compliant with the VESA mounting standard. Step 1. -
Page 54: Installing Panel Mount
3.3 Installing Panel Mount Step 1. Accessories provided by Cincoze are as below. Before assembly, please prepare panel mount PPC and customer’s fixture. (Please note that the quantity of mounting kits varies with the size of the display module, please refer to the datasheet for the actual quantity) - Page 55 Step 2. All mounting kits displayed are to be inserted into holes. Step 3. Installation preparation and steps. CS-100/M1101 | User Manual...
- Page 56 CS-100/M1101 | User Manual...
- Page 57 Step 4. Apply all mount kits to the rest of holes. And you have completed the panel mount installation, as shown below. CS-100/M1101 | User Manual...
-
Page 58: Installing Optional Accessories
3.4 Installing Optional Accessories 3.4.1 URM01 1. Locate the screw holes on the PC or monitor module. 2. Put on the rack mount base and fasten the screws. CS-100/M1101 | User Manual... - Page 59 3. Assemble two rack mount brackets by fastening 4 screws (M5x6) at each side. For 8.4” ~ 17” Panel PC For P2002E For P2002 / P1001E For M1101/ P1001 / P1101 / P1201/ P1301/ P2102/ P2102E/P2202/P2202E/P2302/P2302E Left Side Right Side Bottom Side CS-100/M1101 | User Manual...
- Page 60 For 19” ~ 24” Panel PC For P2002E For P2002 / P1001E For M1101/ P1001 / P1101 / P1201/ P1301/ P2102 / P2102E/P2202/P2202E/P2302/P2302E Left Side Right Side Bottom Side 4. Assemble two rack mount brackets by fastening 4 screws (M5x12), flat washers and hex nuts at each side.
- Page 61 © 2023 Cincoze Co., Ltd. All rights reserved. The Cincoze logo is a registered trademark of Cincoze Co., Ltd. All other logos appearing in this catalog are the intellectual property of the respective company, product, or organization associated with the logo.
