Summary of Contents for Bryton Rider 17

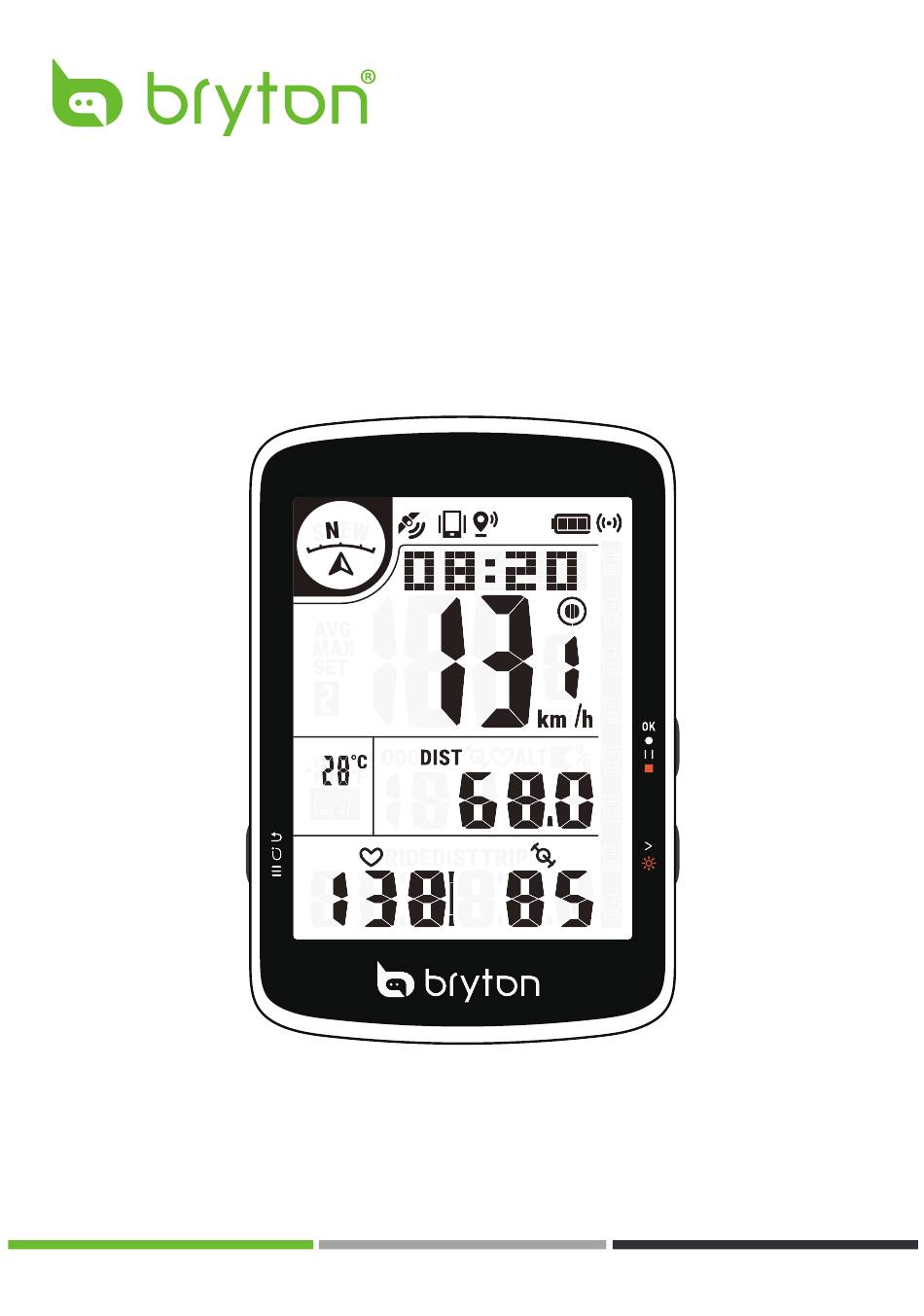

- Page 1 USER MANUAL Rider 17...
-
Page 2: Table Of Contents
Noti cations ....... Heading Description ....Pro le ........Step 1: Charge your Rider 17..Appendix ......... Step 2: Turn On Rider 17 ..... Speci cation ....... Step 3:Select Unit ....... Install Rider 17 ......Step 4: Acquire Satellite Signals 6 .. -
Page 3: Australian Consumer Law
Video Tutorial For a step-by-step demonstration of device and Bryton Active app, please scan the QR code below to check out Bryton Tutorial Videos. http://www.youtube.com/c/BrytonActive... -
Page 4: Getting Started
Getting Started This section will guide you through basic preparations before the rst use with your Rider Initial Setup 1.Download Bryton Active app on your phone. 2.Turn on your Rider 17. 3. After logging into the app, add the Rider 4. -

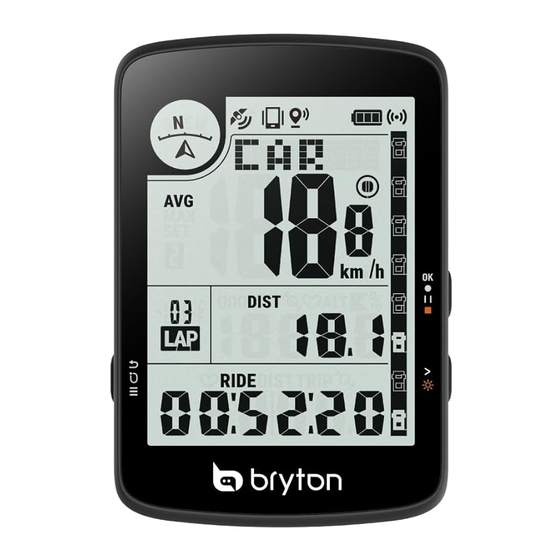

Page 5: Rider 17 Keyfunction
Long press to turn on/off backlight. Start Pause Stop recording Power Return Page Backlight Menu Reboot Rider Press ( ) at the same time to reboot the device. Accessories The Rider 17 E SKU includes the following accessories: Bike Mount Safety Landyard... -
Page 6: Status Icons
Status Icons Phone connected LIVE TRACK GPS Signal Battery Status Heading Radar Connected Average Recording / Pause Maximum Radar Strip Setting Bike Pro le Data Title Temperature Data Title Strong Weak No Signal Heading GPS Signal GPS Signal Phone LiveTrack Battery Radar Connected... -
Page 7: Step 1: Charge Your Rider 17
Step 1: Charge your Rider 17 Charge the Rider 17 for at least 4 hours. Unplug the device when it is fully charged. When the battery is low,you will see the battery frame ashing. Keep the device plugged in until properly charged.The temperature suitable for charging battery is 0°C ~ 40°C. Beyond this temperature range, charging will be terminated and the device will draw power from battery. -
Page 8: Step 4: Acquire Satellite Signals 6
Step 4: Acquire Satellite Signals Once the Rider 17 is turned on, it will automatically search for satellite signals. It may take 30 to 60 seconds to acquire signals for rst time use. • The GPS signal Icon ( ) appears when GPS is xed. -
Page 9: Step 6: Share Your Records
Step 6: Share Your Records Auto Sync with 3rd Party Platforms It is easy to sync activities from the Bryton Active App to Komoot / Strava / RideWithGPS / Relive / TrainingPeaks by pairing accounts on your phone. Enable auto sync on your phone a. -
Page 10: Auto Sync Tracks To Bryton Active
Bryton Active match, press Cancel and try again. App. NOTE: Bryton Active App syncs with Brytonactive.com. If you already have a brytonactive.com account, please use the same account to log in to Bryton Active App and vice versa. -
Page 11: Firmware Update Via Active App
Firmware Update via Active app Bryton releases a new rmware version on an irregular basis to add new functions or x bugs. We highly recommend that you update the rmware once the latest version is available. It usual- ly takes a while to download and install the rmware. You can choose to update the rmware via... -
Page 12: Live Track
Share your real-time location with friends and family using the Live Track feature. Before using, please ensure that Rider 17 is already recording a ride by pressing the record button and then opening the Bryton Active app on our smartphone. This feature will not work if the device is not recording. -
Page 13: Settings
Settings When not recording, press to enter the settings. 1. Select Bike Profile You can customize 2 bike pro les. Press to Select Bike1 or 2 and Press to con rm. Once the pro le is set up, bike information will be stored. Make the ride easier. -
Page 14: Pair Sensors
3.Pair Sensors To pair sensors with Rider 17, please have Bryton Smart Sensors installed rst, and then wear heart rate monitor or rotate crank and wheel a few times to wake Bryton Smart Sensors up while scanning. Heart Rate Monitor... -
Page 15: Daylight Saving Time
4.Daylight Saving Time Press to adjust the value and Press to adjust next value. Press to con rm. The rst value can be set as “-” or “0”. The last 2 values can only be set as “30” or “00”. OK &... -
Page 16: App
2. To pair sensors with your device, please have Bryton Smart Sensors installed rst, then wear a heart rate monitor or rotate the crank and wheel a few times to wake Bryton Smart Sensors 3. For Bike Radars ,please turn the power on before starting pairing. -
Page 17: Bike Radar
Bike Radar Go for a ride. The Gardia radar’s status and information will be displayed on the right screen. The vehicle’s position will move up the screen as the vehicle approaches your bike. High Awareness: When a vehicle is approaching at high speed. CAR, black screen, and ALERT will show by turns rapidly. -
Page 18: Bryton App Settings
Bryton App Settings After pairing your Rider 17 with Bryton Active App, you can set up more Settings and recevie notifications. General Setting Backlight Duration Turn on/off the backlight while the device is on. Keytone Enable or disable Key Tone to change the settings for key presses. -
Page 19: Noti Cations
Noti cations After pairing your compatible smartphone via Bluetooth with Rider 17, you can receive phone calls, texts and email noti cations on your Rider 17. iOS Phone Pairing a. Go to your phone "Settings > Bluetooth" and enable Bluetooth. -
Page 20: Pro Le
Pro le You only can edit the Profile via Bryton Active App. Just edit your profile info in the profile tab in Bryton Active. Once the device is connected to the app, your profile info will be updated to your Rider 17. -
Page 21: Appendix
Integrated high-sensitivity GNSS receiver with embedded antenna Bluetooth smart wireless technology with embedded antenna; BLE Smart 2.4GHz band OdBm Water Resistant Water resistant to a depth of 1 meter for up to 30 minutes Barometer Equipped with barometer Install Rider 17 Mount Rider 17... -
Page 22: Wheel Size And Circumference
Wheel Size and Circumference The wheel size is marked on both sides of the tires. Wheel Size L (mm) Wheel Size L (mm) 12x1,75 26x3,00 2170 12x1,95 26x1-1/8 1970 14x1,50 1020 26x1-3/8 2068 14x1,75 1055 26x1-1/2 2100 16x1,50 1185 650C Tubular 26 1920 x7/8 16x1,75... -
Page 23: Data Field
Data Field Category Data Field Description of Data Fields Altitude The height of your current location above or below sea level. Gradient The calculation of altitude over distance. Altitude Alt. Gain The total altitude distance gained during this current activity. Alt. -
Page 24: Basic Care For Your Rider 17
20 cm separation distance to the user. Hereby, Bryton Inc. declares that the radio equipment type Bryton product is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the follow- ing internet address: http://www.brytonsport.com/download/Docs/CeDocs_Rider17.pdf...
