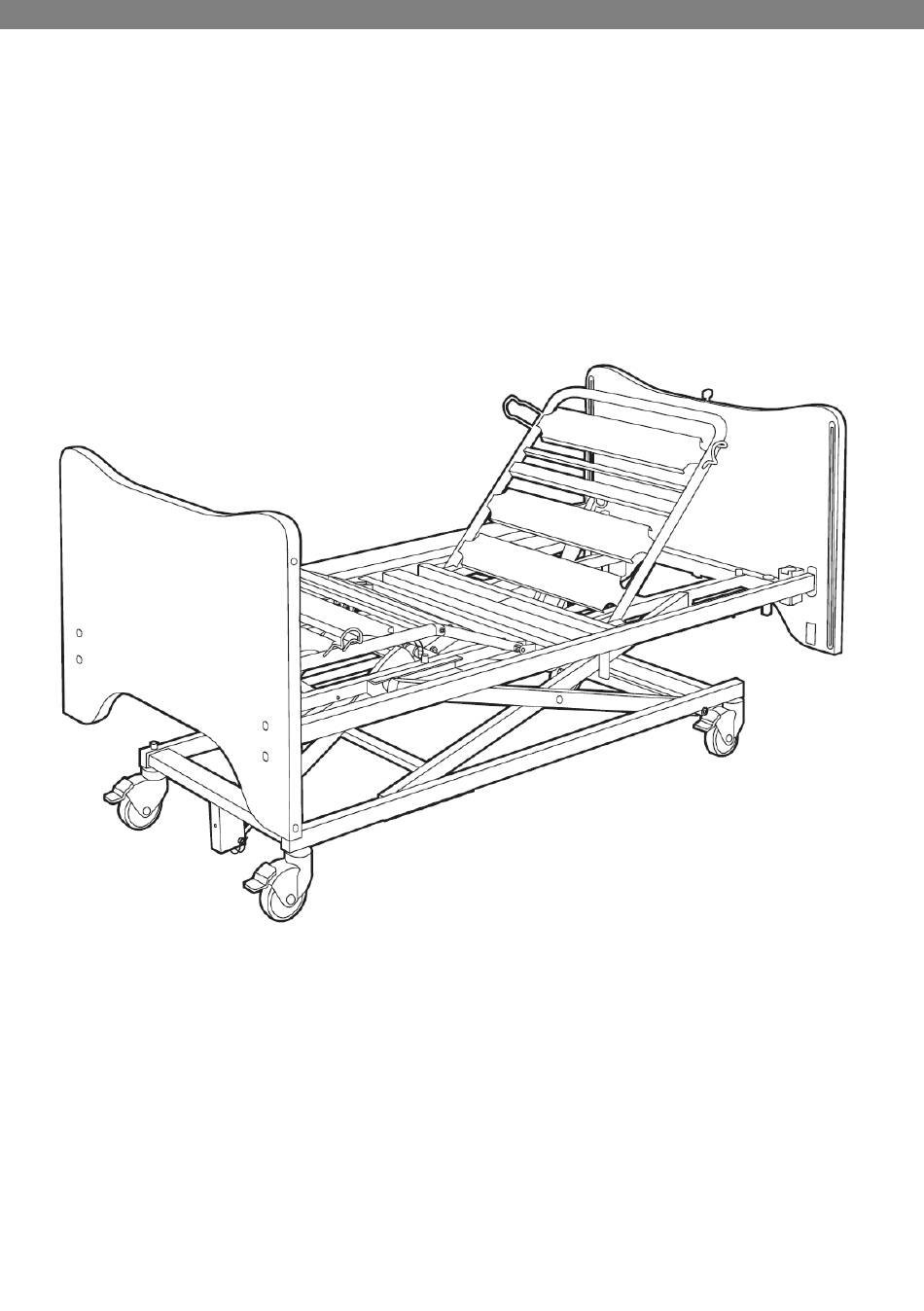

- Page 1 WINNCARE France Technical Manual KALIN Junior Medical Beds TM_KALIN_EN 05/12/2024 - 1 -...
-
Page 2: Table Of Contents
WINNCARE France TABLE OF CONTENTS PREREQUISITES ..........................- 3 - TRANSPORT AND STORAGE....................... - 3 - ELECTRICAL CHARACTERISTICS ....................... - 3 - Electrical data ........................... - 3 - Electromagnetic compatibility ......................- 4 - Equipotentiality ..........................- 6 - TECHNICAL CHARACTERISTICS ......................- 6 - Noise .............................. -
Page 3: Prerequisites
WINNCARE France PREREQUISITES The user or staff must be trained and informed of the risks associated in using the bed. They must prohibit its use and be vigilant when it is used by confused or disorientated people. The activation by a child of a feature of the medical bed shall be conditional upon the demonstration by a health professional of the child’s physical and mental capacities to select in on the suspended handset... -
Page 4: Electromagnetic Compatibility
WINNCARE France LECTROMAGNETIC COMPATIBILITY Precaution: Although the bed is conforming with Electromagnetic Compatibility, some devices may alter how it functions, in which case they must be used at a distance or not used at all. Warning: The bed is an electromedical device requiring special precautions with regard to electromagnetic compatibility. - Page 5 WINNCARE France communication equipment EN 610004-3 2 kV for feeders 1 kV for 2 kV for feeders Electrical fast input/output lines 1 kV for input/output lines transients Repetition EN 61000-4-4 Repetition frequency at 100 kHz frequency at 100 Differential mode ...
-
Page 6: Equipotentiality
RECAUTION SE OF A PATIENT LIFT DINING TABLE WINNCARE France recommends the use of a patient lift, or a dining table bases with less than 12 cm high. IMENSIONS WINNCARE France recommends using a patient lift or a dining table with bases no higher than 12 cm. -
Page 7: Compatible Mattresses
Respect the prescribed mattress dimensions: 80 cm slat base width: compatible mattress with a width of 82 cm. Warning: Incompatible mattresses can create hazards. We recommend using ALOVA Junior mattresses from WINNCARE France. ELECTRICAL CONNECTION DIAGRAM REMOTE CONTROL KALIN EMOTE CONTROL LOCATION ON THE BED... -
Page 8: Remote Control Functions
WINNCARE France The remote control and its cable are protected in a lockable box when the bed is not in use and the bed's functions are not modified. This prevents any risk of accidental activation and suffocation. Remote control location EMOTE CONTROL FUNCTIONS KALIN remote control functions are described in the instructions for use. -
Page 9: Wall Stop A551-00
WINNCARE France Warning: Incompatible side barriers can cause hazards. The wooden barriers are designed to be used on WINNCARE France beds with a length of 1700 mm, with panels provided with the necessary reservations for their installation. The barrier was tested in accordance with the test method of the park bed standard NF EN 50637 :2017. -
Page 10: Troubleshooting Guide
WINNCARE France ▪ Ensure that the height of the handle is correctly adjusted in relation to the patient. ▪ Keep the handle away from sources of high heat such as cigarettes or open flames and observe the environmental conditions specified here. - Page 11 WINNCARE France Remove the rear cover The infrared remote control Check batteries is not powered or is not Reverse the small contactor on top of the connected to the receiver. remote control Check the correct connection of the electrical One or more cables are not...
- Page 12 WINNCARE France An external element blocks Remove the blocking element the mechanism The putting on wheels is not Press the remote control to put the bed on its carried out or incomplete wheels until the movement stops Directional wheel hinders...
-
Page 13: Maintenance
WINNCARE France MAINTENANCE Warning: No maintenance should be done in the presence of a patient on the bed. DENTIFICATION NSTRUCTIONS FOR DISMANTLING THE MOTORS Warning: Unplug the device before dismantling. Dismantle when the bed is empty or in the side position. - Page 14 WINNCARE France Between two maintenance sessions and at least once a year, the following should be carried out: Verification that the electrical leads are connected all along the metal jambs to prevent shearing of these leads when the variable height is being activated.
-
Page 15: Medical Beds Control Sheet
WINNCARE France EDICAL BEDS CONTROL SHEET - 15 -... -
Page 16: Cleaning And Disinfection
WINNCARE France LEANING AND DISINFECTION High pressure cleaning, or jet cleaning is prohibited. Unplug the mains lead. Check that all the electrical parts are connected. All the sockets of the supply box must be used or filled, otherwise its watertightness is not guaranteed. -
Page 17: Scrapping
WINNCARE France at n ° +33 (0)4.66.02.15.15. WINNCARE France also encourages you to limit the possible effects of waste on the environment and public health in all other countries, by complying with local selective sorting laws, separating waste from Electrical and Electronic Equipment (EEE), as well as batteries and accumulators. -
Page 18: Warranty
WINNCARE France WARRANTY All of our products carry a warranty against any manufacturing defect, provided the normal conditions for use and maintenance are complied with. Labour costs due to changes in structures or parts under warranty are not taken into account. - Page 19 WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE WINNCARE France 4, Le Pas du Château 85670 SAINT-PAUL-MONT-PENIT FRANCE Tél. : +33 (0)4.66.02.15.15 Fax. : +33 (0)4.66.02.15.00 Email: contact@winncare.fr www.winncare.com...
