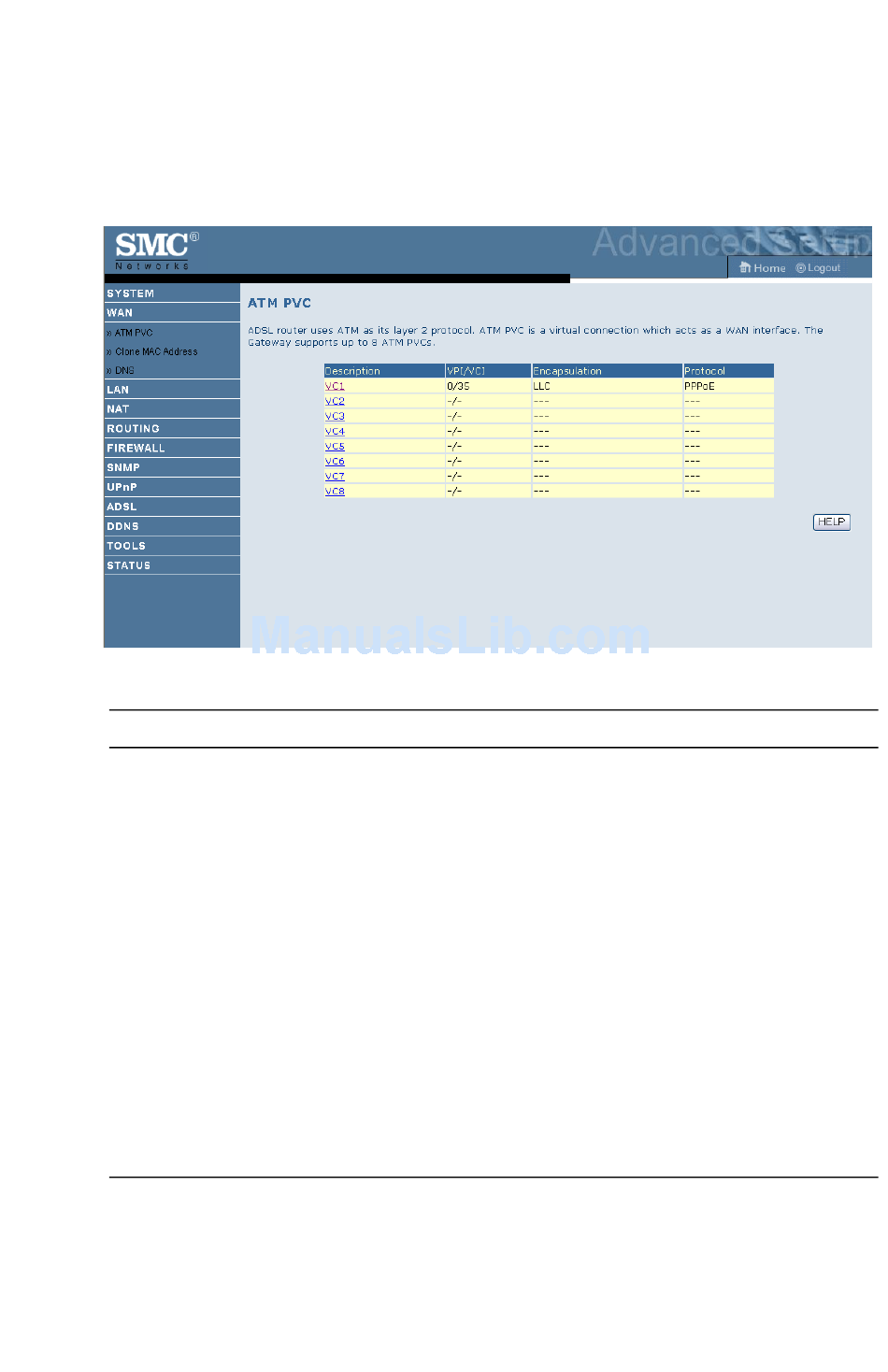

ATM PVC
Click on VC(1 - 8). Enter the ATM (Asynchronous Transfer Mode) virtual
connection parameters. See "ATM Interface" on the following page.
Parameter
Description
VPI/VCI
Encapsulation
Protocol
Description
Click on the VC to set the values for the connection.
Virtual Path Identifier (VPI) and Virtual Circuit Identifier
(VCI).
Specifies how to handle multiple protocols at the ATM
transport layer.
•
VC-MUX: Point-to-Point Protocol over ATM Virtual
Circuit Multiplexer (null encapsulation) allows only
one protocol running per virtual circuit with less
overhead.
•
LLC: Point-to-Point Protocol over ATM Logical Link
Control (LLC) allows multiple protocols running over
one virtual circuit (using slightly more overhead).
Protocol used for the connection . See "Parameters Setting"
on page 4-5 for connection settings.
A
S
DVANCED
ETUP
4-21
