R1 T1
1 2 3 4 5 6
6x2 Jack

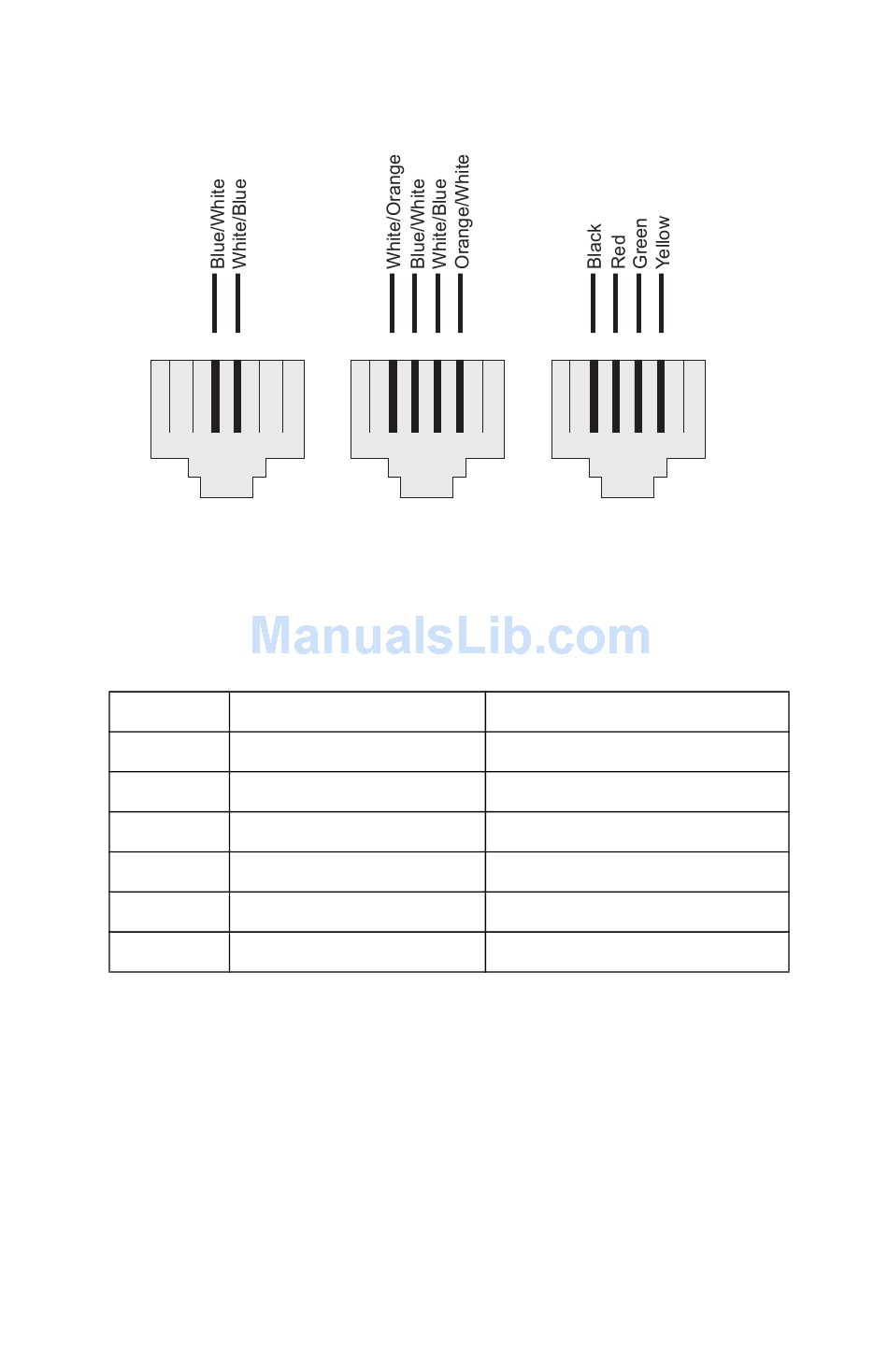

Figure B-3. RJ-11 Pinouts
Pin
Signal Name
1
Not used
2
Line 2 Tip
3
Line 1 Ring
4
Line 1 Tip
5
Line 2 Ring
6
Not used
T2
R1 T1 R2
1 2 3 4 5 6
6x4 Jack
T = Tip
R = Ring
Wire Color
Black or White/Orange
Red or Blue/White
Green or White/Blue
Yellow or Orange/White
ADSL C
T2
R1 T1 R2
1 2 3 4 5 6
6x4 Jack
ABLE
B-5
