C
ABLES
Each wire pair must be attached to the RJ-45 connectors in a specific
orientation. The following figure illustrates how the pins on an Ethernet
RJ-45 connector are numbered. Be sure to hold the connectors in the same
orientation when attaching the wires to the pins.

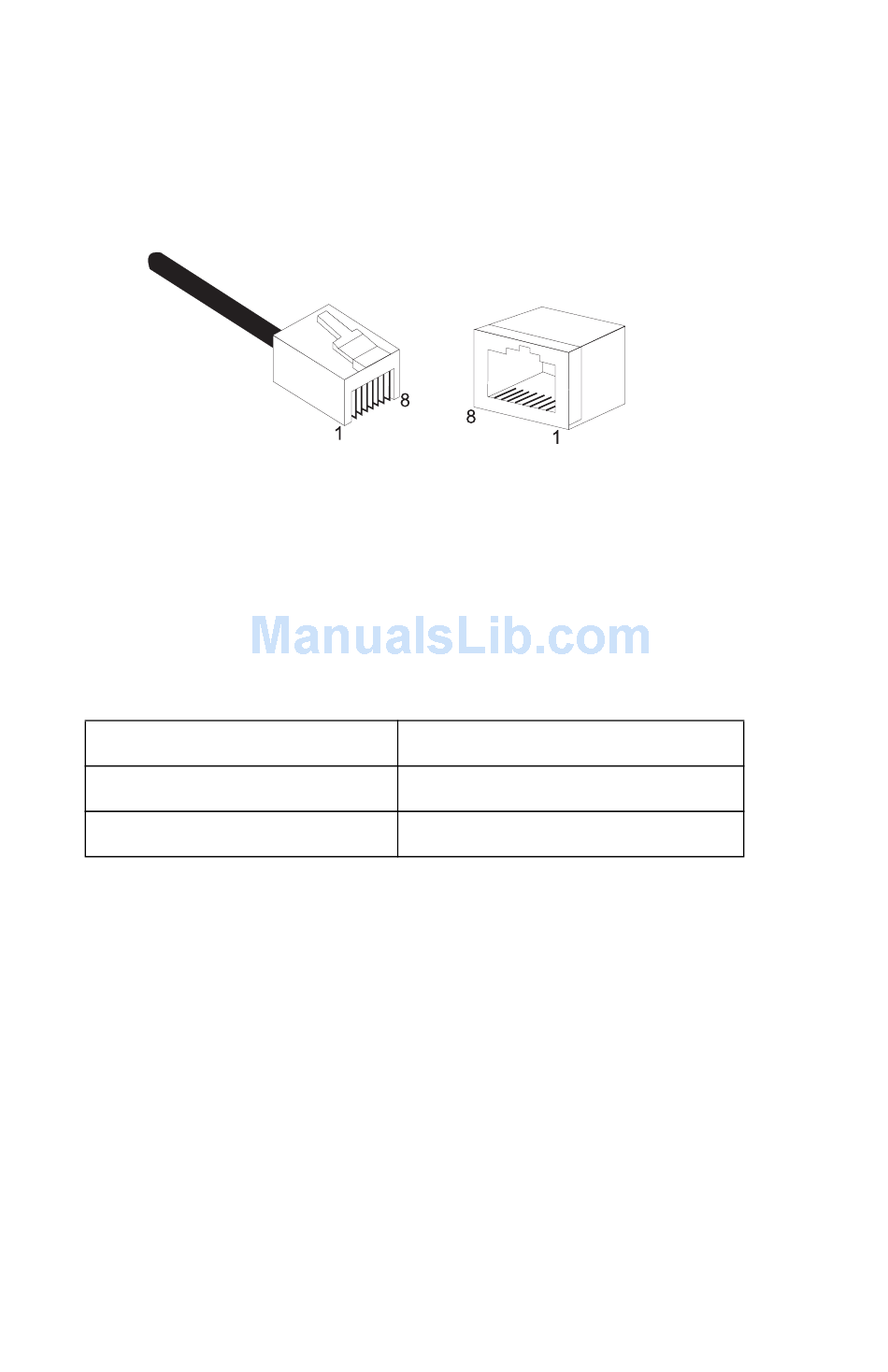

Figure B-1. RJ-45 Ethernet Connector Pin Numbers
RJ-45 Port Connection
Use the straight-through CAT-5 Ethernet cable provided in the package to
connect the Barricade ADSL Router to your PC. When connecting to
other network devices such as an Ethernet switch, use the cable type
shown in the following table.
Attached Device Port Type
MDI-X
MDI
B-2
Connecting Cable Type
Straight-through
Crossover
