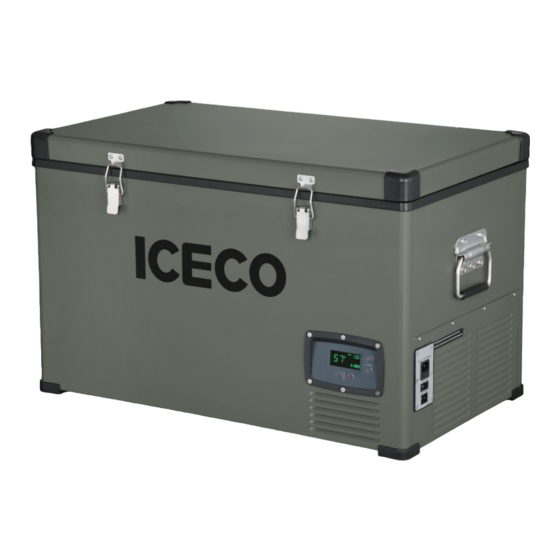

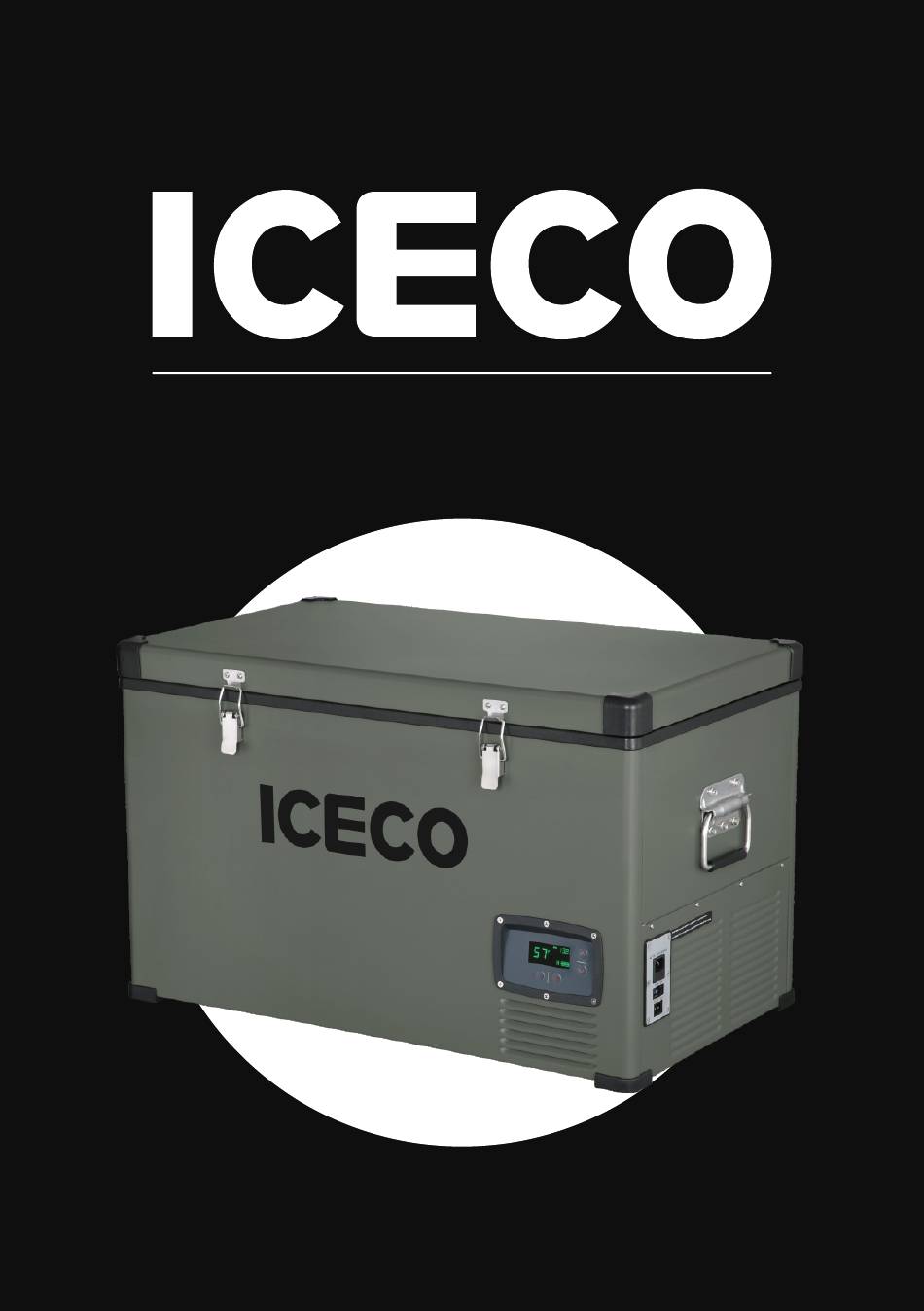

- Page 1 VL60/74S Please email us at: official@icecofreezer.com...
-
Page 2: Table Of Contents
Catalogue - - - - - - - - - - - - - - - - - - - - - - - What's Inside - - - - - - - - - - - - - - - - - - - - - - - - - - - Operation - - - - - - - - - - - - - - Care And Maintenance... -
Page 3: What's Inside
What's Inside Refrigerator x1 Wired Basket x2 6 Feet 110V AC Wall 8 Feet 12/24V Outlet Cable x1 DC Cigarette Lighter Plug Cable x1 MODEL VL60S VL74S 693×401×584 mm 820×493×498 mm External dimensions (LxWxH) (27.3x15.8x23 inch) (32.3x19.5x19.7 inch) Net weight 24.0 kg (52.9 lbs) -
Page 4: Operation
Operation Temp. Setting UP Temp. Setting DOWN Power (Press & Hold to turn on/off) Mode Button... - Page 5 2.1 Temperature Compensation Mode In standby mode (fridge turned off but plugged into power), press and hold Button D for 3 seconds, with "F1/F2/F3" flashing, press Button D to switch between F1, F2 and F3 to set the Temperature Compensation Mode. NOTICE: Please adjust under the guidance of customer service.
- Page 6 2.2 Switch Between °C to °F With the fridge standby (plug-in, without pressing Power Button C to turn on), press and hold Button D for 3 seconds to enter adjustment mode. Press Button D for times, with "F/C" flashing, press Button A/B to switch between Celsius &...
- Page 7 2.3 Setting Temperature After the fridge turned on, the fridge's CURRENT interior temperature reading will appear on the display, as a solid/non-flashing number. To change the fridge's set temperature: Press Button D with the number flashing; press either the Temperature UP (A) or Temperature DOWN (B) Button to adjust the fridge's SET temperature.
- Page 8 2.4 MAX & ECO Mode After the fridge turned on(Press & Hold C/Power Button), you can short press Mode Button D with "MAX/ECO"flashing, press Button A/B to switch between MAX or ECO compressor speed for the fridge.
- Page 9 2.5 Triple Battery Protection Operation After the fridge turned on, press Mode Button D with "L/M/H" flashing,press Button A/B to adjust the level of the battery protection(L for LOW,M for MEDIUM,H for HIGH). NOTICE: Details of Battery Protection Mode could be found in Page 14.
-
Page 10: Care And Maintenance
Care And Maintenance 3.1 Cleaning Please use a wet cloth and warm water mixed with gentle non-abrasive detergents to clean the interior and exterior of your fridge. 3.2 DOs and DON'Ts Please power off and unplug the unit before cleaning Please use non-abrasive detergent to cleaning the interior/exterior of the fridge Please don't scrap the interior of the fridge to... -
Page 11: Error Codes & Solutions
Error Codes & Solutions Description Code The DC voltage is below the protection settings and the battery protection mode is activated. The cooling fan is over-loaded with more than 1A of current. Motor start error The motor of compressor is blocked or the pressure difference in the refrigeration system is too high. - Page 12 Solutions If this error code appears when the fridge is operating on 12V DC, please try to lower the battery protection setting and see if the error is resolved. The battery protection mode may be triggered prematurely on certain vehicles due to small wiring imperfections, contributing to a measured DC voltage drop at compressor start-up.
-
Page 13: Warranty & Return Policy
Warranty & Return Policy 30 days refund guarantee upon receiving. 5 years warranty on the compressor. 1 year warranty for other parts or accessories. For returns or exchanges, please call us, or fill out the following return and exchange registration form in the package as a proof of return. -
Page 14: Troubleshooting (Q & A)
Troubleshooting (Q & A) 1. Heat resistance & water resistance Heat resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55 °C(131 °F). Weather Proof ICECO refrigerators can operate under light rain conditions. Please keep the vents above clear of water, and please add some clearances to the bottom of the fridge if the ground is wet. - Page 15 2. How long can the ICECO refrigerator keep the temperature after powering off? The following data only represented the result of the lab experiment with empty box. Everything is based on the actual situation. Insulation Performance Model Insulation Test Ambient temperature of 25°C (77°F)，...
- Page 16 4. What should I do if the refrigerator is upside down when it is delivered? Please leave your refrigerator upright for 24 hours to allow the compressor lubricant to resettle before powering on the fridge. Otherwise it may contribute to certain operation abnormalities.
- Page 17 For example, when you switch to a LOW MODE, the battery voltage is under 9.6 volts, the refrigerator will automatically cut the power OFF; The refrigerator will start again till the battery voltage reached back to 10.9 volts. 6. What is the power draw in max/ fast cooling mode? Electrical Electrical...
- Page 18 7. Why is there a temperature difference (between the actual temperature of the refrigerator and the set temperature)? Because of the sinking nature of cold air, the different temperatures may exist in different locations in the refrigerator (the temperature of the bottom will be the lowest).
-
Page 19: Safety Instructions
Safety Instruction SAFETY INSTRUCTIONS Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have. - Page 20 ！ Do not leave the refrigerator unattended in uncovered, outdoor areas exposed to the elements. ！ Do not use this appliance near direct heatsources, such as an open flame or radiator. ！ Do not place open containers of liquid inside the fridge. ！...
- Page 21 WARNING! ！ Please keep the fridge in a well ventilated area. ！ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ！ Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
- Page 22 ！ Do not touch the compressor or the condenser when the fridge is operating. They may be very hot. ！ When setting up the appliance, ensure the supply cord is not trapped or damaged. Further information is provided on the technical data label inside the product.
- Page 23 3. This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
- Page 24 Cooler Than A Cooler...
