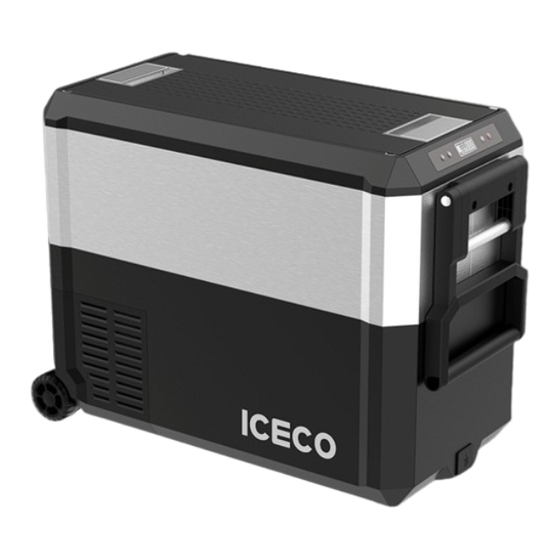

- Page 1 JP40/50 PRO Please email us at: official@icecofreezer.com...
-
Page 2: Table Of Contents
Catalogue - - - - - - - - - - - - - - - - - - - - - - Supply Details - - - - - - - - - - - - - - - - - - - - - - - - - - - Operation - - - - - - - - - - Cleaning And Maintenance... -
Page 3: Supply Details
Supply Details Refrigerator x1 Wire Basket x1 8.2 Feet 12/24V 6 Feet 110V AC Wall DC Cigarette Outlet Cable x1 Lighter Plug Cable x1 MODEL JP40 PRO JP50 PRO 28.5x13.8x18 inch 28.5x13.8x21 inch Dimensions LxWxH 725x350x458 mm 725x350x533 mm 38.4 lbs 40.8 lbs Weight 17.4 kg... -
Page 4: Operation
2 Operation °F ECO MAX 12.9 Power (Press & Hold to turn on/of f ) Compressor Speed(MAX/ECO Mode) Temp. Setting UP Temp. Setting DOWN... - Page 5 2.1 Setting Temperature After the fridge turned on, press “ ” or “ ” to raise or low the set temperature. Press & hold “ ” or “ ” to linear adjust the temperature.
- Page 6 2.2 MAX & ECO Mode ECO MAX After the fridge turned on, press & hold “ ” for 2 seconds. Fridge will enter the setting mode. Press the “ ” to adjust the compressor ef ficiency and the corresponding icon (MAX, ECO) on the display board will be FLASHING, press the “...
- Page 7 2.3 Battery Protection When enter the fridge setting mode, press the “ ” to adjust the battery protection level and the corresponding icon (H, M, L) on display board will be FLASHING. Press the “ ” or “ ” to switch dif ferent level. Wait 5 seconds for the system finish the level change.
- Page 8 2.4 Switch Between °C and °F °C °F When enter the fridge setting mode, press the “ ” to adjust the temperature scale and the corresponding icon (°C, °F) on display board will be FLASHING, press the “ ” or “ ” to switch dif ferent scale.
- Page 9 2.5 UV Sterilizer Settings After the fridge turned on, the UV light will work automatically. The UV light will finish work after 30 minutes. When the lid opened the UV light will turn of f immediately. If want to cancel the UV sanitizing function. After the fridge turned on, press &...
- Page 10 2.6 Alarm For Lid Not Closed Properly This icon will flash if lid not closed completely. When the refrigerator door is opened continuously for more than 1 minute, the fridge will ring, and the refrigerator will display the following pattern to notice the user to close the door.
-
Page 11: Cleaning And Maintenance
Cleaning And Maintenance 3.1 Cleaning Always unplug the fridge before cleaning the fridge. You can clean the interior and exterior of the fridge by using warm water, mixed with a gentle non-abrasive detergent. You may use a soft sponge, or micro fiber cloth. - Page 12 3.2 Danger Behavior Use pointed objects to scrape, or defrost ice. Use abrasive detergents to clean. Use heavy duty sponges (due to scratching). Clean the fridge with running water or pressure washer. Clean the fridge without power input covers secured. 3.3 USB Connector NOTICE: USB connector only takes ef fect when charging in DC power cord.
-
Page 13: Error Codes & Solutions
Error Codes & Solutions Description Code The DC voltage is under the protection setting and the battery protection mode is activated. The cooling fan overloads with more than 1A of current. Motor start error The motor of compressor is blocked or the pressure dif ference in the refrigeration system is too high. - Page 14 Solutions If this error code appears when the fridge is operating on 12V DC, please try to lower the battery protection setting and see if the error is resolved. The battery protection mode may be triggered prematurely on certain vehicles due to small wiring imperfections, contributing to a measured DC voltage drop at compressor start-up.
-
Page 15: Warranty & Return Policy
Warranty & Return Policy 30 days refund guarantee upon receiving. 5 years warranty on the compressor. 1 year warranty for other parts or accessories. For returns or exchanges, please call us, or fill out the following return and exchange registration form in the package as a proof of return. -
Page 16: Troubleshooting (Q & A)
Troubleshooting (Q & A) 1. Heat resistance & water resistance Heat resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55 °C(131 °F). Weather Proof ICECO refrigerators can operate under light rain conditions. Please keep the vents above clear of water, and please add some clearances to the bottom of the fridge if the ground is wet. - Page 17 2. Why did it change back to the original temperature after setting the temperature? The Solid/Non-Flashing number on the display is the CURRENT interior temperature. The Flashing number is your SET temperature after adjustment. The compressor will shut of f when the SET temperature is reached.
- Page 18 4. What is the function of triple battery protection? How do they work? The triple battery protection is designed to prevent over-discharge and battery depletion. When the measured DC voltage is below the set value, the compressor is shut off to prevent battery depletion.
- Page 19 5. What is the power draw in max/ fast cooling mode? Electrical Electrical Model Model Power Power GO12 JP42 VL35 GO20 Series JP Series VL Series VL45 ProS VL60 ProS VL75 ProD VL90 ProD JP40 Pro JP50 Pro This data is only suitable for laboratory testing, and the actual power is subject to actual conditions.
- Page 20 6. Why is there a temperature dif ference (between the actual temperature of the refrigerator and the set temperature)? Because of the sinking nature of cold air, the dif ferent temperatures may exist in dif ferent locations in the refrigerator (the temperature of the bottom will be the lowest).
-
Page 21: Safety Instructions
Safety Instruction SAFETY INSTRUCTIONS Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have. - Page 22 ！ Do not leave the refrigerator unattended in uncovered, outdoor areas exposed to the elements. ！ Do not use this appliance near direct heatsources, such as an open flame or radiator. ！ Do not place open containers of liquid inside the fridge. ！...
- Page 23 WARNING! ！ Please keep the fridge in a well ventilated area. ！ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ！ Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
- Page 24 ！ Do not touch the compressor or the condenser when the fridge is operating. They may be very hot. ！ When setting up the appliance, ensure the supply cord is not trapped or damaged. Further information is provided on the technical data label inside the product.
- Page 25 3. This appliance is intended to be used in household and similar applications such as staf f kitchen areas in shops, of fices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments;...
-
Page 26: Protective Cover
Protective Cover Care Instructions Clean the fabric with a soft cloth and a mix of soft detergent and warm water - do not use bleach or any abrasive cleaners. Do not dry in direct sunlight. Available For JP40 Pro / JP50 Pro... - Page 27 JP40 Pro Open the flexible zipper JP50 Pro...
- Page 28 Cooler Than A Cooler...
