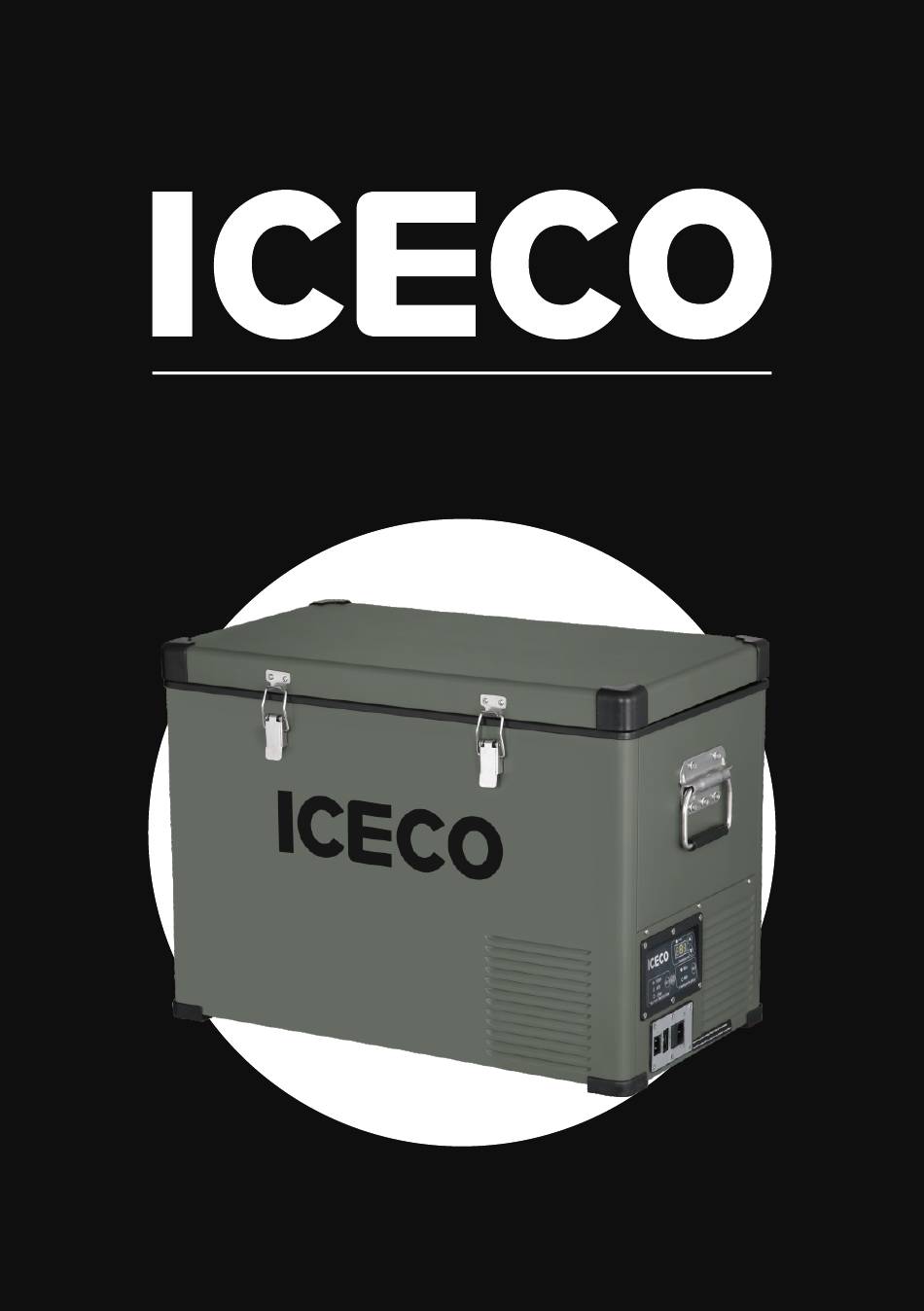

- Page 1 VL45S Please email us at: official@icecofreezer.com...
-
Page 3: Table Of Contents
Catalogue - - - - - - - - - - - - - - - - - - - - - - - What's Inside - - - - - - - - - - - - - - - - - - - - - - - - - - - Operation - - - - - - - - - - - - - - Care And Maintenance... -
Page 4: What's Inside
Refrigerator x1 Wired Basket x2 6 Feet 110V AC Wall 8 Feet 12/24V Outlet Cable x1 DC Cigarette Lighter Plug Cable x1 MODEL VL45S 696×401×488 mm External dimensions (LxWxH) ( 27.4x15.8x19.3 inch) Net weight 23.0 kg (50.7 lbs) Storage volume... -
Page 5: Operation
Operation Battery Protection Setting (DC only) Power (Press & Hold to turn on/off) Compressor Speed (MAX / MIN Mode) Temp. Setting UP Temp. Setting DOWN... - Page 6 2.1 MAX & MIN Mode After the fridge turned on (Press & Hold B / Power Button), you can press the SET Button C to switch between MAXIMUM or MINIMUM compressor speed for the fridge. 2.2 Switch Between °C to °F After the fridge turned on, press and hold Botton C &...
- Page 7 2.3 Setting Temperature After the fridge turned on, the fridge's CURRENT interior temperature reading will appear on the display, as a solid / non-flashing number. To change the fridge's set temperature: Use Temperature Up(D) or Temperature Down(E) Buttons to change the fridge's set temperature. The SET temperature will appear as a FLASHING number, and after the temperature is SET, the display will return to showing the...
- Page 8 2.4 Triple Battery Protection Operation After the fridge turned on, Press A / SET Botton to adjust the fridge's low battery protection level pre-sets. NOTICE: Details of Battery Protection Mode could be found in Page 12.
-
Page 9: Care And Maintenance
Care And Maintenance 3.1 Cleaning Please use a wet cloth and warm water mixed with gentle non-abrasive detergents to clean the interior and exterior of your fridge. 3.2 DOs and DON'Ts Please power off and unplug the unit before cleaning Please use non-abrasive detergent to cleaning the interior/exterior of the fridge Please don't scrap the interior of the fridge to... -
Page 10: Error Codes & Solutions
Error Codes & Solutions Description Code The DC voltage is below the protection settings and the battery protection mode is activated. The cooling fan is over-loaded with more than 1A of current. Motor start error The motor of compressor is blocked or the pressure difference in the refrigeration system is too high. - Page 11 Solutions If this error code appears when the fridge is operating on 12V DC, please try to lower the battery protection setting and see if the error is resolved. The battery protection mode may be triggered prematurely on certain vehicles due to small wiring imperfections, contributing to a measured DC voltage drop at compressor start-up.
-
Page 12: Warranty & Return Policy
Warranty & Return Policy 30 days refund guarantee. 5 years Compressor Warranty. 1 year General Warranty. For returns or exchanges, please fill out the following return and exchange registration form in the package as a proof of return. All materials must be returned in the original condition and packaging. -
Page 13: Troubleshooting (Q & A)
Troubleshooting (Q & A) 1. Heat resistance & water resistance Heat resistance ICECO refrigerators are engineered to operate at an ambient temperature of up to 55 °C(131 °F). Weather Proof ICECO refrigerators can operate under light rain conditions. Please keep the vents above clear of water, and please add some clearances to the bottom of the fridge if the ground is wet. - Page 14 2. How long can the ICECO refrigerator keep the temperature after powering off? The following data only represented the result of the lab experiment with empty box. Everything is based on the actual situation. Insulation Performance Model Insulation Test Ambient temperature of 25°C (77°F), refrigerator temperature from -18°C...
- Page 15 4. What should I do if the refrigerator is upside down when it is delivered? Please leave your refrigerator upright for 24 hours to allow the compressor lubricant to resettle before powering on the fridge. Otherwise it may contribute to certain operation abnormalities.
- Page 16 For example, when you switch to a LOW MODE, the battery voltage is under 9.6 volts, the refrigerator will automatically cut the power OFF; The refrigerator will start again till the battery voltage reached back to 10.9 volts. 6. What is the power draw in max/ fast cooling mode? Electrical Electrical...
- Page 17 7. Why is there a temperature difference (between the actual temperature of the refrigerator and the set temperature)? Because of the sinking nature of cold air, the different temperatures may exist in different locations in the refrigerator (the temperature of the bottom will be the lowest).
-
Page 18: Safety Instructions
Safety Instruction SAFETY INSTRUCTIONS Please read the user manual and safety instructions carefully before using the appliance. By ignoring the safety instructions, the manufacturer cannot be held responsible for the damage. The use of accessories that are not recommended by manufacturer can cause injuries and will invalidate any warranty that you may have. - Page 19 ！ Do not leave the refrigerator unattended in uncovered, outdoor areas exposed to the elements. ！ Do not use this appliance near direct heatsources, such as an open flame or radiator. ！ Do not place open containers of liquid inside the fridge. ！...
- Page 20 WARNING! ！ Please keep the fridge in a well ventilated area. ！ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ！ Do not use electrical devices inside the food storage compartments of the appliance, unless approved/recommended by the manufacturer.
- Page 21 ！ Do not touch the compressor or the condenser when the fridge is operating. They may be very hot. ！ When setting up the appliance, ensure the supply cord is not trapped or damaged. Further information is provided on the technical data label inside the product.
- Page 22 3. This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
- Page 24 Cooler Than A Cooler...
