ASSEMBLY INSTRUCTIONS

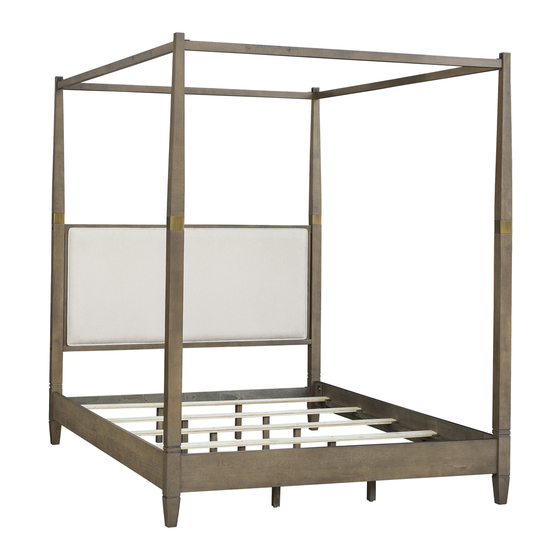

BAYLOR QUEEN BED
Please read below before assembly
Assemble the product on a flat, soft surface such as a carpet or cloth to prevent scratching
the finish.
Do not discard any content until assembly is complete to avoid accidentally discarding small
parts or hardware.
Take out all parts and hardware from box.
Failure to follow these instructions may cause the bolts to misalign during assembly.
DISCLAIMERS:
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE. SELLER IS NOT LIABLE
FOR ANY DAMAGES RESULTING FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.
BOLTS MAY LOOSEN DURING NORMAL EVERYDAY USE. THEY SHOULD BE INSPECTED AT LEAST
EVERY 3 MONTHS AND RE-TIGHTENED AS NEEDED TO PREVENT DAMAGE OR INJURY, AND
ENSURE STABILITY.
PEOPLE NEEDED
TOOLS REQUIRED (NOT INCLUDED)
PHILLIPS HEAD SCREW DRIVER
MADISON
600
lbs per bed
WEIGHT LIMIT
45
Minutes
ESTIMATED TIME
RUBBER MALLET
R
Page 1 of 19
Advertisement
Related Manuals for Madison Park BAYLOR QUEEN BED
Summary of Contents for Madison Park BAYLOR QUEEN BED
- Page 1 ASSEMBLY INSTRUCTIONS MADISON BAYLOR QUEEN BED Please read below before assembly Assemble the product on a flat, soft surface such as a carpet or cloth to prevent scratching the finish. Do not discard any content until assembly is complete to avoid accidentally discarding small parts or hardware.
-
Page 2: Parts List
PARTS LIST 1 PC HEADBOARD PANEL 1 PC RIGHT HEADBOARD POST 1 PC LEFT HEADBOARD POST 1 PC RIGHT FOOTBOARD POST 1 PC LEFT FOOTBOARD POST 1 PC HEADBOARD STRETCHER 2 PCS SIDE RAIL 1 PC FOOTBOARD 2 PCS CANOPY LONG RAIL 2 PCS CANOPY SHORT RAIL 1 PC... - Page 3 PARTS LIST Page 3 of 19...
-
Page 4: Hardware List
HARDWARE LIST BOLT - Ø5/16’’ x 1-3/4" 6 PCS BOLT - Ø5/16’’ x 2-3/4" 6 PCS BOLT - Ø1/4'' x 1/2" 8 PCS BOLT - Ø1/4'' x 1-1/4" 4 PCS STUD BOLT - Ø5/16" x 3-1/2'' 8 PCS LARGE LOCK WASHER - Ø5/16" x 1/2" 12 PCS 12 PCS LARGE FLAT WASHER - Ø5/16"... - Page 5 STEP 1 LOCATE HARDWARE PER BELOW DRAWING CARTON A - PART INSIDE : 1,6,8,12,13 HARDWARE CARTON B - PART INSIDE : 2,3,4,5,7,9,10,11 Page 5 of 19...
- Page 6 STEP 2 3 PCS 3 PCS 3 PCS 1 PC NOTE: PLEASE FLIP THE FRONT FACE UP Page 6 of 19...
- Page 7 STEP 3 1 PC 1 PC 1 PC 1 PC 1 PC NOTE: BACK OF HEADBOARD Page 7 of 19...
- Page 8 STEP 4 1 PC 3 PCS 1 PC 4 PCS 4 PCS 1 PC NOTE: BACK OF HEADBOARD Page 8 of 19...
- Page 9 STEP 5 2 PCS 1 PC 2 PCS 2 PCS 1 PC NOTE: BACK OF FOOTBOARD Page 9 of 19...
- Page 10 STEP 6 2 PCS 1 PC 2 PCS 2 PCS 1 PC NOTE: BACK OF FOOTBOARD Page 10 of 19...
- Page 11 STEP 7 4 PCS NOTE: HEADBOARD FRONT STEP 8 4 PCS NOTE: BACK OF FOOTBOARD Page 11 of 19...
- Page 12 STEP 9 STEP 10 Page 12 of 19...
- Page 13 STEP 11 8 PCS 8 PCS 1 PC NOTE: DO NOT FULLY TIGHTEN BOLTS REPEAT FOR ALL 4 CORNERS Page 13 of 19...
- Page 14 STEP 12 4 PCS 1 PC NOTE: FULLY TIGHTEN BOLTS STEP 13 Page 14 of 19...
- Page 15 STEP 14 STEP 15 2 PCS 2 PCS 2 PCS 1 PC ADJUST LEVELERS FOR UNEVEN FLOOR Page 15 of 19...
- Page 16 STEP 16 2 PCS 2 PCS 2 PCS 1 PC STEP 17 8 PCS Page 16 of 19...
- Page 17 STEP 18 6 PCS TAP GENTLY Page 17 of 19...
- Page 18 Page 18 of 19...
- Page 19 Care & Maintenance Do... Wipe up spills immediately. Dust and pick-up spills using a clean, non-colored, lint-free, dry cloth. Use mild non-abrasive soap and water. Don't... Do not put hot items directly on furniture surface. Do not clean furniture with harsh cleansers or polish. Do not place furniture in direct sunlight.
