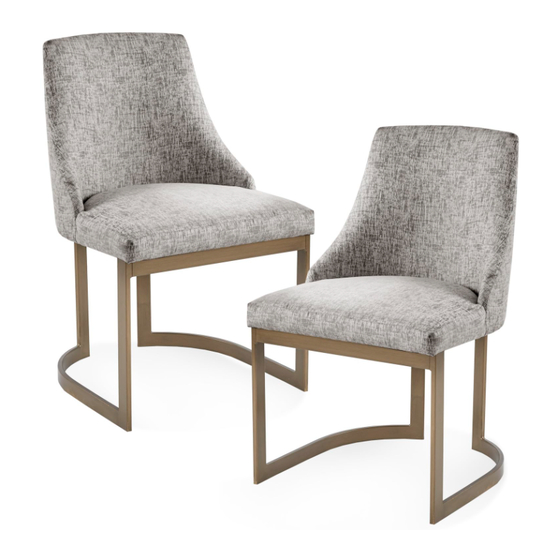

Madison Park Bryce Dining chair Assembly Instructions

Important safety instructions
• Please read carefully all instructions before assembly.
• Keep instructions for future use.
Pre-assembly
• Do not discard any content until assembly is completed to avoid accidentally discarding small parts or hardware.
• Remove all parts and hardware from box along with any protective packaging.
Parts List
Item Description
P1 Seat
P2 Back Support
P3 Top Stretcher
P4 Left Base
Right Base
P5
Hardware List
Description
Item
Long Bolt
H1
(M6x60mm)
Short Bolt
H2
(M6x16mm)
Washers
H3
(Φ6xΦ10)*2mm
Washers
H4
(Φ6xΦ16)*1.5mm
Allen Wrench
H5
M6
DISCLAIMER:
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE. SELLER IS NOT LIABLE FOR ANY DAMAGES RESULTING
FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.
Assembly Procedures:
Step 1. Assemble the chair on a flat, soft surface such as a carpet or cloth to prevent scratching.
Put down the back support(P2) to connect the base, loosely tighten the two bolts(H2) (H3) (H4) with allen wrench(H5) as below.
P2
P4
QTY
1
1
1
1
1
QTY
4
6
2
2
1
P5
Page 1 of 4
ASSEMBLY INSTRUCTIONS
Bryce Dining chair
P2
P4
H5
H2
H3
H4
P5
