MADISON PARK®
Important safety instructions:
• Please carefully read all instructions before assembling.
• For your safety and ease, assembly by two or more adults is recommended.
• Keep instructions for future use.
Pre-assembly:
• Do not discard any contents until after assembly is complete to avoid accidentally discarding small parts or
hardware.
• Remove all parts and hardware from box along with any plastic protective packaging.
Parts List
Description
Item
Legs
P1
P2
Ottoman
Hardware List
Item
Description
H1
P.H Screw M4 x 30mm
DISCLAIMER:
WHEN PROPERLY ASSEMBLED, THIS ITEM IS SAFE FOR INTENDED USE. SELLER IS NOT LIABLE FOR ANY
DAMAGES RESULTING FROM ITEM BEING IMPROPERLY ASSEMBLED AFTER PURCHASE.
Assembly Procedures:
Step 1. Open the top of Ottoman (P2) and take out the legs (P1) from the inner box.
P2
ASSEMBLY INSTRUCTIONS

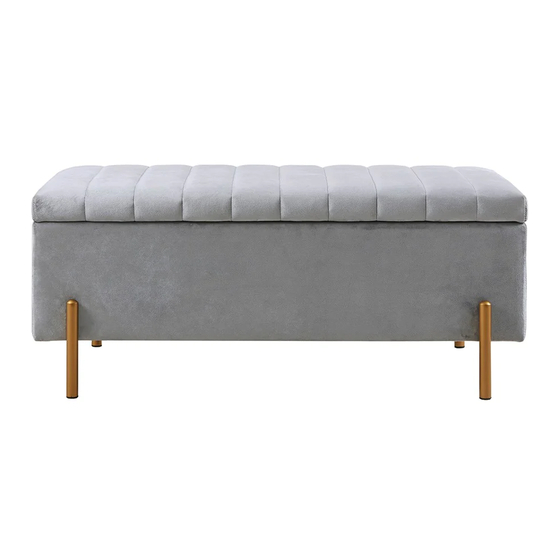

Description: BOYDEN STORAGE OTTOMAN
QTY
2 Pcs
1 Pc
QTY
8 Pcs
------P1
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for Madison Park BOYDEN
Summary of Contents for Madison Park BOYDEN
- Page 1 MADISON PARK® ASSEMBLY INSTRUCTIONS Description: BOYDEN STORAGE OTTOMAN Important safety instructions: • Please carefully read all instructions before assembling. • For your safety and ease, assembly by two or more adults is recommended. • Keep instructions for future use. Pre-assembly: •...
- Page 2 Step 2. Turn the Ottoman (P2) upside down and lay on so ft, flat surface. Position the legs (P1) onto sticker. Align the holes with the mark on the sticker and attach legs with the PH Screw (H 1) to the bottom of Ottoman (P2) by using Screw Driver (Not provided).
